The reason why your doped semiconductor carries a neutral charge is because it has equal number of electrons as there are protons, be it boron doped or phosphorous doped. While the whole crystal remains neutral, by doping you are vastly increasing the conductivity of the semiconductor.

Why n-type and p-type semiconductor is electrically neutral?

But n-type and p-type semiconductors are electrically neutral. This is because that excess negative electron of an n-type crystal is balanced by the positively charged nucleus of an arsenic atom. ... That means, n-type and p-type materials are actually electrically neutral.

Why the n-type semiconductor crystal is electrically neutral even though it contains excess electrons in it?

As the charge on the donor ion is equal and opposite to the charge of the electron, the crystal itself remains electrically neutral.

Why do semiconductors need to be doped?

Semiconductors are doped to generate either a surplus or a deficiency in valence electrons. Doping allows researchers to exploit the properties of sets of elements, referred to as dopants, in order to modulate the conductivity of a semiconductor.

Do doped semiconductors have charge?

Doped semiconductors are electrically neutral. The terms n- and p-type doped do only refer to the majority charge carriers. Each positive or negative charge carrier belongs to a fixed negative or positive charged dopant.

Why extrinsic semiconductors are electrically neutral

Are semiconductors neutral?

So, the holes are created for this condition to take place but the semiconductor is electrically neutral because the number of the electrons and holes are same in magnitude and opposite in sign. Hence a p-type semiconductor is electrically neutral that is uncharged.

How are semiconductors electrically neutral?

The reason why your doped semiconductor carries a neutral charge is because it has equal number of electrons as there are protons, be it boron doped or phosphorous doped. While the whole crystal remains neutral, by doping you are vastly increasing the conductivity of the semiconductor.

How does N-type semiconductor differ from P-type semiconductor?

In a N-type semiconductor, the majority of charge carriers are free electrons whereas the holes are in minority. In a P-type semiconductor, the majority of charge carriers are holes whereas the free electrons are in minority. ... The donor energy level is close to the conduction band in the case of N-type semiconductors.

What is an N-type semiconductor doped with?

An n-type semiconductor is an intrinsic semiconductor doped with phosphorus (P), arsenic (As), or antimony (Sb) as an impurity. Silicon of Group IV has four valence electrons and phosphorus of Group V has five valence electrons.

When a semiconductor is doped with a p-type impurity each impurity atom will be?

Answer : When a p-type impurity is added in a pure semiconductor, a large number of holes are created. Thus, each impurity atom is deficient of one electron and they accept the electrons which are loosely bound to other neighboring atoms. So, each impurity atom acquires negative charges.

When an impurity is doped into an intrinsic semiconductor the conductivity of the semiconductor?

When an impurity (either a p-type atom or an n-type atom) is doped into an intrinsic semiconductor, it increases the number of charge carriers in the intrinsic semiconductor. As conductivity is directly related to the number of charge carriers, the conductivity of a semiconductor increases with doping.

Why is p-type semiconductor negative?

A p-type semiconductor is one with a preponderance of holes; an n-type semiconductor has a preponderance of conduction electrons. The symbols p and n come from the sign of the charge of the particles: positive for holes and negative for electrons.

Why p-type semiconductor is positively charged?

Because an acceptor donates excess holes, which are considered to be positively charged, a semiconductor that has been doped with an acceptor is called a p-type semiconductor; "p" stands for positive. Notice that the material as a whole remains electrically neutral.

What is doped material?

In semiconductor production, doping is the intentional introduction of impurities into an intrinsic semiconductor for the purpose of modulating its electrical, optical and structural properties. The doped material is referred to as an extrinsic semiconductor. ... Doping is also used to control the color in some pigments.

Why is the conductivity of doped n-type semiconductor higher than that of pure semiconductor?

n-type semiconductor contains an increased number of electrons in the conduction band. ... Therefore, Si doped with P has more number of electrons in the conduction band than those in the conduction band in pure Si. Thus, the conductivity of Si-doped with P is higher than that of pure Si.

What type of impurity is added to obtain n-type semiconductor?

To make the n-type semiconductor, pentavalent impurities like phosphorus or arsenic are added. Four of the impurities' electrons form bonds with the surrounding silicon atoms. This leaves one electron free. The resulting material has a large number of free electrons.

What is the difference between n doped and P doped semiconductor?

The impurity added in p-type semiconductor provides extra holes known as Acceptor atom, whereas in n-type semiconductor impurity provides extra electrons and termed as Donor atom. In a p-type semiconductor, the majority carriers are holes, and the minority carriers are electrons.

How do you identify p-type and n-type semiconductors?

The easiest would be judging form the periodic table. If the dopant has more electrons in the outer shell than the semiconductor material, it's going to be n-type, and with less electrons in the outer shell, it's p-type. At least for Group IV semiconductors (Si, Ge).

What is the difference between n-type and p-type semiconductor explain with the help of energy band diagram?

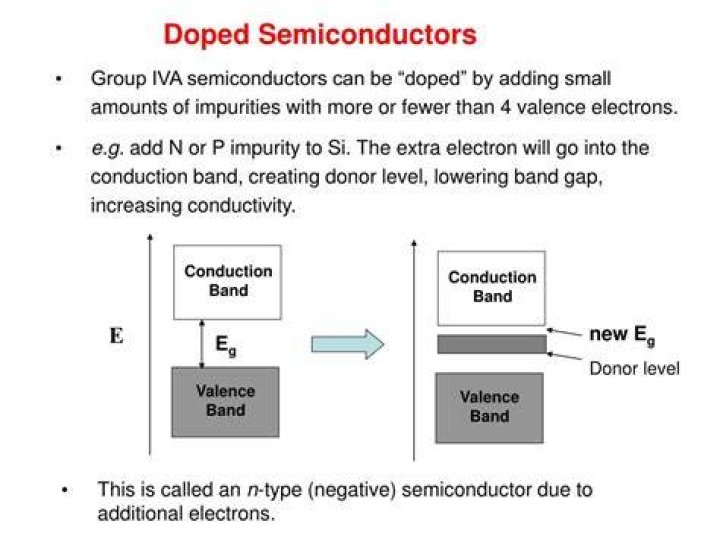

From these energy band diagrams, we note that, in n-type semiconductor the forbidden energy gap is reduce by donore energy state and electrons are majority carriers. In p-type semiconductor, the forbidden energy gap is reduced by acceptor energy state and holes are majority carriers.

Is extrinsic semiconductor electrically neutral?

All extrinsic semiconductors have internal charges that include ionized dopants, electrons, and holes. But at equilibrium they have no net charge and thus are charge neutral.

What type of material is obtained when intrinsic semiconductor is doped with pentavalent impurity?

What type of material is obtained when an intrinsic semiconductor is doped with pentavalent impurity? Explanation: N-type semiconductor is obtained by doping an intrinsic semiconductor with pentavalent impurity atoms.

Why can elemental semiconductors like silicon and germanium not be used for making LEDs?

LEDs are made up of compound semiconductors and not by the elemental conductor because the band gap in the elemental conductor has a value that can detect the light of a wavelength which lies in the infrared (IR) region.

Why charge carriers are not present in depletion region?

The depletion region has only positive ions and negative forms due to the diffusion of carriers across the junction of the pn diode. ...

Is intrinsic semiconductor positively or negatively charged?

Intrinsic semiconductor is electrically neutral.

Why are electron carriers present in p type semiconductors?

Donor impurity atoms have more valence electrons than the atoms they replace in the intrinsic semiconductor lattice. ... This provides excess holes to the intrinsic semiconductor. Excess holes increase the hole carrier concentration (p₀) of the semiconductor, creating a p-type semiconductor.
