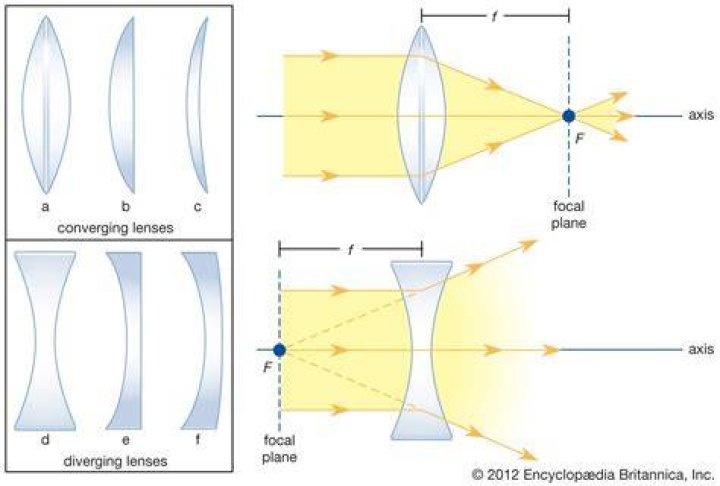

Because a convex lens concentrates the light rays that are incident on it, it is called a converging lens.

Which lens is converging lens and why?

Answer: Convex lens- A convex lens is also called a converging lens because ,when the ray of light passes parallel to the principal axis it converges(meet at a single point),so it's called a converging lens.

Is called converging lens?

Because a convex lens concentrates the light rays that are incident on it, it is called a converging lens.

Is convex lens converging or diverging?

A convex lens or converging lens focuses the light rays to a specific point whereas a concave lens or diverging lens diverges the light rays. ... Concave lenses and convex lenses are often used together which is known as the Concave – Convex lens.

What is converging and diverging lens Class 10?

Complete step-by-step answer: When the light rays bend towards each other after refraction through a lens then the lens is converging. When the light rays bend away from each other after refraction through a lens then the lens is diverging.

Thin Lens Equation Converging and Dverging Lens Ray Diagram & Sign Conventions

What is a diverging lens?

Medical Definition of diverging lens

: a lens that causes divergence of rays : a concave lens. — called also negative lens.

Is converging lens convex or concave?

Rays of light that pass through the lens are brought closer together (they converge). A convex lens is a converging lens. When parallel rays of light pass through a convex lens the refracted rays converge at one point called the principal focus.

Which out of these are converging lens?

It's important to remember that all the parallel rays will definitely converge to a point. However, only in the case of a Convex lens and Concave mirror, the image formed will be a real image that we can project onto a screen. Hence, they are known as converging lens and mirror respectively.

What type of image does a converging lens produce?

A converging lens produced a virtual image when the object is placed in front of the focal point. For such a position, the image is magnified and upright, thus allowing for easier viewing.

Is concave converging or diverging?

The concave lens is a diverging lens, because it causes the light rays to bend away (diverge) from its axis.

How do you know if a lens is converging or diverging?

Whatever the mix of surfaces, if the lens is thicker at its center than its edges it is called a converging lens (having positive focal length). If it is thinner at its center than its edges it is called diverging (having negative focal length). Sometimes they are just called `positive' and `negative'.

Do concave mirrors diverge or converge?

A concave mirror converges light to a focal point. ... A convex mirror diverges light, as does a concave lens.

Is convex lens always converging?

Yes , convex lens always converge light and it is because of the property of the convex lens. In this lens thickness is on the center and it converges all the light that are incident on it. So convex lens always converge light as it has the property of converging light.

Why convex lens is called converging lens and concave lens is called diverging lens?

A convex lens, converges the light rays of a parallel beam to a particular point after refraction through the lens. Hence, a convex lens is called a converging lens. A concave lens diverges the light rays of a parallel beam after refraction through it. Hence a concave lens is also called a diverging lens.

Which mirror is called Converging?

A concave mirror, or converging mirror, has a reflecting surface that is recessed inward (away from the incident light). Concave mirrors reflect light inward to one focal point. They are used to focus light.
