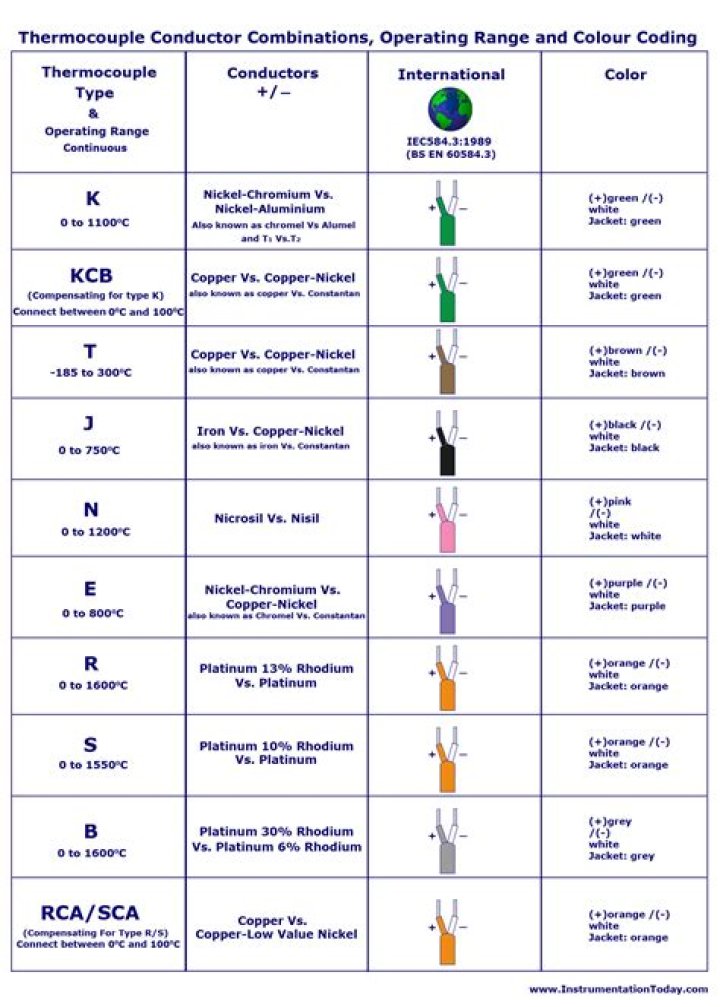

Thermocouple Types: Type J, Type K, Type N, Type T, Type E, Type R, Type S, Type B, Type C. A thermocouple consists of a welded 'hot' junction between two dissimilar metals - usually wires - and a reference junction at the opposite end.

What is J and K type thermocouple?

Whereas a J Type Thermocouple is made up of iron and constantan, K type Thermocouples are composed of a nickel/chromium alloy (chromel) and a nickel/aluminium alloy (alumel) which gives them much better protection against oxidation and acidity than the iron limbs of the Type J.

What is the most common type of thermocouple?

Type J Thermocouple (Most Common): This thermocouple consists of an Iron and a Constantan leg and is perhaps the most common thermocouple in use in the United States. The bare Type J thermocouple may be used in vacuum, reducing, oxidizing and inert atmospheres. Heavier gauge is wire recommended for use above 1000 deg.

What is Type N thermocouple?

Thermocouple Type N Technical Details

Type N is a relativity new thermocouple type that was made to be an alternative to Type K. It has high stability over time but is more costly than type K at similar temperature ranges. Its sensitivity is about 39 µV/°C, slightly lower compared to type K.

What is AK type thermocouple?

A Type K thermocouple refers to any temperature sensor containing Chromel and Alumel conductors, that meets the output requirements as stated in ANSI/ASTM E230 or IEC 60584 for Type K thermocouples. This may be an immersion sensor, a surface sensor, wire or another style of sensor or cable.

Types of Thermocouple

What is thermocouple and types of thermocouple?

A Thermocouple is a sensor used to measure temperature. ... Type J, K, T, & E are “Base Metal” thermocouples, the most common types of thermocouples. Type R, S, and B thermocouples are “Noble Metal” thermocouples, which are used in high temperature applications (see thermocouple temperature ranges for details).

What is J type thermocouple made of?

Type J thermocouple is a very common and general purpose thermocouple. It has smaller temperature range and a shorter lifespan at higher temperatures. It consist of positive leg made of an Iron wire and negative leg made of an Constantan ( Copper-Nickel ) alloy wire.

What is difference between T and K type thermocouple?

Type K thermocouple is used in furnaces with magnetic materials processed while type T thermocouples are used in atmospheres with inert pressures.

What is a Type B thermocouple?

Type B Thermocouple is composed of a positive leg which is 70% Platinum, 30% Rhodium and a negative leg which is 94% platinum, 6% Rhodium. When protected by compacted mineral insulation and appropriate outer sheath, Type B is usable from 600 to 1704°C, (1100 to 3100°F).

What is a Type C thermocouple?

Type C Thermocouples are made from Tungsten Rhenium alloys and designed for extreme high temperatures up to 4,200 F (2315 C). ... The thermocouple materials must be utilized in a hydrogen, inert, or vacuum atmospheres to prevent failure from oxidation.

What is Pt100 thermocouple?

Pt100 thermocouples are a misnomer of two separate types of temperature sensor, a Pt100 resistance thermometer and a thermocouple. Pt100s and thermocouples are two very different technologies both used to measure temperature. A temperature sensor can be one or the other, a sensor cannot be both.

What are K type thermocouples used for?

Uses of K Type Thermocouple

They are mostly used for applications at temperatures above 550 °C up to the maximum working pressure of the thermocouple. Type K is commonly used in nuclear applications because of its relative radiation hardness.

What is J thermocouple?

A thermocouple is made up of of two dissimilar conductors in contact with one another, which produce a voltage when heated. ... The J Type thermocouple (iron–constantan) is a common, general purpose thermocouple with a termperature range of approximately −40 to +750 °C, and sensitivity of 55 µV/°C.

Which thermocouple is used in autoclave?

Autoclave Thermocouple -Type T Duplex.

What is NTC sensor?

NTC THERMISTORS

An NTC thermistor is a temperature sensor that uses the resistance properties of ceramic/metal composites to measure the temperature. Our full spectrum NTC sensors offer many advantages in temperature sensing including miniature size, excellent long-term stability, high accuracy and precision.

How does AJ type thermocouple work?

Thermocouples are made by connecting two dissimilar metal wires together at one end. ... The open end of the wires will have a potential difference between them if the open ends and the connected ends are at different temperatures.

What is thermopile Mcq?

This set of Electrical Measurements & Measuring Instruments Multiple Choice Questions & Answers (MCQs) focuses on “Thermoelectric Transducer”. ... Explanation: The most commonly used thermoelectric transducer is a thermocouple. It measures the change in temperature and converts it into an electrical signal.

What is the difference between RTD and PT100?

There is no difference a PT100 is a version of a RTD (resistance temperature detector). What is an RTD? A resistance temperature detector, also known as an RTD or resistance thermometer, is a type of temperature sensor. ... A PT100 sensor is the most common type of Resistance Thermometer (RTD).

What is difference between RTD and thermocouple?

Most RTDs are limited to a maximum temperature of 1000 degrees Fahrenheit. In contrast, certain thermocouples can be used to measure up to 2700 degrees Fahrenheit. RTDs are superior to thermocouples in that their readings are more accurate and more repeatable.

What is K type?

Type K. Type K (chromel–alumel) is the most common general-purpose thermocouple with a sensitivity of approximately 41 µV/°C. It is inexpensive, and a wide variety of probes are available in its −200 °C to +1350 °C (−330 °F to +2460 °F) range.

What metals are in K type thermocouple?

Composition:- In. K Type Thermocouple positive leg is composed of 90% nic el, 10%chromium and a negative leg is composed of 95% nic el, 2% aluminum, 2% manganese and 1% silicon. These are the most common general purpose thermocouple with a sensitivity of approx 41µV/°C.

What is K type cable?

A thermocouple is an electrical device consisting of two dissimilar electrical conductors forming an electrical junction. A thermocouple produces a temperature-dependent voltage as a result of the thermoelectric effect, and this voltage can be interpreted to measure temperature.
