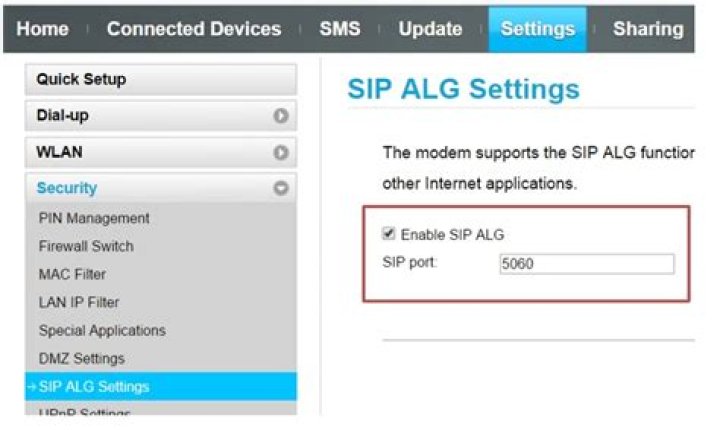

After the test completes click on the 'VoIP' tab and look for 'N' or 'Y' on the 'SIP ALG Firewall' line in the lower white box. If you see "SIP ALG Firewall: Y" then a SIP ALG is active and must be turned off. If you see "SIP ALG Firewall: N" then a SIP ALG is was not detected.

How do I turn off SIP ALG?

In most cases, you will need to sign in to your router with the admin password. Look under its security settings, uncheck SIP ALG, save and reboot your router.
...
Arris BGW210

1. Navigate to 192.168. ...
2. Under the Firewall section, click on Advanced Firewall.
3. Change the Set SIP ALG setting to off.

What is a SIP ALG test?

What is a SIP ALG? In simple terms, it's a networking feature that reads, manipulates and re-writes SIP messages between VoIP devices on your network with private addresses and a VoIP service in the Cloud with a public address.

What is SIP ALG on a router?

(Session Initiation Protocol Application-Level Gateway) A function in a router that allows VoIP packets to traverse the network's firewall. Because Internet-based telephony emerged so quickly, the SIP ALG function was often enabled by default in many consumer-based wireless routers.

Why is SIP ALG bad?

The problem with a SIP ALG is that most SIP packets are already optimized to pass through NATs/firewalls without additional help. Ironically, a SIP ALG can end up interfering with traffic headed for your phone. A SIP ALG can re-write SIP packet headings, which can mangle the delivery process.

What is SIP ALG and Why You Need to Disable It

Is SIP ALG safe?

SIP ALG modifies SIP packets in unexpected ways, corrupting them and making them unreadable. ... Therefore if you are experiencing problems we recommend that you check your router settings and turn SIP ALG off if it is enabled.

How do I enable SIP on Windows?

Step 1: Visit officesip.com and download the latest release of OfficeSIP Server from the download menu at the top right of the webpage. Step 2: Open the downloaded setup file and install the setup as guided by the install wizard. After the installation is complete, run the SIP Server Control Panel.

How do I disable SIP ALG on my Asus router?

1. Go to Advanced Settings / WAN on left side.
2. From the tabs across the top, choose NAT Pass through.
3. Change SIP pass through to "Disable." Hit apply.

How do I disable SIP ALG on Rogers router?

1. Open your browser such as Chrome or Edge, and enter the address 192.168.1.1.
2. When requested, enter your password.
3. Default username and password - username: cusadmin. password: password or [your wifi password]
4. Click on the Basic tab.
5. Click on Gateway Function.
6. Disable SIP ALG.
7. Click on Save Changes.
8. Reboot your router.

Where do I find SIP ALG?

SIP ALG stands for Application Layer Gateway. You will find it on many commercial and residential Firewalls, Routers, or Modems. It is a NAT tool that inspects SIP Messages and transforms the Private IP addresses and Ports to Public IP Addresses and Ports.

What is SIP ALG function?

SIP (Session Initiation Protocol) ALG (Application Layer Gateway) is an application within many routers. It inspects any VoIP traffic to prevent problems caused by firewalls and if necessary modifies the VoIP packets. Routers will often have SIP ALG activated by default.

How do I disable SIP ALG on Linksys router?

1. From the menu, choose Administration > Management.
2. Find the ALG section, then set SIP to Disabled and save your settings. If you're prompted to restart your router, please do so.

What is SIP ALG 8x8?

Additional Information. Disabling SIP-ALG is an essential part of configuring the firewall on your router and optimizing it for 8x8 service. ... In this case, the firewall can close the port between 8x8 and the device endpoint, causing an inability to receive incoming calls.

What is SIP ALG Huawei?

SIP ALG (Application Layer Gateway) is a feature which is enabled by default in most Huawei routers and inspects VoIP traffic as it passes through and modifies the messages on-the-fly. In few situations this is useful, but in most situations SIP ALG can cause problems using the service.

How do I turn off SIP ALG on Verizon router?

The option to disable SIP ALG is not currently available on Verizon routers. If you have a single VOIP phone, you can try to enable the DMZ host from the Firewall section of the G3100 GUI - set the IP to the phone's IP.

How do I disable SIP ALG on ASUS RT ac68u?

1. Log into the router.
2. On the left nav menu, click “WAN”
3. Click the “NAT Passthrough” tab at the top-right.
4. Set “SIP Passthrough” to Disable.
5. Click Apply.
6. Reboot the router.

How do I setup my ASUS router for VOIP?

1. Navigate to Advanced Settings > WAN > NAT Passthrough.
2. Next to RTSP Passthrough, select Disable.
3. Next to SIP Passthrough, select Disable.
4. Click Apply.

What is RTSP passthrough?

Enable NAT Passthrough to allow a Virtual Private Network (VPN) connection to pass through the router to the network clients. ... RTSP: The Real Time Streaming Protocol (RTSP) is a network control protocol designed for use in entertainment and communications systems to control streaming media servers.

How do I set up a SIP account?

1. Open the Phone app .
2. Tap More. Settings.
3. Tap Calls Calling accounts. SIP accounts.
4. Tap Create .
5. Enter the username, password, and server of your new SIP account. ...
6. Tap Save.

What are SIP settings?

Android includes a full SIP protocol stack and integrated call management services that let applications easily set up outgoing and incoming voice calls, without having to manage sessions, transport-level communication, or audio record or playback directly.

How can I get free SIP account?

Linphone.org hosts a free SIP service that allows users to make audio or video calls using SIP addresses via the domain sip.linphone.org. You can create your own sip address, for example "sip:" using the form below, and your friends can call you using this SIP address.

Should UPnP be on or off?

At one point, the FBI and other security experts recommended disabling UPnP for security reasons. ... UPnP stands for “Universal Plug and Play.” Using UPnP, an application can automatically forward a port on your router, saving you the hassle of forwarding ports manually.

What does SPI firewall do?

The SPI Firewall Protection feature keeps track of the state of network connections traveling across it. This feature protects your internet connection against threats and Denial of Service (DoS), which is why it is recommended to keep it enabled.

Does SIP ALG affect TLS?

When SIP traffic is encrypted using TLS, routers cannot perform any manipulation of packets so that devices using TLS are not affected. ... This is why all Wildix users experience less problems while connecting remote devices and an a higher level of security.
