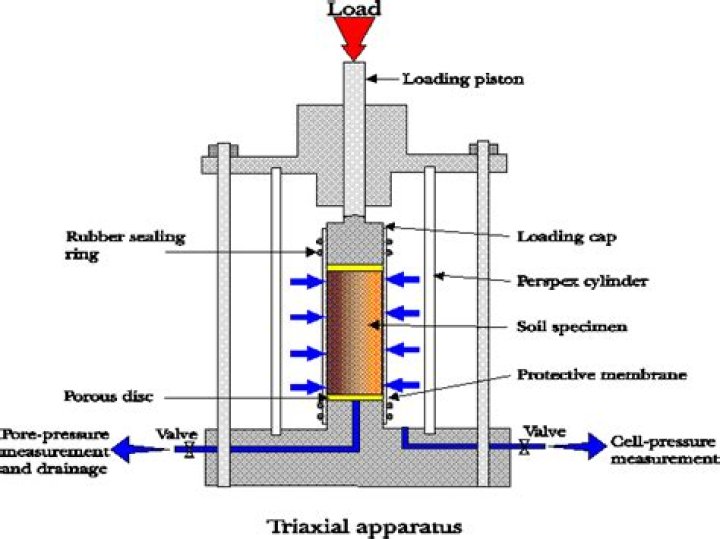

A typical triaxial test involves confining a cylindrical soil or rock specimen in a pressurised cell to simulate a stress condition and then shearing to failure, in order to determine the shear strength properties of the sample. Most triaxial tests are performed on high quality undisturbed specimens.

What does the triaxial test tell you?

A triaxial test is performed on a cylindrical core soil or rock sample to determine its shear strength. The triaxial test attempts to replicate the in-situ stresses (stresses in the original place the soil sample was taken) on the core soil or rock sample.

Why do we do triaxial test?

Typically, Triaxial Testing is used to solve problems of stability by: Determining the shear strength and stiffness of soil when retaining reservoirs of water. Measuring stress/strain behavior. Monitoring the internal response of the particulate medium.

What are the different types of triaxial test?

The types of triaxial test

There are three main types of test based on whether water flow in or out of the specimen is permitted during the consolidation and shear stages of the test: Consolidated Drained (CD), Consolidated Undrained (CU) and Unconsolidated Undrained (UU).

How do you do a direct shear test?

1. Weigh the initial mass of the soil.
2. Measure the height and diameter of the shear box.
3. Place the shear box inside the shearing device.
4. Stabilize the bottom part of the shear box by fixing the 2 screws.

The Triaxial Test

What is unconsolidated undrained test?

A triaxial unconsolidated undrained compression test is used to determine the mechanical properties of soil by subjecting the soil sample to varying levels of stress and drainage conditions. ... The test is generally carried out on three specimens os the same soil sample but subjected to different confining stresses.

What is undrained triaxial test?

The standard consolidated undrained test is compression test, in which the soil specimen is first consolidated under all round pressure in the triaxial cell before failure is brought about by increasing the major principal stress.

How plate load test is conducted?

The plate load test, which is used to determine bearing capacity and settlement, may be carried out by either using a gravity loading or truss loading method. A test pit of the same depth as the foundation and width equal to five times the size of bearing plate is dug in the ground.

Which of the following parameter is determined by triaxial test?

Triaxial test is used to determine the shear strength parameter of soil.

How is the triaxial test useful in engineering design?

Triaxial tests are often used to determine the behavior and strength characteristics of soils. Specimen size can have a significant impact on the measured shear strength. Accordingly, the selected parameters affect the related geotechnical engineering analysis and design.

How UU test is carried out in triaxial testing condition?

For the UU test , the specimens (assumed to be saturated prior to test) are subjected to a confining fluid pressure in a triaxial chamber. ... These tests are generally carried out on three specimens of the same sample subjected to different confining stresses.

What is B value in triaxial test?

Abstract. The B-value, measured after setting up a specimen for triaxial testing, is used for evaluating the degree of saturation of a specimen.

What is meant by triaxial stresses?

Triaxial stress refers to a condition where only normal stresses act on an element and all shear stresses (txy, txz, and tyz) are zero. An example of a triaxial stress state is hydrostatic pressure acting on a small element submerged in a liquid.

How do you calculate triaxial stress?

2.2 Deviator Stress (Principal Stress Difference)–Deviator stress is the difference between the major and minor principal stresses in a triaxial test, which is equal to the axial load applied to the specimen divided by the cross-sectional area of the specimen, as prescribed in the section on calculations.

What is back pressure in triaxial test?

The use of back pressure, common in triaxial testing, has been extended to consolidation testing. ... Use of back pressure causes the air to be dissolved in the water and eliminates the initial compression commonly found in time-compression curves from standard tests.

How do you measure ground bearing capacity?

Bearing capacity is one method of measuring this strength. Researchers can calculate the bearing capacity of soil by determining the limit of contact pressure between the soil and the material placed on it.

How do you test soil bearing capacity?

To compute bearing capacity of soil there are different field tests are available. Field tests like Plate bearing test, Standard penetration test, Pressuremeter test and Field vane shear test are generally used to determine bearing capacity of soil.

What is pile load test?

THE PURPOSE of pile load testing can be either to prove the adequacy of the pile-soil system for the proposed pile design load or to develop criteria to be used for the design and installation of the pile foundation.

Why do we test CU?

To find the shear strength parameters (c', Φ') of soil for effective stress analysis. CU triaxial test is recommended for all types of soil including cohesive and cohesionless soils. Pore pressure evolution with in the soil mass can also be studied in CU tests, along with stress-strain response of soil.

Why there is no unconsolidated drained test?

The unconsolidated-drained test is meaningless because the shear strength test can be performed only after consolidation takes place. Water cannot be drained from an unconsolidated soil mass. So, UU test is meaningless.

Is code for consolidated drained triaxial test?

ASTM D7181 - 20 Standard Test Method for Consolidated Drained Triaxial Compression Test for Soils.

What is drained and undrained soil?

If water is not allowed to flow in or out of the soil, the stress path is called an undrained stress path. ... On the other hand, if the fluids are allowed to freely drain out of the pores, then the pore pressures will remain constant and the test path is called a drained stress path.

What is a shear box test?

A Shear Box is used for direct shear testing of soil specimens to determine the shear strength of a soil sample. These shear box apparatus' divide horizontally, allowing the application of a vertical confining load to the specimen and horizontal shearing stresses to the lower half of the box.

What is UCS test?

Uniaxial compressive strength (UCS) is a key physical test relevant to iron ore crusher design and rock geomechanics for mining. Tests are typically performed on intact lengths of NQ, HQ, or PQ diamond drill core and record the maximum axial load sustained at the point of failure.
