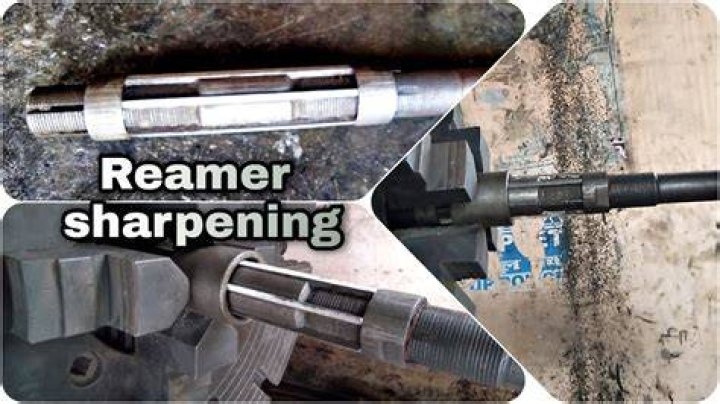

Reamers can be sharpened, but should only be done by a professional tool sharpener. Actual life of a reamer before resharpening or replacing averages 50-70 bores.” The replacement cost of a new reamer may be worth the time and effort you must expend to re-sharpen your existing reamer.

Where would you use a reamer?

A reamer is a tool that is used to widen the size of a pre-existing hole in metal by a small amount to leave smooth sides and edges – removing any burrs or rough edges. It's a pointed round file with a tip that's typically coated in diamond dust to create a hard, durable surface that's great for filing.

Why are reamers so long?

A hand reamer has a longer taper or lead in at the front than a machine reamer. This is to compensate for the difficulty of starting a hole by hand power alone. It also allows the reamer to start straight and reduce the risk of breakage. The flutes may be straight or spiral.

Can you use a reamer by hand?

Using a Hand Reamer. Choose your reamer. ... A hand reamer will have a square shank and depending on the size of the reamer, you'll fit the shank into either a tap wrench or crescent wrench to turn it. A hand reamer allows for great accuracy after considerable practice.

How fast do you run a reamer?

Run at a spindle speed of about 1,800 rpm, the previous reamers took 3 to 4 seconds to finish a hole, whereas cut time for the new tool is 0.14 seconds per bore while running at 4,385 rpm, a 453-sfm cutting speed and a 157-ipm feed rate.

How to sharpen a SAK Reamer (my favorite trick) - Victorinox customize & maintenance 14/20

How accurate are reamers?

When applied correctly a reamer can ream thousands of holes to a high accuracy without any significant loss of performance. A reamer is the most accurate hole forming tool available. If a reamer is used in metalworking it is commonly applied to high precision tolerances of H6/H7 according to ISO.

How much material can you remove with a reamer?

Hand reamers must never be turned by machine power, and must be started true and straight. They should never remove more than 0.001" to 0.005" of material. Hand reamers are available from 1/8" to over 2G in diameter and are generally made of carbon steel or high-speed steel.

Which way do you turn an adjustable reamer?

Turn the adjustment nut on one end of the reamer clockwise and the other nut counterclockwise to set the blades to the desired size. The reamer shaft is tapered and, depending on which direction the nuts are turned, the diameter of the blades increases or decreases.

What is an expansion reamer?

Hand Expansion Reamers are adjustable, multi-fluted end cutting tools used to slightly enlarge previously formed holes to a precise diameter with a smoother finish.

Is reaming expensive?

While this type of tool is typically more expensive than the traditional styles with ground flutes, the ability to renew the tool at the machine provides significant cost savings, because they do not need to be shipped to a sharpening service. Not all high-performance reamers can be adjusted.

Can you use a reamer in a drill press?

Other Uses for the Drill Press. A drilled hole will be accurate to about two thousandths of an inch in diameter. Use a reamer if greater precision is required. A reamer looks like a drill bit but it has no point, so it's not useful for starting holes.

What does H7 mean on a reamer?

Hole and shaft basis

For example, in H7/h6 (a commonly-used fit) H7 represents the tolerance range of the hole and h6 represents the tolerance range of the shaft.

What can cause a reamer to start cutting oversized?

• Size of the tool diameter is too high.
• Cutting speed/feed is too high.
• Spindle or tool runout is not good.
• Cutting chamfer is too short or varying.
• Built-up edge.
• Oil percentage in coolant is too high.
• Pre-drilled hole not aligned to reamer.

What is the difference between a reamer and a drill?

Drilling is performed to originate a hole on a solid surface. Reaming is performed to finish internal surface of an existing hole. ... So reaming is performed only after drilling (or boring). Cutting tool used in drilling operation is called Drill.

What is the difference between a hand reamer and chucking reamer?

Chucking reamers are often used with floating reamer holders. Thus allowing them to follow previously drilled holes. My understanding is that hand reamers have a long lead taper to align the reamer whereas machine reamers have a much shorter lead taper for the obvious reason that the machine does the gross allignment.

Can you use a reamer on wood?

A tapered reamer can help you easily enlarge a hole in wood, metal, or plastic. Designed to help de-burr metal, this is conical tool with several cutting edges, and can be had anywhere for well under $10. You simply insert and twist, and it will cleanly and easily remove material.
