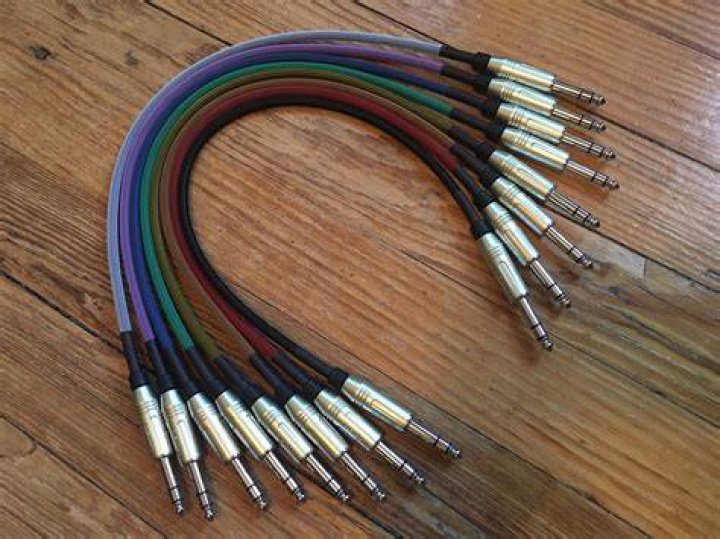

TRS (tip ring sleeve) or Stereo patch cables, are commonly used to connect an external switch, expression pedal and Midi Pedals to other devices in your pedal chain.

Do patch cables need to be TRS?

Now, in many of our studios, off the shelf patch bay and patch cables from Sweetwater are perfect. In this case, these are almost always 1/4″ balanced (TRS) or unbalanced (TS) connectors. In general, patch cables typically do not need the durability and flexibility of primary guitar cables or microphone cables.

How do I know if my cable is TRS?

The letters TRS stand for Tip, Ring, and Sleeve, and refer to the parts of the jack plug that the different conductors are connected to. A TRS cable has three conductors vs the two on a standard guitar cable. A guitar cable is a TS, or Tip Sleeve cable. The jack plug at the top is a TS jack.

Are aux cables TRS?

Aux Input Wiring Standards

The aux input is a 3.5mm TRS (tip-ring-sleeve) connection that accepts unbalanced stereo audio from TRS and TRRS cables.

Are TRS and XLR the same?

TRS: What's The Difference? XLR connectors are used to transmit mainly balanced mono audio but sometimes stereo signals, from one device to another, whereas TRS connectors are used for headphones and unbalanced stereo connections.

What's the difference between a TS, TRS and TRRS cable?

Are all TRS to XLR cables balanced?

An unbalanced cable has two connectors which both have a pair of conductors. These conductors have linked two wires which are installed within the unbalanced cable. There's a ground wire and a signal wire. ... All XLR cables are balanced, except in a situation where the inner components have been damaged or malfunctioned.

Does XLR sound better than TRS?

There is no noticeable difference in sound quality between XLR and 1/4 inch TRS connectors and cables. They are both balanced and can deliver a stereo audio signal. However, XLR is a better option compared to 1/4 inch TS cables.

Is headphone jack TRS or TRRS?

Most mobile devices with a headphone jack use the TRRS standard — read on for tips on connecting TRS accessories to TRRS sockets, and more. ... Today, these “phone connectors” come in three common configurations: Tip/Sleeve (TS), Tip/Ring/Sleeve (TRS), and Tip/Ring/Ring/Sleeve (TRRS).

Can I use a TS cable in a TRS jack?

Can I use a TRS cable as a TS cable? Unbalanced TS cables should be used with unbalanced input and outputs. TRS cables can occasionally be used instead of a TS cable, but the signal is still unbalanced.

Is Iphone a TRS or TRRS?

The iPod has a standard TRS (tip-ring-sleeve) connection that connects to headphones (TRS: audio left, audio right, ground, respectively). Other devices such as iPhones, iPads, and Android phones/tablets have a TRRS (tip-ring-ring-sleeve) connection.

What is a patch cable?

The patch cable sometimes also called patch cord, it's a length of cable with connectors on both ends that are used to connect an end device to something else like a power source. Similar to Ethernet cables, there are fiber patch cable and Ethernet patch cable like LC fiber patch cable or Cat6 RJ45 patch cable.

How do you know if a cable is balanced or unbalanced?

If the cable has two points of contact, it's unbalanced; and if it has three, it's balanced.

Why don t guitars use balanced cables?

As guitar cables are unbalanced, they're highly susceptible to interference. This means the quality of your cable will impact your tone. The amount of impact it has on your tone depends on the quality of your guitar and amp, pedals and interference.

Are all TRS cables balanced?

It depends on what audio output you connect the cable to. People often ask, "Are the TRS cables balanced?" The answer is "They can be, if you connect the cable between a balanced TRS output and balanced TRS input." Another common misconception is that a TRS cable is the same as a guitar lead.

What is the difference between TRS and TRRS?

TRS stands for 'tip, ring, sleeve', and is the kind of connector you find on cameras and other audio gear. They are easy to identify as they only have two black rings on the plug. ... TRRS stands for 'tip, ring, ring sleeve' and is the kind of connector you find on computers and mobile devices.

What happens when you plug a TRS cable into a TRRS jack?

in most cases, yes you can plug trrs into a trs connector and only have headphone audio and you would lose out on the microphone. if you want to keep the microphone you would need a trrs cable (if plugging into a phone or similar device) or a trrs to two trs connector cable (for plugging into pc).

Can I use balanced cables with unbalanced equipment?

Even if you plug a balanced cable into an unbalanced output jack, the signal will be unbalanced (see the downsides of unbalanced above). ... In many cases, interconnecting a balanced output to an unbalanced input will work just fine - your signal will be unbalanced.

Can I use a stereo jack for a mono signal?

You can without any concerns plug a stereo cable into an unbalanced mono jack; as long as you only send mono signals (i.e. L and R channels equal) it will work just fine, except for the usually -3 dB pan law and possible short-cicuiting of the ring connector; the latter is however unlikely and not harmful for line ...

What is TRRS 3.5 mm?

A TRRS or Tip Ring Ring Sleeve plug has four conductors and is very popular with 3.5mm, and can be used with stereo unbalanced audio with video… or with stereo unbalanced audio plus a mono microphone conductor.

What is TRRS to TRS adapter?

SRK A11 TRRS to TRS Adaptor This is a convenient adapter cable to convert your smartphone microphone to fit for computer and DSLR cameras. 4-pole 3.5mm female plug to 3-pole 3.5mm male jack. Connect the female plug with your cellphone microphone and the male jack with your computer or camera. The cable length is 13cm.

Are all 3.5 mm jacks the same?

Brief Description. Now-a-days 3.5mm is the universal audio jack size to be found in Smartphones, PC and Laptops. ... There are different types of 3.5mm audio jack available with different application like TS, TRS, and TRRS, but the most common that we see in daily life is TRS and TRRS.

Are microphones male or female XLR connectors?

The standard signal flow for audio in XLR connectors is that the output is a male connector and the input is female. In other words, the pins on the plug point in the direction of signal flow.

Can I use TRS to XLR?

TRS Can Be Connected to Inputs and Outputs

When using an XLR cable, you're usually going to be sending a signal one direction. For example, an XLR cable is usually used to send a signal from a microphone to a mixer. With a TRS connection, audio can be sent both ways.
