Yes. The RJ45 plug is standard and may only have a different coating on the pins to make it a Cat6 compatible vs. Cat5. You probably won't receive the same speed as if you were using a Cat6 compatible jack.

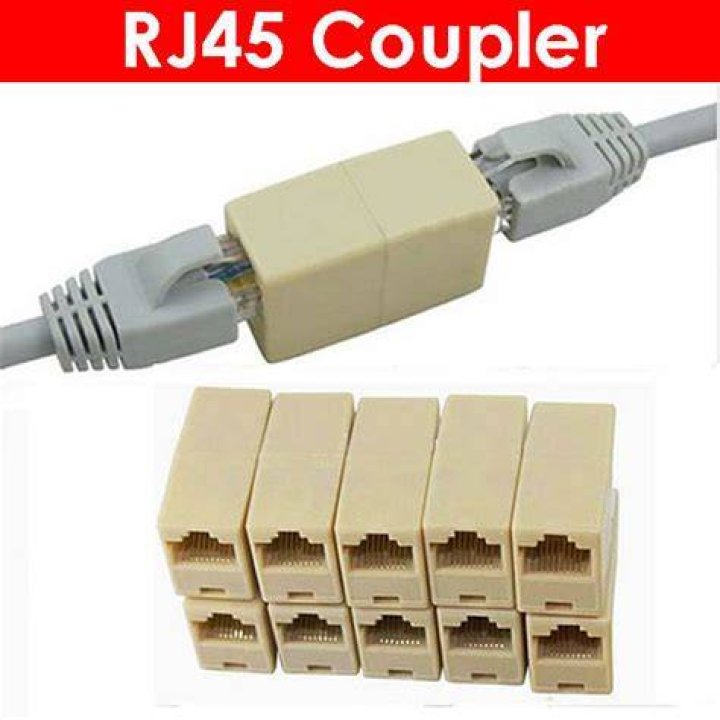

Will a CAT 5 coupler work with Cat6?

They can be plugged in to the same ports. Therefore, Cat6 cable works on Cat5 Network. However, Cat5 cable can't be used on Cat6 network since Cat6 network has more requirements on cabling performances and capabilities, which Cat5 cable can not reach.

Is there any difference between Cat5e and Cat6 connectors?

Cat5e has thinner conductors, almost always 24 AWG (as the AWG number goes higher, the copper is thinner). ... Cat6 is thicker overall, requiring RJ45 plugs that can accept the bigger outside-diameter of the cable (OD) and thicker, insulated, copper-conductor diameter.

Are RJ45 connectors the same for Cat5 and Cat6?

Given the slightly lager gauge wire of CAT6 the RJ45s offset the wire entry, where the CAT5 RJ45s wire entry is flat. If you look at the RJ45 front on i.e. as if you were going to plug it in to your eye, you will see the alternate up/down wires of a CAT6 RJ45, as opposed to the flat configuration for CAT5 Rj45s.

Are Cat5 and Cat5e connectors the same?

This is 10 times faster than the throughput speed of a Cat5 cable. ... The reason for this is that Cat5e cables are also "backwards compatible". This means that you can always upgrade a network that is wired with Cat5 with Cat5e. All systems that work with a Cat5 cable therefore also work with a Cat5e cable.

Will Cat6 Cables work with Cat5 ? (Cat6 / Cat5 compatibility )

Which is better Cat5 or Cat6?

The big difference between Cat5 and Cat6 cables is the amount of data that can be sent. Cat6 has a higher bandwidth compared to Cat5. You can compare this with a water pipe: more water can flow through a wide water pipe, should you compare it to a more narrow water pipe.

Are Cat5 and Cat7 connectors the same?

Cat7 connectors are compatible with Cat5, with enhancements and caveats. Cat5, Cat5e, Cat6 and Cat7 are physically and electrically compatible. It's when you try to do 10Gb/s or higher signaling on the cable that the Cat5e standard falls over.

Can I use Cat7 instead of Cat6?

Cat7 cable is otherwise called “Category 7” Ethernet cable. It supports high-speed Ethernet communication up to 10 Gbps. The Cat7 cable is backward compatible with Cat6, Cat5 and Cat5e cable categories.

Does Cat6 support 10gb?

Therefore, CAT6 has now become the minimum standard for new cabling installations. As well as being able to easily support 1 Gbps network speeds, CAT6 can also support higher data rates of 10Gbps. However, 10Gbps is only supported over shorter distances of 37-55 metres.

Can I use Cat6 connectors on Cat7 cable?

Cat6 and Cat7 cables will use the same types of connectors. ... For Cat7 cable which only comes in shielded versions to handle the higher frequencies it needs a whole shielded channel.

How much faster is Cat6 than Cat5?

Speeds and Bandwidth

Cat6 cabling is capable of reaching speeds up to 10 GB (gigabyte) while Cat5 speeds can range from 10 Mbps (megabits per second) to 100 Mbps. They are also compatible with Cat5 and Cat5e cables (the “e” standing for enhanced).

Is Cat6 faster than Cat5e?

Cat6 is pricier and faster than Cat5e, but also limited by distance. Cat6 supports data transfer speeds up to 10 Gbps at 250 MHz with even less (or no) crosstalk interference, due to the cable's improved insulation. However, its 10 Gbps speed is effective only up to 164 feet.

Is Cat5 cable compatible with Cat7?

Cat7 cable is otherwise called “Category 7” Ethernet cable. ... The Cat7 cable is backward compatible with Cat6, Cat5 and Cat5e cable categories. It offers a 100-meter 4-connector channel using shielded cabling, and has been designed to transmit signals at a frequency of 600 MHz.

What is the difference between Cat5 Cat6 and Cat7?

Starting at Cat5, they run up to Cat 7. ... The main difference between Cat6 and Cat7 cables is the frequency. As you can see above, a Cat7 cable and a Cat6 cable have the same speed. However, the difference is that Cat7 has a higher frequency than the Cat6 so a higher bandwidth.

What is the difference between Cat5 Cat6 and Cat7 cable?

What's the difference between CAT 5, CAT 6 & CAT 7 cable? ... CAT 7 cable, whilst being the more expensive option, is also considered the most durable, and has a longer lifespan than CAT 5 and CAT 6, improving its overall return on investment, and is the best choice for wiring with the future in mind.

Can I use CAT 8 instead of Cat5?

For basic Cat5 cables, that's 100 million signals a second (or 100 Mhz). Cat8 uses an unprecedented 2 billion (2 GHz) signals per second. ... That's obvious when you consider that Cat8 is rated for data transfers 250 to 400 times faster than Cat5.

Should I wire my house with Cat6?

Whether you're setting up a home network, replacing old cables, or looking to enhance your workplace LAN, Cat6 cables offer more. They can support faster data transfers, are typically more durable, and they offer better options for insulation against crosstalk and internal noise.

What is the difference between Cat 6 and Cat 6a?

Cat6 runs at a maximum bandwidth of 250 MHz. ... Cat6A is fully compatible with Cat6, but it escalates performance in three key areas. First, Cat6A can operate at up to 500 MHz. The extra bandwidth doubles the effective distance at which the cable can maintain 10 Gbps — up to 100 meters.

Will Cat6 improve Internet speed?

If you want faster internet speeds, Cat6 is a good choice. It reduces something called “crosstalk” — signal transfers that disrupt your communication channels. If you are happy with your current internet speeds, however, Cat5 might be all you need.

What is the difference between Cat6 and Cat 8?

Generally, Cat6 is the standard for office use. ... CAT6A is recommended for higher performance and 10 Gigabit Ethernet over the full distance distance. CAT8 supports 45 Gigabit Ethernet but it's short range for those speeds makes it best suited for connections inside of one room.

What is the speed supported by a CAT 5 cable?

The speed of Cat5e cabling supports high-performance networking. Category 5 enhanced cables can deliver Gigabit Ethernet speeds of up to 1000 Mbps. Devices connected by the cable, including switches and routers, should also support the desired data speeds.

Can you run 10gb over Cat5e?

So, unless you think you might need 10 Gigabits across a given link, Cat5e will do the trick just fine. Cat5e can even handle 10 Gigabit Ethernet at short distances, so within a server room for example as a backbone link, Cat5e cable is rated to handle it.

Will using Cat6 cable make a difference?

The short answer is no. Choosing patch cords category 6 over Cat5e don't affect your network performance. So if Cat6 cables cost 30% more, why not saving and buying standard cat5e or even cat5 network cables.

Is CAT6A backwards compatible with Cat6?

In addition, CAT6A is backwards compatible with CAT5e and CAT6 because of the usage of the RJ45 connector. CAT6A is also affordable for present and future applications because it supports higher speeds and 10Gbps network speeds up to 100 meters.
