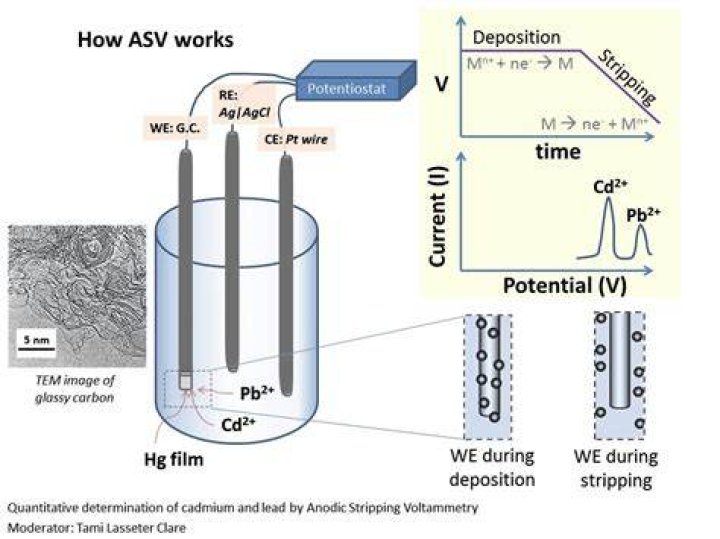

Anodic Stripping Voltammetry allows researchers to detect multiple types of dissolved metal in one experiment. ... The metal film formed during the reduction step concentrates the metal particles at the electrode, so the detection of very low concentrations (ppb range) of metal ions is possible.

What information can be obtained from anodic stripping voltammetry?

As the analyte is oxidized, it gives off electrons which are measured as a current. Anodic stripping voltammetry can detect μg/L concentrations of analyte. This method has an excellent detection limit (typically 10⁻⁹ - 10⁻¹⁰ M).

Why is anodic stripping voltammetry more sensitive than cyclic voltammetry?

Stripping methods are generally more sensitive than other voltammetric techniques because of a preconcentration step which accumulates the desired analyte on the surface of the electrode. ... In this technique the analyte, typically a metal ion, is preconcentrated on the electrode surface by reductive electrodeposition.

What is square wave anodic stripping voltammetry?

Definition: An electrochemical technique where the analyte of interest is first electroplated onto the working electrode before being removed or 'stripped' by applying an oxidising potential. The potential is varied as a square wave superimposed on a linear sweep. ...

What is differential pulse anodic stripping voltammetry?

Definition: An electrochemical technique where the analyte of interest is first electroplated onto the working electrode before being removed or 'stripped' by applying an oxidising potential (as a series of voltage pulses of increasing amplitude).

Anodic Stripping Voltammetry Pre-lab lecture

What is Chronoamperometry used for?

Chronoamperometry is used to study the kinetics of chemical reactions, diffusion processes, and adsorption. In this technique, a potential step is applied to the electrode and the resulting current vs. time is observed.

What is stripping voltammetry used for?

Applications of Anodic Stripping Voltammetry

Anodic Stripping Voltammetry is widely used for testing drinking water quality, surface water and sewage or waste water – water that leaves the treatment plant before being discharged into surface water.

How does square wave stripping voltammetry work and why is it important?

Accumulating analyte on the electrode increases the mass of material available for the electrochemical reaction. Currents are higher, so the level of detection falls dramatically. In some systems, Square Wave Stripping Voltammetry can achieve sensitivity in the parts-per-trillion range.

What is a Voltammogram?

A voltammogram is a graph that can be drawn after an electrochemical experiment. This graph has a typical, recognizable form in which the electron flow (current: i) is measured in Volt against the potential (E).

What is LSV in electrochemistry?

Linear Sweep Voltammetry (LSV) is a basic potentiostatic sweep method. It is equivalent to a one-segment cyclic voltammetry experiment In LSV, working electrode potential is swept linearly between final and initial values and current is measured as a function of time.

What is the purpose of the electrodeposition step in stripping analysis?

The purpose of the electrodeposition step in stripping analysis is to concentrate the analyte on the surface of the working electrode.

What is the function of potentiostat?

A potentiostat (Figure 1) is an electronic instrument that controls the voltage difference between a Working Electrode and a Reference Electrode. Both electrodes are contained in an electrochemical cell.

Why the DPV technique is more sensitive than the cyclic voltammetric technique explain your answer in detail?

In general, pulse techniques, such as DPV, are more sensitive than the linear sweep methods because there is minimization of the capacitive current. In turn, CV is most commonly used for exploratory purposes.

What are stripping methods?

: a method of conservative lumbering by which timber is cleared in relatively narrow strips through a forest and reproduction on the cleared strips is obtained by the seed sown from the adjoining woodland.

What is potentiometric stripping analysis?

The analytical possibilities of potentiometric stripping analysis are outlined. The technique comprises reduction of metal ions at a stationary mercury drop or thin-film electrode. The amalgamated metals are then re-oxidized with mercury(II) ions, and the time—potential behaviour of the mercury electrode is recorded.

What is meant by working electrode?

The working electrode is the electrode in an electrochemical system on which the reaction of interest is occurring. ... Depending on whether the reaction on the electrode is a reduction or an oxidation, the working electrode is called cathodic or anodic, respectively.

What is anodic and cathodic current?

Anodic current is only a portion of the total current. To understand the full current of an electrode reaction, it is necessary to take into account the cathodic current, which is the flow of electrons leaving an electrode. The anodic (or cathodic) current is used to help determine the rate of corrosion.

Why do we use 3 electrodes?

For a better control and measurement of the current and potential going through the cell during the electricity driven chemical reaction, it is better to use a three electrode system to reduce and compensate the potential changes caused by large currents passing through the working and counter electrodes.

How does differential pulse voltammetry work?

The basis of the differential pulse voltammetry technique is to measure the differences in the rate of the decay of charging and Faradaic current when a potential pulse is applied. ... The potential is scanned with a series of pulses, while the current is monitored at the beginning and the end of each.

What does cyclic voltammetry measure?

Cyclic voltammetry is an electrochemical technique for measuring the current response of a redox active solution to a linearly cycled potential sweep between two or more set values.

What is stripping in chemical engineering?

Stripping is a physical separation process where one or more components are removed from a liquid stream by a vapor stream. ... In industrial applications the liquid and vapor streams can have co-current or countercurrent flows. Stripping is usually carried out in either a packed or trayed column.

What is a mercury film electrode?

There is one additional type of mercury electrode: the mercury film electrode. A solid electrode—typically carbon, platinum, or gold—is placed in a solution of Hg²⁺ and held at a potential where the reduction of Hg²⁺ to Hg is favorable, forming a thin mercury film on the solid electrode's surface.

Which types of mercury working electrodes are commonly used for stripping analysis?

These components can best be explained by discussing the stripping experiment for detection of lead. In this experiment, a mercury working electrode is used - either the Hanging Mercury Drop Electrode (HMDE) (using the BASi® CGME) or the Thin Mercury Film Electrode (TMFE) (using the BASi® RDE-2).
