Nitrogen and regulation Dry (oxygen free) nitrogen (OFN) is used to achieve the pressures required for the pressure tests because it is inert. You must never use oxygen for pressure testing - pure oxygen at high pressure reacts violently with oil and will explode.

What gas is used for pressure testing?

In many high pressure testing applications for leak testing, gaseous nitrogen is utilized as a medium due to its low investment cost. Many of our customers in the oil & gas industry use nitrogen to perform tests on BOPs, SCSSVs, Christmas trees and drilling equipment.

Why is nitrogen used in air conditioning?

Nitrogen is used in air conditioning to purge oxygen out of the copper tube to prevent the formation of scales on the inner surface of the copper tube due to oxidation that can cause damage to the air conditioner during operation.

Does nitrogen change pressure with temperature?

Nitrogen is a gas and is still affected by changes in ambient temperature (about one psi for every 10° Fahrenheit). ... Nitrogen assures more consistent pressure increases due to increases in operating temperatures in a racing environment because of the absence of moisture.

What is nitrogen pressure?

The discharge pressure of a nitrogen generator varies but normally operates between 75 psig and 150 psig. The nitrogen is directed into the intake side of the booster compressor. At this point the nitrogen will go through the various stages of compression until it reaches optimal operating pressure of the application.

How to Leak Test an AC With Nitrogen Pressure

At what pressure does nitrogen liquify?

Well, nitrogen's critical point is (126.21 K, 3.39 MPa), so, if you get the temperature down to 126.21K, you can liquify it at 3.39MPa.

What is nitrogen used for?

Nitrogen is important to the chemical industry. It is used to make fertilisers, nitric acid, nylon, dyes and explosives. To make these products, nitrogen must first be reacted with hydrogen to produce ammonia.

What type of nitrogen is used for HVAC?

100% Nitrogen Industrial Grade for HVAC&R

MaxxiLine Nitrogen (N2) disposable gas cylinders, are commonly used in the Air Conditioning / Refrigeration industry to purge moisture while repairing pipes.

What is nitrogen used for in refrigeration?

It helps to absorb moisture trapped within the unit, so your AC system can function more efficiently and effectively in the future. Nitrogen is effective at flushing all contaminants out of the air conditioning unit's system, enabling the unit to run without spreading contamination.

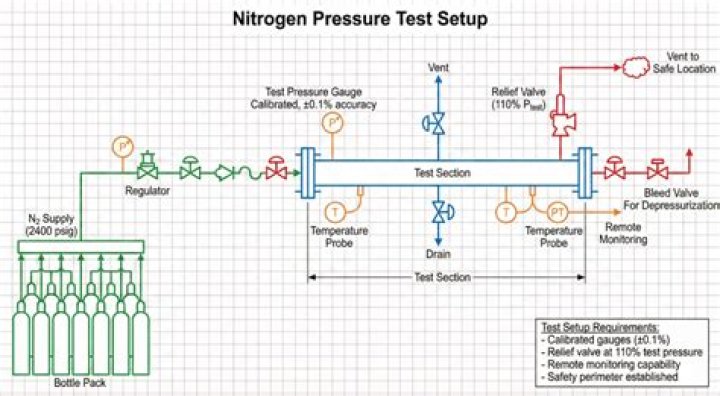

What is nitrogen pressure testing?

Nitrogen will be released to elevate the pressure within the test component to a low pressure while forcing any air, debris, or other substances out of the component. This will purge the system of contaminants and check for leaks. Routine pressure testing involves two stages: Low-pressure testing. High-pressure testing.

Why nitrogen is not used as refrigerant?

Nitrogen is R728, and requires either a heavy duty cascading system, a heavy duty cyclic autocascade, or a very very high pressure cascade. I don't think nitrogen can be a liquid at room temperature, so the "phase change" effect would be non-existent.

Is nitrogen a refrigerant gas?

Also, Nitrogen is a preferred gas used in this process as it will not harm the environment and does not support combustion or oxidation, as does air or oxygen. ... Otherwise, the R-410A-nitrogen-R-22 mixture will be considered a refrigerant, and its release will be a violation of EPA regulations and subject to fine.

What is nitrogen test?

Overview. Urea nitrogen urine test is performed to check for the amount of urea in urine. Urine is collected over a 24 hour period and is sent to the laboratory for testing. This test is mainly used to assess the amount of dietary protein needed by severely ill patients.

Which gas law is used when a refrigeration system is pressure tested with nitrogen?

One of them however is very useful if you want to work out the effect on nitrogen pressure when ambient temperature changes while you are pressure testing. The rule that we need to use is Gay-Lussac's Law.

How do you test the purity of nitrogen gas?

The purity of a sample of nitrogen gas is determined by the percentage/concentration of pure nitrogen in it. For gas to be classified as high purity, it must possess at least 99.998 percent nitrogen while lower purity nitrogen gas usually contains a higher proportion of impurities.

How is nitrogen used in HVAC?

The two main areas nitrogen gas is used within HVAC are for brazing and pressure testing copper coil. Nitrogen is used during the brazing process to purge oxygen from the brazed surface. ... Nitrogen also prevents the formation of moisture during the leak testing process, thereby eliminating oxidation of the metal.

Why do we use liquid nitrogen?

Liquid nitrogen, which has a boiling point of -196C, is used for a variety of things, such as a coolant for computers, in medicine to remove unwanted skin, warts and pre-cancerous cells, and in cryogenics, where scientists study the effect of very cold temperatures on materials.

Why do you use nitrogen to purge?

Why Nitrogen Purging Is Required? The benefits of nitrogen purging are numerous, but the most crucial reasons for nitrogen gas purging are to prevent chemical alteration of products and to prevent moisture-related equipment damage or even combustion.

What are 5 uses of nitrogen?

The chemical industry uses this gas in the production of fertilizers, nylon, nitric acid, dyes, medicines, and explosives. Here are the five applications of nitrogen in everyday life.

What are the four uses of nitrogen?

• Preservation of Food. Nitrogen gas is used to help with food preservation by preventing oxidative damage leading to food spoiling. ...
• Pharmaceuticals Industry. ...
• Electronics Manufacturing. ...
• Stainless Steel Manufacturing.

What are 3 facts about nitrogen?

• Nitrogen is non-toxic, odorless, and colourless.
• It is not flammable.
• Nitrogen gas is slightly lighter than air once it reaches room temperature. ...
• Nitrogen was first liquefied on April 15, 1883, by Polish physicists Zygmunt Wróblewski and Karol Olszewski.
• Nitrogen is 75% of the air we breathe.

How does nitrogen turn into liquid?

Liquid Nitrogen is created through a multistage processes which pulls the air around us, separates the different elements present in the air (largely nitrogen, oxygen, argon, water vapor, and carbon dioxide), and then converts nitrogen gas to its liquid form by cooling it below its boiling point.

Can we eat nitrogen?

Liquid nitrogen isn't toxic, but its extremely low temperature can cause severe damage to skin and internal organs if mishandled or consumed, the FDA said in a news release. ... "It may also cause burns of the fingers or hands when it is handled in the liquid state."
