Triacs are electronic components that are widely used in AC power control applications. They are able to switch high voltages and high levels of current, and over both parts of an AC waveform. This makes triac circuits ideal for use in a variety of applications where power switching is needed.

Whats the purpose of a triac?

A TRIAC is triggered into conduction in both directions by a gate signal like that of an SCR. TRIACs were designed to provide a means for the development of improved AC power controls. TRIACs are available in a variety of packaging arrangements. They can handle a wide range of current and voltage.

What are the advantages of a triac over an SCR?

Advantages of Triac:

It needs only a single heat sink of a slightly larger size whereas for SCR two heat sinks should be required of smaller size. A safe breakdown in either direction is possible using TRIAC but for SCR protection should be given with parallel diode.

Why triac is better than relay?

Because there is no inductive coupling, triacs can be used in dangerous environments, particularly in explosive sensitive environments where sparking relay contacts are absolutely out. Triacs outputs have a much longer lifetime than relays. Because they're built of semiconductors, they can last millions of cycles.

Can I use triac instead of relay?

Long story short: Yes, triacs can replace relays in almost every application.

Electronic Basics #20: Thyristor, Triac || Phase Angle Control

Can you bypass a triac?

You can simply bypass the triac with a jumper wire. If the load in the circuit begins running, then you know the culprit is the triac.

Can triac be used for DC?

Yes, Can be used in GATE terminal to trigger.. but once triggered it will continue indefinitely switched on. So it has very limited applications on the dc field. Ultimately, The TRIAC is a three-terminal electronic device, which works as a switch for AC signals.

Why do we need to use output relays with PLC?

Relay outputs are mechanical contacts and solid state outputs may take the form of transistor or TTL logic (DC) and triac (AC). Relay outputs are usually used to control up to 2 amps or when a very low resistance is required.

What is the difference between mosfet and triac?

1) Mosfets, by themselves, can only switch DC current. Triac can switch DC and AC current. 2) Mosfet is a voltage-driven device and Triac is a current driven device. 3) Triac is self-sustaining and Mosfet is (practically) not self-sustaining.

What is a triac used for in an AC output module?

Triacs are electronic components that are widely used in AC power control applications. They are able to switch high voltages and high levels of current, and over both parts of an AC waveform. This makes triac circuits ideal for use in a variety of applications where power switching is needed.

What are the disadvantages of using TRIAC for AC switching?

There are some disadvantages of TRIAC which are given below,

The TRIACs are not much reliable as compared to SCR. It can be triggered in any direction so we need to be careful about triggering circuit. It has a very high switching delay. As compared to SCR (silicon controlled rectifier) it has low ratings.

What is TRIAC explain?

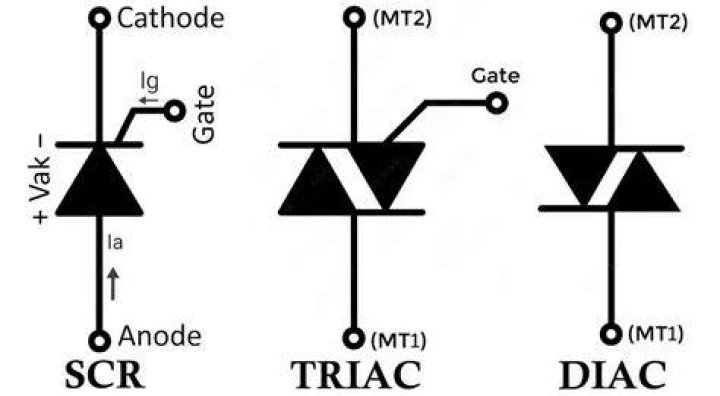

A TRIAC (triode for alternating current; also bidirectional triode thyristor or bilateral triode thyristor) is a three terminal electronic component that conducts current in either direction when triggered. ... The bidirectionality of TRIACs makes them convenient switches for alternating-current (AC).

What is TRIAC explain its construction working characteristics and uses?

Triac is a three terminal AC switch which is different from the other silicon-controlled rectifiers in the sense that it can conduct in both the directions that is whether the applied gate signal is positive or negative, it will conduct. Thus, this device can be used for AC systems as a switch. systems as a switch.

How does triac work?

A Triac behaves just like two conventional thyristors connected together in inverse parallel (back-to-back) with respect to each other and because of this arrangement the two thyristors share a common Gate terminal all within a single three-terminal package.

Can a triac switch DC voltage?

The triac doesn't care whether it is switching AC or DC. Assuming that all other specs are okay for your application, then yes, you can certainly switch a DC voltage on/off. A triac may not care whether it's AC or DC to turn on but it certainly does to turn off.

How many terminal does a triac?

TRIACs are semiconductor devices that feature three terminals. They operate by using one terminal—i.e., the gate—to trigger the flow of electrical current through the other two terminals—i.e., the main terminals or anodes.

Which is better MOSFET or SCR?

Thyristor has a most robust device, MOSFET has a less robust device. Thyristor has a high voltage as well as a high current device while in MOSFET has a high current medium voltage device. Thyristor has low on stage voltage drop, MOSFET has a high ON stage voltage drop.

What is the difference between a triac and a transistor?

Triac Switches (VAC) & Transistor Switches (VDC) A triac switch is a semiconductor device used in an AC voltage circuit that expands upon a typical thyristor device. ... Transistor switches, on the other hand, operate with a DC voltage circuit.

Which is better IGBT or MOSFET?

When compared to the IGBT, a power MOSFET has the advantages of higher commutation speed and greater efficiency during operation at low voltages. What's more, it can sustain a high blocking voltage and maintain a high current.

How many outputs can a PLC have?

PLCs have four typical output types. Three are DO and the other is AO. For the Digital Outputs they are transistor, relay, and the triac.

What is the similarity between relays and PLC?

Relays are electro-mechanical switches that have coil and two types of contacts that is NO & NC. But a Programmable Logic Controller, PLC is a mini computer which can take decision based on the programme and its input & output.

What are the advantages of PLC over relays?

• Ability to interface / communicate with computers.
• Simple programming.
• High reliability.
• Easy maintenance.
• Rugged construction - can operate in extremely harsh conditions.
• Small size.
• Easy expandability.
• Economical in long term.

How many doped regions do a standard TRIAC have?

Explanation: A standard TRIAC has 6 doped regions. The gate terminal makes ohmic contact between p-type and N-type materials.

How do you turn off a TRIAC?

The most common method used to turn off a TRIAC is by reducing the load current though the TRIAC until it reaches below the value of holding current (I_H). This type of commutation is called as forced commutation in DC circuits.
