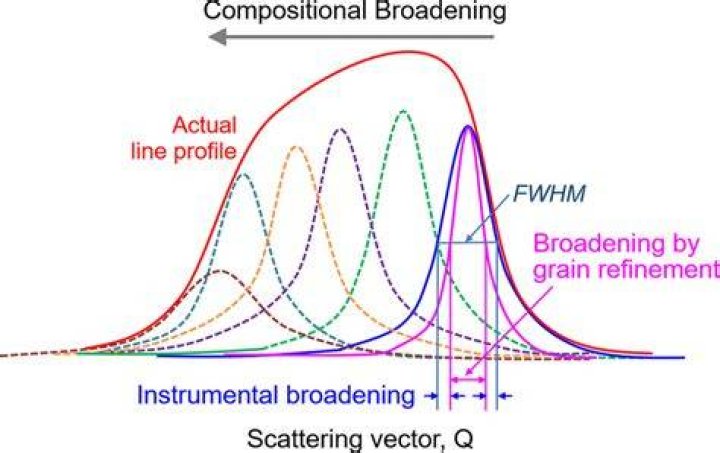

The broadening in the peaks of the XRD patterns arises due to the finite size of the crystals. If one has crystal of infinite size, the peaks in the XRD pattern will appear as very sharp and as size get reduces peak broadening increases.

Why do diffraction peaks have width?

The reason for this is that a variety of factors can contribute to the width of a diffraction peak besides instrumental effects and crystallite size; the most important of these are usually inhomogeneous strain and crystal lattice imperfections. ... The crystallite size can be thought of as a lower limit of particle size.

Why is XRD peak splitting?

Peak splitting is taking place due to the phase transformation. For example BaTiO3 ceramics has splitting peak at around 2theta angle of 45 which is specifying the tetragonal phase.

What is instrumental broadening in XRD?

Instrumental broadening has to be subtracted* to obtain broadening from other sources. This is done by using a 'standard' sample with large grain size and low strain, wherein there is no crystallite size or strain broadening (sample is chosen such that the density of other defects is small).

How the effect of instrumental broadening is eliminated?

X-Ray, Synchrotron Radiation, and Neutron Diffraction

The high intensity, collimation, and narrow energy band of a monochromatic SR beam have virtually eliminated the instrumental broadening of powder reflections.

XRD Peak Broadening

Why does peak splitting occur?

The most common causes for peak splitting are i) too strong injection solvent compared to mobile phase composition at elution, ii) column channelling, iii) partially clogged part of the system (column, filter etc.). A too high acquisition rate may also cause jagged peaks.

How does XRD determine crystal structure?

by measuring the reciprocal lattice space (k-Space) by XRD diffraction technique if you take Fourier transform of that it will give you bravais lattice. this bravais lattice will give you the information about crystal structure.

What is Cu K alpha radiation?

Copper K-α is an x-ray energy frequently used on labscale x-ray instruments. The energy is 8.04 keV, which corresponds to an x-ray wavelength of 1.5406 Å. ... K-alpha radiation has higher intensity rather than K-beta, so it is commonly used in diffractometers.

What affects peak intensity in XRD?

Peaks are affected by particle size and their FWHM is inversely proportional to crystallite size. Since peak area (integral intensity) has to be preserved and FWHM decreases with increasing crystallite size this would force peaks to grow proportionally to maintain constant peak area.

What does peak intensity mean in XRD?

The peak intensity shows the extent of crystallinity of the particular plane. ... In comparision with the available samples, total sum of the various prominent peaks intensity one can calculate the crystallinity.

What is shape factor in XRD?

Shape factor refers to a value that is affected by an object's shape but is independent of its dimensions. ... Shape factor of crystallites, a term in the Scherrer equation used in X-ray diffraction.

Why is copper used in XRD?

Copper anodes are by far the most common (as shown above left) since copper gives the shortest wavelength above 1 Å. ... Short wavelengths both scatter weakly and contract the diffraction pattern towards low Bragg angles with consequent loss of d spacing accuracy and resolution.

What is diffraction peak?

The position of the diffraction peaks are determined by the distance between parallel planes of atoms. • Bragg's law calculates the angle where constructive interference. from X-rays scattered by parallel planes of atoms will produce a diffraction peak. – In most diffractometers, the X-ray wavelength λ is fixed.

Why nickel filter is used in XRD?

Nickel has an absorption edge at 149 pm, between the two copper lines. Thus, using nickel as a filter for copper would result in the absorption of the slightly higher energy 139 pm x-rays, while letting the 154 pm rays through without a significant decrease in intensity. ... This typically ranges from 0.1 to 0.9 mm Cu.

What do XRD peaks mean?

Peak intensity tells about the position of atoms within a lattice structure. and peak width tells about crystallite size and lattice strain.

Why the intensity of peaks in an XRD pattern are different for different planes?

Intensity is proportional to the number of scatterers per unit area of a given atomic plane and therefore the peak intensities in an XRD experiment will vary. Usually, with increasing plane indices (higher angles in the pattern), the intensity of the peak goes down.

How do you stop peak splitting?

The problem of the peak splitting can be solved by reverse flushing most of the times as it removes the contaminant from the column and may also dissolve the absorbed contaminants if the impurities in the column is soluble in the Mobile Phase. 2) Wash the column with 90% Organic phase such as Acetonitrile or Methanol.

How do I stop peak splitting in HPLC?

Using in-line filters and column guards can reduce the incidence of blockages in a chromatography system, so preventing peak problems. The problem of blocked frits is highlighted in: ACE Ultra Low Dispersion, High Quality UHPLC and HPLC Pre-column Filters.

What causes peak shoulder?

The peak distortion is caused by the effect of the large volume of solvent in the column. The solvent is present in a much larger amount than the sample compounds. ... The shoulder represents the amount of the compound retained by the solvent.

Why does line broadening occur?

The broadening is partly an extremely small intrinsic effect produced within the absorbing or radiating atom (natural broadening) that is related to the Heisenberg uncertainty principle; it can include effects due to external conditions also, such as collisions with other atoms, motion of the radiating or absorbing ...

How do you determine instrumental broadening?

You can measure the instrumental broadening by using a commercial sample of either LaB6, Si or Al2O3. The instrumental broadening can be done one time for your samples, and not frequent. ESTIMATING crystallite size and microstrain by warren-averbach ? - ResearchGate.

What is the difference between crystallite size grain size and particle size?

Crystallite Size,& Grain Size are one and the same but particle size consist of no. of grains or crystallites. Crystallite Size or Grain Size can be calculated using Scherrer formula D = 0.9 λ/ β cosθ where λ - wavelength of X-ray, β- Full Width Half Maxima and θ is Bragg's angle of diffraction.

Why is K-alpha used in XRD?

Unfortunately not only the K-alpha radiation contributes to the XRD pattern but also the bremskontinuum of the x-ray spectrum. The bremskontinuum will lead to a continuous background of the diffractograms. So also here it it advantageous to use K-alpha because of its higher flux compared to K-beta.
