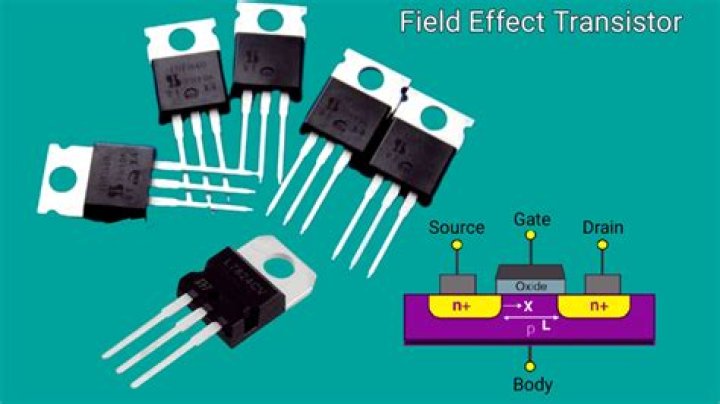

FETs are also known as unipolar transistors since they involve single-carrier-type operation. That is, FETs use either electrons or holes as charge carriers in their operation, but not both. ... The most widely used field-effect transistor is the MOSFET (metal-oxide-semiconductor field-effect transistor).

Is FET unipolar device?

A field effect transistor (FET) is a unipolar device, conducting a current using only one kind of charge carrier. If based on an N-type slab of semiconductor, the carriers are electrons. Conversely, a P-type based device uses only holes.

What do you mean by unipolar device?

A unipolar transistor is a field effect transistor (FET) that uses only one type of charge for conduction from drain to source i.e. either electrons (n-channel FET) or holes (P-channel FET). The invention of the bipolar junction transistor in 1948 was the beginning of semiconductor electronics.

Why BJT is called unipolar device?

BJT is called bipolar because the current in a BJT flows due to both electron and hole carriers, whereas the current in a Field Effect Transistor (FET) flows due to either electron carriers for N-type FET or hole carriers for P-type FET, hence they're called unipolar transistors.

Why MOSFET is called unipolar device?

The P-type substrate below the gate takes on a negative charge. An inversion region with an excess of electrons forms below the gate oxide. This region now connects the source and drain N-type regions, forming a continuous N-region from source to drain. Thus, the MOSFET, like the FET is a unipolar device.

What is Field Effect Transistor (FET)? || Differences between BJT and FET || Types of FET

Why FET is used as constant current source?

We have seen in this tutorial about the FET Constant Current Source that due to their channel resistance characteristics, field effect transistors can be used to supply a constant current to a load and find numerous applications in electronics circuits where it is required to supply a fixed current to a connected load.

Why FET is called field effect transistor?

The concept of the field effect transistor is based around the concept that charge on a nearby object can attract charges within a semiconductor channel. It essentially operates using an electric field effect - hence the name.

Is FET a bipolar device?

The basic difference between BJT and FET is that the bipolar junction transistor is the bipolar and current control device, while FET (field effect transistor) is the unijunction transistor. It is a voltage control device.

Which device is a unipolar device?

a)bjt b)fet. c)diode. Fets are unipolar devices because we can give supply to these devices from both the direction or we can say they are active in both forward as well as in reverse direction while the other two devices are active in only forward direction.

What is the difference between unipolar and bipolar device?

A bipolar junction transistor (BJT) is a type of transistor that uses both electrons and electron holes as charge carriers. In contrast, a unipolar transistor, such as a field-effect transistor, uses only one kind of charge carrier.

Why is a FET better than a BJT?

FET has no offset voltage when used as switch unlike BJT. FET is relatively immune to radiation but BJT is very sensitive. ... FET is less noisy compare to BJT. It is more suitable for input stages of low level amplifiers.

Why are FETs used in digital logic?

Transistor Types

BJT transistors are used primarily in amplifying or switching applications (e.g. power supplies.) FET stands for the field-effect transistor. FET transistors rely on an electric field to control conductivity of a channel.

How FET devices are classified?

FET Classification

FET transistors are classified into Junction Field Effect transistors (JFET) and Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) transistors.

Which device is not unipolar device?

For the unipolar transistor, the transistor must be made up of one type semiconductor. Both the name of p-n-p and n-p-n transistor suggests that they can't be unipolar and for the point-contact transistor, one p-n junction is used. Hence, the Field effect transistor is the correct answer.

Why are diodes unipolar?

A bipolar diode contains a junction between two zones of the pore walls with positive and negative surface charges. A unipolar diode contains a zone that is neutral and a zone that is charged.

Is tunnel diode a unipolar device?

GopherT. Devika B S said: According to some sources, diode is a bipolar device since it has both electrons and holes as carriers. However according to some other sources, diode is a unipolar device because it allows current to flow only through one particular direction?

What is difference between FET and Mosfet?

JFET(Junction Gate Field-Effect Transistor) is a three-terminal semiconductor device. MOSFET(Metal–Oxide–Semiconductor Field-Effect Transistor) is a four-terminal semiconductor device. It can only operates in the depletion mode. ... While the gate leakage current for MOSFETs will be of the order of 10^-12 A.

What are the parameters of FET?

• Gate Cut Off Voltage (V_GS(off))
• Shorted Gate Drain Current (I_DSS)
• Transconductance (g_mo)
• Dynamic Output Resistance (r_d)
• Amplification Factor (μ)

Why BJT and FET named so?

Bipolar transistors are so named because they conduct by using both majority and minority carriers. The field-effect transistor (FET), sometimes called a unipolar transistor, uses either electrons (in N-channel FET) or holes (in P-channel FET) for conduction. You are correct. There are fields inside of a BJT.

Why it is called field-effect?

Field effect transistors (FETs) work on a pricipal that uses the field produced by the gate in a way that makes the channel conduct more or less. The FET was named such because the of how the static field, as apposed to current, plays a central role in the operation of the device.

Why gate current is zero in FET?

We all are aware that the gate current in the IGFET(insulated gate field effect transistor) is always zero owing to the oxide coating present between the gate and the substrate region.

What is the main advantage of FET which makes it more useful in industrial applications?

What is the main advantage of FET which makes it more useful in industrial applications? Explanation: Because of its small size, the IC chips can be made even smaller which reduces the wear and tear.

What is a constant current source used for?

Constant Current Source: A Current source is an electrical or electronic device that delivers or absorbs electric current. A current source is the dual of a voltage source. Active constant current sources are often used in circuits.
