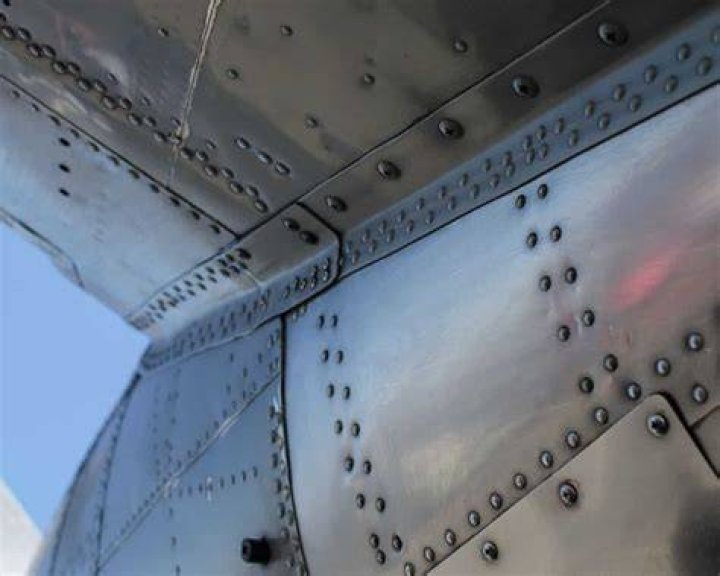

For the critical components of an aircraft's body, though, rivets are preferred because of their ability to withstand extreme stress without breaking or otherwise succumbing to damage. It's a safer and more effective way for aerospace manufacturing companies to build aircraft.

Why are rivets used instead of bolts?

Rivets offer a number of advantages over threaded bolts. They won't loosen when subjected to vibration and can secure joints with short clamp length. On the other hand, compared to threaded bolts, they are cumbersome and time consuming to install and remove, and offer limited clamp load.

What rivets are used in planes?

Two of the major types of rivets used in the aircraft are the common solid shank type, which must be driven using a bucking bar, and the special (blind) rivets, which may be installed where it is impossible to use a bucking bar. Solid shank rivets are generally used in repair work.

Why is riveting important?

Riveting ensures that neither of the parts is excessively heated (as is the case in welding, which leads to an atomic reordering in the affected area due to the heating), thereby ensuring that the material's properties concerning its ability to withstand vibrations and its flexibility remain intact.

Why riveting process does commonly used in aircraft assemblies?

Compared with welding mainly a fusion method, riveting a mechanical method generates no thermal deformation, hence widely used for joining high thermal conductive materials such as aluminum sheet metals used in aircraft assembly [1].

HOW IT WORKS: Aircraft Flush Riveting

Do planes use rivets?

Rivets are used on sport aviation aircraft as well as metal airplanes as large as a Boeing 747. ... Rivets are not only used to hold aluminum sheets together, but they are also used in securing fittings, nut plates, spars and ribs, etc.. Simply defined, a rivet is a bolt without a nut.

What is an aircraft rivet?

The rivet nut is a blind installed, internally threaded rivet invented in 1936 by the Goodrich Rubber Company for the purpose of attaching a rubber aircraft wing deicer extrusion to the leading edge of the wing. ... Rivet nuts made of alloy steel are used when increased tensile and shear strength is required.

What are the purpose of using dome head rivets on aircraft skin?

In addition to their use for joining aircraft skin sections, rivets are also used for joining spar sections, for holding rib sections in place, for securing fittings to various parts of the aircraft, and for fastening innumerable bracing members and other parts together.

Where are rivets used?

Steel rivets can be found in static structures such as bridges, cranes, and building frames. The setting of these fasteners requires access to both sides of a structure. Solid rivets are driven using a hydraulically, pneumatically, or electromagnetically actuated squeezing tool or even a handheld hammer.

How many rivets Does a plane have?

Building an airplane is a complex, if not monumental, undertaking. There are 6 million parts on one 747, for example - 40,000 rivets on each wing.

What are 1100 rivets used for?

The 1100 rivet, which is composed of 99.45 percent pure aluminum, is very soft. It is for riveting the softer aluminum alloys, such as 1100, 3003, and 5052, which are used for nonstructural parts (all parts where strength is not a factor).

When should you use rivets?

1. Attaching a sign or nameplate to a wall, where one side is inaccessible.
2. Attaching hinges, instead of using nails or screws.
3. In woodworking, because rivets provide a more sturdy construction than screws or nails.

Is rivet stronger than bolt?

For typical workshop applications, where pop rivets are usually used, threaded fasteners will provide superior strength. Pop rivets use a hollow shaft, reducing their ability to resist shear loads. ... By contrast, solid rivets are perhaps the strongest mechanical fastener available.

Why are rivets so strong?

Since they are joining other materials of varying thicknesses, rivets give the ultimate strength for some of the hardest jobs. You need to get the right size of rivet, so when it is installed properly it is vibration resistant and permanent.

How many rivets are in the Eiffel Tower?

2,500,000 rivets!

On the Eiffel Tower, 2.5 million rivets hold together 12,000 metallic pieces.

Who invented rivets?

The first rivets appeared in Ancient Egypt over 5,000 years ago, where they fixed handles to clay jars. By the time of the Ancient Romans, rivets were commonplace in construction.

Can a blind rivet be used on air intake areas of an aircraft?

Typically, the locking characteristics of a blind rivet are not as good as a driven rivet. Therefore, blind rivets are usually not used when driven rivets can be installed. Blind rivets shall not be used: ... On aircraft in air intake areas where rivet parts may be ingested by the engine.

What is a cherry rivet?

CherryMAX® is a locked spindle blind rivet with a visibly inspectable mechanical locking device and its own installation washer, which eliminates the problems resulting from worn tool anvils. ... The CherryMAX® rivet is the most reliable, high strength structural fastener with visual inspectability in the world today.

What is a rivet snap used for?

A rivet snap is a fastener used on a variety of goods, from camping equipment to furniture to individual identification tags worn on the body. It consists of two round, flat, plastic or metal discs of varying sizes and colors.

Can you use a rivet gun for rivnuts?

If you have a rivet gun that has the proper insert dies to accommodate the rivnuts then you can. Otherwise you will have to purchase a rivet gun that contains the rivnut inserts that you choose to use. Each rivnut requires a tool die set to utilize them.

What is a threaded rivet?

A rivet nut, also known as a threaded insert or a blind rivet nut, is a mechanical fastener that, as the name suggests, is a variation of the standard rivet. This one-piece, threaded, counter-bored tubular rivet can be anchored entirely from one side of the material in which it's installed.

Do rivets have nuts?

This is where rivet nuts, which are also known as a blind nuts, blind rivet nuts, or threaded inserts, come in. A variation on the standard rivet, the rivet nut has a tubular round, splined, square, or hexagonal body that is internally threaded and counterbored.

Are rivets stronger than welding?

No matter what you do, your rivets will be in plain sight. ... Last, but not least, generally, riveting is not as strong as welding. If you need the two parts to be capable of withstanding forces that draw the pieces apart, riveted joints will be more likely to fail compared to a properly welded joint.
