Filters in Control Systems Butterworth filters are called maximally flat filters because, for a given order, they have the sharpest roll-off possible without inducing peaking in the Bode plot. The two-pole filter with a damping ratio of 0.707 is the second-order Butterworth filter.

What are the most important factors to design the Butterworth filter?

Butterworth Approximations

We know the output frequency response and phase response of low pass and high pass circuits also. The ideal filter characteristics are maximum flatness, maximum pass band gain and maximum stop band attenuation. To design a filter, proper transfer function is required.

What is special about Butterworth filter?

The Butterworth filter is a type of signal processing filter designed to have a frequency response that is as flat as possible in the passband. It is also referred to as a maximally flat magnitude filter.

Why Butterworth filter is named so?

A Butterworth filter is a type of signal processing filter designed to have a frequency response as flat as possible in the passband. Hence the Butterworth filter is also known as “maximally flat magnitude filter”. ... So, the number of capacitors will decide the order of the filter.

Why is Butterworth filter better?

Butterworth filters have a more linear phase response in the pass-band than Chebyshev Type I and Elliptic filters [11] [12] [13]. The Butterworth filter rolls off more slowly around the cut off frequency than the Chebyshev Type I and Elliptic filters without ripple.

Butterworth Filter - 01 - Introduction

Is Butterworth digital or analog filter?

The Butterworth filter (linear analog filter) can be realized using passive components and active components such as resistors, capacitors, and operational amplifiers with Sallen-key topology.

Is Butterworth filter active or passive?

It is an active filter so the gain can be adjusted if needed. The key characteristic of Butterworth is that it has a flat passband and flat stopband.

What is the order n of the low pass Butterworth filter?

To reduce the noise from the data, a 4th order lowpass Butterworth filter was applied. The Butterworth filter, also called maximally flat magnitude filter, is designed to have a flat frequency response in the passband. The 4th order Butterworth filter has the roll off of −24 dB per octave in the stopband frequencies.

Is Butterworth IIR or FIR?

Specifically, analog filters known as Butterworth, Chebyshev types I and II, and Elliptic (or Cauer) designs can be implemented as IIR digital filters and are supported by the MATLAB Signal Processing Toolbox. Butterworth filters provide a frequency response that is maximally flat in the passband and monotonic overall.

What is first order Butterworth filter?

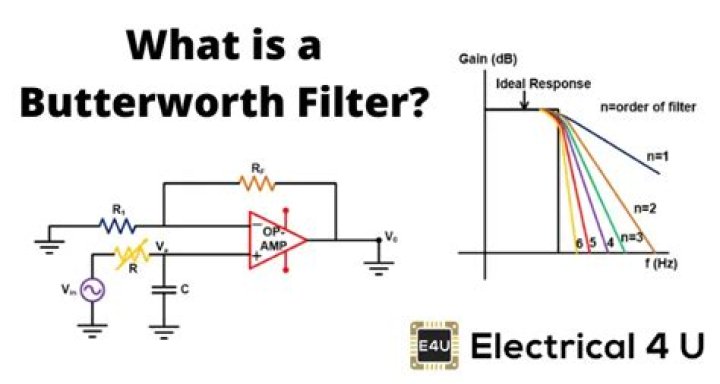

Butterworth filter is a type of filter whose frequency response is flat over the passband region. ... Circuit diagram shown below is a first-order low-pass Butterworth filter that uses RC network for filtering. Loading of the RC network is avoided by using the Op-Amp which is configured for non-inverting mode.

What is the advantage of using a Butterworth type filter when creating a low-pass filter?

A further advantage of the Butterworth filter is that Butterworth filters have a more linear phase response in the pass-band than types such as the Chebyshev or elliptic filters, i.e. the Butterworth filter is able to provide better group delay performance, and also a lower level of overshoot .

Which filter type is called as flat flat filter?

Which filter type is called a flat-flat filter? Explanation: The key characteristic of the butterworth filter is that it has a flat pass band as well as stop band. So, it is sometimes called a flat-flat filter.

Which family of filters have maximum flat phase delay?

Which family of filters have maximum flat phase delay? Explanation: Bessel filters have maximum flat phase delay. Butterworth filters have maximum flat frequency response among all other types of filter. For a specific order and ripple, Elliptic filter has the steepest cut-off curve.

How does Butterworth filter work?

The Butterworth filter is a type of signal processing filter designed to have as flat frequency response as possible (no ripples) in the pass-band and zero roll off response in the stop-band. ... However, in practice this "ideal" frequency response is unattainable as it produces excessive passband ripple.

What happens when order of filter increases?

As the order n increases the steepness of the transfer characteristics from the passband to the topband increases making the filter more selective. ... Higher order filters provided greater roll off rates between pass band and stop band.

What is a second order Butterworth filter?

Second Order Low-Pass Butterworth filter: A stop-band response having a 40-dB/decade at the cut-off frequency is obtained with the second-order low-pass filter. A first order low-pass filter can be converted into a second-order low-pass filter by using an additional RC network as shown in fig.

What is pole in filter?

A pole is a point in the s or z plane at which the transfer function goes to infinity. The s plane is used to analyze analog filters while the z plane is used for digital filters. —

Where does the poles of Butterworth filter lie?

Butterworth poles lie along a circle and are spaced at equal angular distances around a circle. It is designed to have a frequency response which is as flat as mathematically possible in the passband, and is often referred to as a 'maximally flat magnitude' filter.

What is Sallen Key low pass filter?

Sallen-Key low pass filters are the most popular second-order active low pass filter. The design of Sallen-Key filters is similar to voltage-controlled voltage-source (VCVS), with filter characteristics such as high input impedance, good stability, and low output impedance.

What is a Butterworth bandpass filter?

The Butterworth filter is a type. of signal processing filter designed to have as flat a frequency response as. possible in the passband. It is also referred to as a maximally flat. magnitude filter.

How can you improve the performance of a low pass filter?

What you have to do is change its cutoff frequency - the higher the cutoff frequency, the faster the response. Look at it this way. A low-pass filter removes high frequencies, right? And if you want the filter output to change more quickly it must contain more high-frequency components.

What is the gain of a low pass filter?

Thus, the Active Low Pass Filter has a constant gain A_F from 0Hz to the high frequency cut-off point, ƒ_C. At ƒ_C the gain is 0.707A_F, and after ƒ_C it decreases at a constant rate as the frequency increases. That is, when the frequency is increased tenfold (one decade), the voltage gain is divided by 10.

What is Gaussian low pass filter?

Gaussian low-pass filtering is a common post-process operation which is exploited to blur and conceal these discontinuities at the border of tampered objects introduced by copy & paste operation, making the tampered image more realistic.
