The transformers are connected in parallel when load on one of the transformers is more than its capacity. The reliability is increased with parallel operation than to have single larger unit. The cost associated with maintaining the spares is less when two transformers are connected in parallel.

What are the advantages of parallel operation of transformers?

• Maximize electrical system efficiency: Generally electrical power transformer gives the maximum efficiency at full load. ...
• Maximize electrical system availability: ...
• Maximize power system reliability: ...
• Maximize electrical system flexibility:

Why is parallel operation necessary?

Alternators are operated in parallel for the following reasons: Several alternators can supply a bigger load than a single alternator. ... Parallel operation of the alternator, reduces the operating cost and the cost of energy generation. It ensures the greater security of supply and enables overall economic generation.

Can we connect transformers in parallel?

It is possible to connect transformers that have different polarities in parallel. ... The supply line polarity determines the primary polarity of the transformer. The primary polarity determines the secondary polarity of the transformer.

What happens when two transformers are connected in series?

Series Connected Secondary Transformer

As the two windings are connected in series, the same amount of current flows through each winding, then the secondary current is the same at 2.5 Amps.

Paralleling transformers (polarity)

What is parallel transformer?

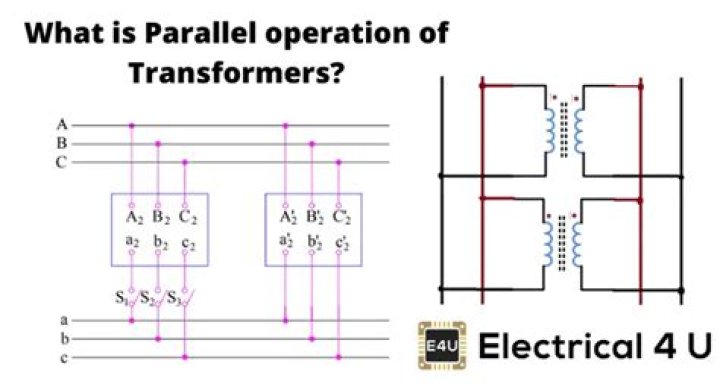

When we connect the primary windings of two transformers to a common supply voltage and the secondary windings of both the transformers to a common load, this type of connection of transformer is said to be the parallel operation of transformers.

What are the conditions to run transformers in parallel connections with proper figure?

1. Same voltage and Turns Ratio (both primary and secondary voltage rating is same)
2. Same Percentage Impedance and X/R ratio.
3. Identical Position of Tap changer.
4. Same KVA ratings.
5. Same Phase angle shift (vector group are same)
6. Same Frequency rating.
7. Same Polarity.

What is the need of parallel operation of single phase transformers?

Need of Parallel Operation in Single Phase Transformers

Firstly, if one transformer fails, the continuity of supply can be maintained through other transformers. Secondly, when the load on the substation becomes more than the capacity of the existing transformers, another transformer can be added in parallel.

What are the conditions required for the parallel operation of alternator?

The phase sequence of the busbar voltages and the incoming machine voltage must be same. The busbar voltages and the incoming machine terminal voltage must be in phase. The terminal voltage of the incoming machine and the alternator which is to be connected in parallel or with the Busbar voltage should be equal.

What is the main advantage of connecting two transformers in parallel?

The advantages of parallel operation of transformers are:Increased reliability and maximized electrical power system availability. This is because it is not necessary to disconnect the whole system if fault occurs with one of the transformers.

What is the necessity of parallel operation of alternators & also state the conditions necessary for paralleling alternators?

This method of adding an alternator in the existing system is called 'parallel operation of alternators'. It is essential to know that the incoming alternator must be paralleled such that each machine is supplying a proportionate amount of active and reactive power to the common load.

What is parallel operation?

Parallel operation is the connec- tion of two or more power sources of the same size and output volt- age to obtain a higher output cur- rent. When connecting in parallel the outputs must be connected together keeping polarity in mind. The output voltage remains the same, but the current increases.

What happens when a stationary alternator is connected in parallel with live bus bar?

Under a stationary condition, the emf induced in stator winding is zero. If such an alternator is connected to a live bus bar, there is always a danger of short circuit as armature resistance is negligible, and reactance is zero (frequency is zero).

Why is parallel operation of transformer performed explain the complete laboratory procedure to perform the test?

Paralleling will increase the power supplying capacity and also the reliability of the system. We do polarity test on parallel transformers to ensure that we connect the same polarity windings and not the opposite ones.

Which test is important for parallel operation of transformer?

Necessary Conditions For Parallel Operation

One is that the Polarities of the transformers must be the same. Another condition is that the Turn Ratio of the transformer should be equal. The voltage at full load across the transformer internal impedance should be equal.

Which type two three phase transformer can be connected in parallel?

Therefore it is essential that transformers belong to the same group number so that the relative phase displacement between the secondary line voltages is zero. However, the transformers of group number 3 &4 can be successfully operated in parallel.

What prevents a stationary alternator from being connected to live bus bars?

A stationary alternator is never connected to live bus-bars, because it will result in short circuit in the stator winding (since there is no generated emf yet). ... Equal voltage: The terminal voltage of incoming alternator must be equal to the bus-bar voltage.

Why three phase alternators are invariably star connected?

A star connected alternator will require less number of turn then a delta connected alternator, for the same line voltage. ... 2. For the same line voltage, a star connector alternator requires less insolutions then a delta connected alternator.

When two alternators are running in parallel if the field of one of the alternator is adjusted it will?

If the field of one of the alternator is adjusted, it will. reduce its speed.

What is circulating current in parallel transformers?

If two or more transformers are connected in parallel, any difference in the voltage produced by the transformers generates a circulating current, as shown in Fig. ... The current is proportional to the voltage difference between the transformers divided by the sum of the impedances around the circulating path.

What are the advantages of parallel operation of alternator Mcq?

1. The alternators are operated is parallel because it. (a) increases the reliability of supply. (b) makes the repairing economical and convenient.

What are the necessary conditions for parallel operation of three phase alternators?

The requirements for paralleling are: (1) the phase rotation of the generated voltage must be the same, (2) the voltage at the paralleling point must be the same, and (3) the frequencies of the generators must match. Lamps and synchroscopes are often used to aid in the paralleling procedure.

Why do we need to synchronize alternators?

The need for synchronization arises when two or more alternators work together to supply the power to the load. Since electrical loads do not remain constant, the two or more generators supplying the power need to be interconnected and operate in parallel to handle larger loads.
