Electricians may position the outlet in an upside-down position so that you can quickly identify the switch-controlled receptacle. Since it stands out visually to most people right away – it provides convenience to the occupants to easily remember which outlet is switch controlled.

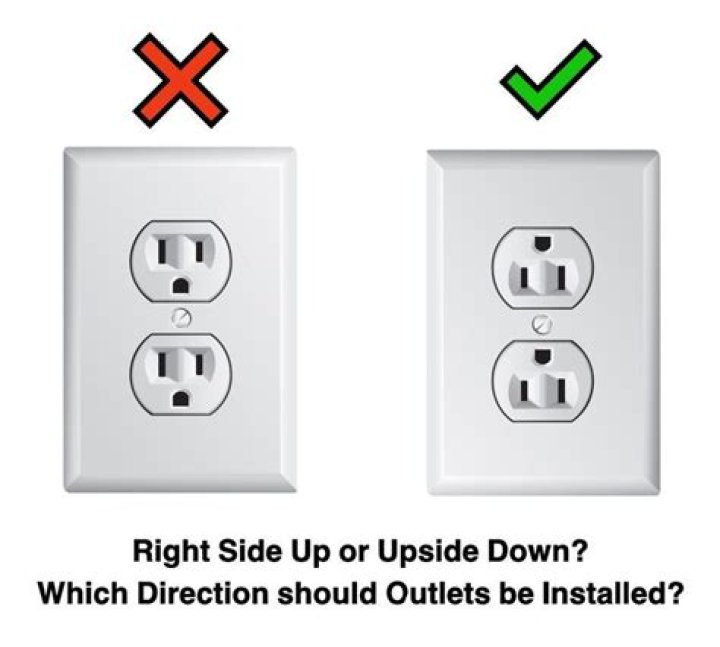

Do outlets have to be installed upside down?

The electrical code allows outlets to be installed with the ground plug hole facing up, down or sideways. It's up to you, there is no standard electric outlet orientation. So that means there really is no such thing as upside down outlets.

Why are receptacles upside down in hospitals?

Because if a cord or wire were to fall down on a partially plugged in right-side up outlet you would short out between the hot and the neutral. When the outlet is "upside down" in the above situation the wire would touch ground first.

Should the ground plug be on top or bottom?

The outlet should be oriented with the ground pin down because a person grabbing the outlet will have their index finger at the bottom side of the plug and the index finger sticks out further than the thumb. Having the ground down will keep a person's index finger from touching the live pins.

Why do some electrical outlets have a horizontal?

Horizontal slot for rotated neutral pin to accommodate a 20 amp plug. 20 amp plugs are sometimes used with shop equipment, window air conditioners, etc. A 20 amp plug can not be plugged into a 15 amp receptacle.

Upside-down outlets?

Why are there holes on the blades of an electric plug?

These round bits fit snugly into the holes in the plug, which helps to provide for a more secure connection. It's why a well-designed plug won't simply fall out of a socket, and it also helps to maintain a better connection between the contact wipers and whatever device/appliance is connected to said plug.

Why do electric plugs have holes in the blades?

These bumps fit into the holes so that the outlet can grip the plug's prongs more firmly. This detenting prevents the plug from slipping out of the socket due to the weight of the plug and cord. It also improves the contact between the plug and the outlet.

What is code for installing electrical outlets?

The US National Electrical Code, Section 210.52, states that there should be an electrical outlet in every kitchen, bedroom, living room, family room, and any other room that has dedicated living space. They must be positioned at least every twelve feet measured along the floor line. ... The US NEC also advises on type.

When did electrical outlets become grounded?

In 1971, the US National Electrical Code (NEC) required grounded receptacles in all locations of the home (effective January 1, 1974).

Can a receptacle be mounted face up?

Receptacles, unless listed as receptacle assemblies for countertop applications, shall not be installed in a face-up position in countertops or similar work surfaces.

What does the green dot on a receptacle mean?

The green dots indicate that the UPS outlets and plug are certified as hospital-grade and may be used within patient-care vicinities.

What do Orange outlets mean?

According to an information article by Scott Spyrka @spyrkaelectric.com, the orange outlets are isolated ground receptacles that can provide electricity directly from a grounding point, meaning they maintain power even if the circuit breaker is tripped or power is interrupted elsewhere.

What is a hospital-grade receptacle?

Hospital-grade receptacles are identified with a green dot on the face of the receptacle, and the words “hospital-grade” usually are stamped on the device's mounting strap. ... The NEC requires listed hospital-grade receptacles in patient bed locations of general care areas as indicated in 517.18(B).

What are cube taps?

Converts single receptacle opening to 3 openings in a short cube shaped device. Usually made from soft brown rubber.

How do I rotate a wall outlet?

Turn off power to the outlet at the breaker box. Use a voltage tester to make sure the power is off. Remove the faceplate and the screws holding the outlet in the junction box with the slotted screwdriver. Gently turn the outlet until it's oriented properly.

What happens if you don't ground an outlet?

Ungrounded outlets increase the chance of: Electrical fire. Without the ground present, errors that occur with your outlet may cause arcing, sparks and electrical charge that can spawn fire along walls, or on nearby furniture and fixtures. Health hazard.

When did Romex get a ground wire?

Plastic or thermoplastic nonmetallic cable such asa that shown below, still referred to by many electricians as "Romex" cable, has been in use since the 1960's and in the U.S. became very widely used in new residential construction by 1970, completely replacing fabric-based wire insulation products.

Are two prong outlets safe?

The main reason two-prong outlets are considered outdated and dangerous is due to their lack of grounding. ... This is what makes two-prong outlets the least safe of any type of outlet. Two-prong outlets have connections only for hot and neutral wire, hence their name.

How high do receptacles have to be off the floor?

Generally, you want to mount receptacle boxes with the bottom of the box about 16-inches off the floor. Coincidentally, this roughly equates to the same height as your garden variety 22-ounce framing hammer.

How high should receptacles be in a garage?

Garage electrical outlet location: In the garage electrical outlets should be 18" or more above floor level.

Is it legal to cover an electrical panel?

Is It Legal To Cover An Electrical Panel? You are allowed to cover your electrical panel but it must be easy to open, can not interfere with the opening of the steel door of the panel and you have to make sure you have full access to all of the breakers.

Why is one prong wider on a plug?

The reason (ungrounded) plugs, such as a toaster, have one prong larger than the other is to ensure the hot wire is tapped correctly. The smaller prong is hot and the larger one is neutral.

What are plug prongs made of?

Plastic or rubber materials are used because they are good electrical insulators. The pins inside the plug are made from brass because brass is a good conductor of electricity.

What are the holes in an outlet called?

The first hole, or left hole, is called “neutral”. The second hole, or right hole, is called “hot”. The third hole is the ground hole. The hot hole is connected to the wire that supplies the electrical current.
