The overall reason for cascading amplifiers is the need for an increase in amplifier output to meet a specific requirement, e.g., to increase the signal strength in a Television or radio receiver. Using a cascade, or multistage, amplifier can provide your design with a higher current gain or voltage gain.

Why is cascading done?

Cascading of amplifier stages is usually done to increase the total gain of the amplifier. However, sometimes cascading is done to get the desired output and input impedance for specific applications. ... forms the voltage gain of the two stage cascade amplifier.

What happens when two amplifiers cascaded?

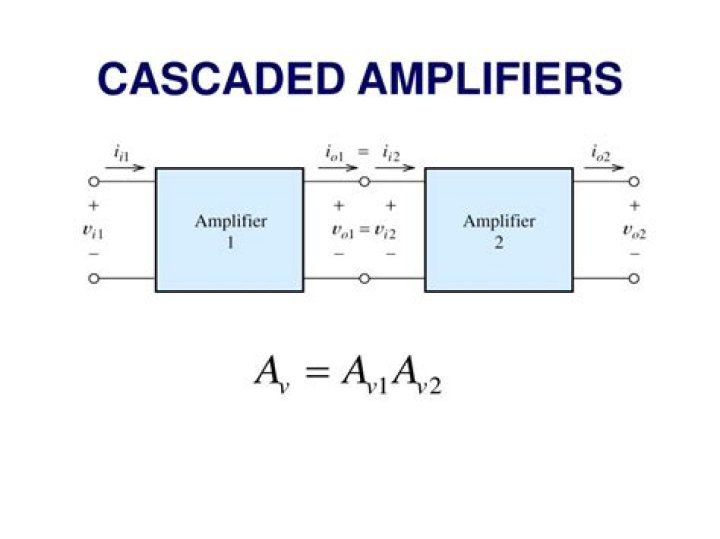

A cascaded amplifier simply means multiple amplifiers lumped together into a single device. The output of one amplifier stage is connected to the input amplifier stage. ... Placing the amplifier stages in series in this way allows more gain to be applied to an input signal.

When amplifiers are cascaded the result is?

Explanation: In cascading, the output of one amplifier is connected to the input of another amplifier. It is used to increase gain while obtaining desired values of input and output resistances.

Why do you cascade amplifiers what is its effect on bandwidth?

Detailed Solution

Note: Cascading Increases lower cutoff and decreases higher cutoff frequency hence bandwidth decreases. In cascading connection voltage gain increases which in turn reduces the bandwidth to maintain a constant gain-bandwidth product. The same analysis is valid for cascading n = 2 amplifiers.

Cascaded Systems

What are the advantages of cascade amplifier?

• Enhanced performance and efficiency.
• Maximum flatness levels.
• Minimal noise figure in the range of 1-10GHz.
• Increased gain.
• Increased bandwidth allows the devices to be widely employed for high-voltage amplifier purposes.
• Hight input and output impedances.

What is a cascade connection?

[ka′skād kə′nek·shən] (electronics) A series connection of amplifier stages, networks, or tuning circuits in which the output of one feeds the input of the next. Also known as tandem connection.

What is the definition for cascaded?

Full Definition of cascade

: to fall, pour, or rush in or as if in a cascade The water cascaded over the rocks. Her hair cascaded down around her shoulders. transitive verb. 1 : to cause to fall like a cascade. 2 : to connect in a cascade arrangement.

What is difference between Cascade and cascode?

The difference between cascade and cascode amplifiers is that in cascade amplifiers the transistors are connected in series. Whereas in cascode amplifier transistors are connected in parallel. ... While in a cascode amplifier, the transistor is placed one above the other.

What is cascaded BJT amplifier?

A cascade amplifier is a two-port network designed with amplifiers which are connected in series when every amplifier transmits its o/p to the second amplifiers input in a daisy chain. The problem in measuring the gain of the cascaded stage is the non-perfect coupling among two stages because of loading.

What are the characteristics of cascade amplifier?

The cascode is a two-stage amplifier that consists of a common-emitter stage feeding into a common-base stage. Compared to a single amplifier stage, this combination may have one or more of the following characteristics: higher input–output isolation, higher input impedance, high output impedance, higher bandwidth.

What is meant by cascading in electronics?

Cascade connection means that two or more stages are connected together in a way that output of previous stage is connected to input of next stage and so on.

How do you calculate cascade gain?

For example, if a 1st and 2nd stage in a cascade have power (as opposed to voltage) gains of 3.01 dB (multiplication factor of 2) and 10.0 dB (multiplication factor of 10), respectively, then the total gain is: 3.01 + 10.0 = 13.01 dB, or a multiplication factor of: 2 x 10 = 20 [check: 10 * log₁₀ (20) = 13.01 dB].
