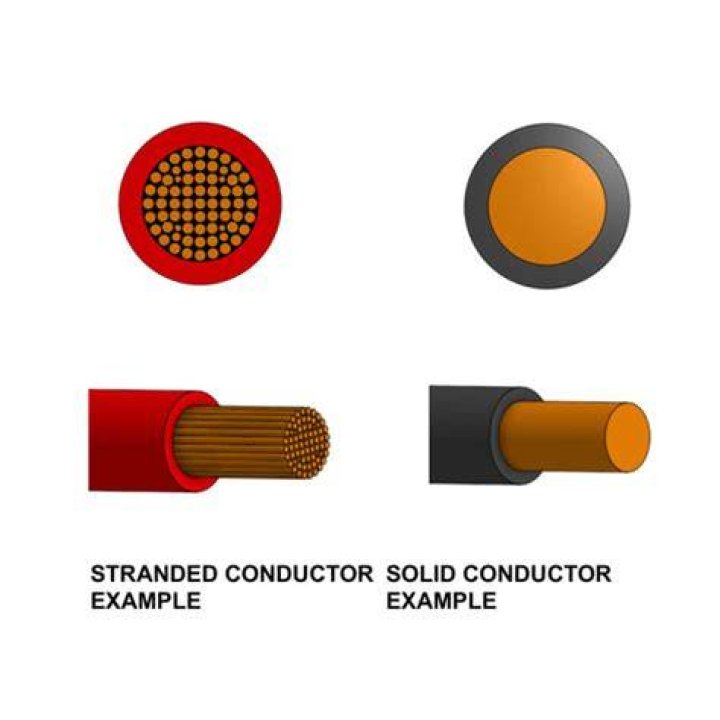

Solid conductors are made of one single piece of wire, such as the bare thermocouple wire. The solid conductors are rigid and simple. Due to the thickness of the wires, they have a high resistance. However, they are also quite prone to breakage since they are not as flexible as standed wires.

Why are solid conductors?

In general, solid cables are better electrical conductors and provide superior, stable electrical characteristics over a wider range of frequencies. They are also considered more rugged and less likely affected by vibration or susceptible to corrosion since they have less surface area than stranded conductors.

Where is a solid conductor used?

Solid cable is built with one strand or the core of a wire that has non-conductive material for insulation. This type of cable is used for home electrical wiring, wiring for breadboards and other situations where wires are not required to be constantly flexed.

What is the largest solid conductor?

The correct answer for the largest size solid conductor that is permitted to be installed in a raceway is 10 AWG.

Is solid copper a conductor?

Solid copper conductors means the cables wires are one long solid wire instead of multiple copper strands forming one wire like stranded cable. ... For networking cable purposes like Cat5e, Cat6, Cat6A, etc you want your cables to be pure copper.

What is stranded wire || What is solid wire || stranded conductor || solid conductor || stranded

Is Aluminium a conductor?

Aluminium is versatile: it is not only a universal structural material, but also a perfect electricity conductor. Today, along with copper, aluminium ensures power transmission worldwide.

Is gold a conductor?

Gold is used as a contact metal in the electronics industry as it is a good conductor of both electricity and heat. ... Gold wire Gold is ductile: it can be drawn out into the thinnest wire. © AMNH / Craig Chesek. Gold conducts heat and electricity.

What is the largest gauge solid wire?

American wire gauge (AWG) is a standardized wire gauge system for the diameters of round, solid, nonferrous, electrically conducting wire. The larger the AWG number or wire guage, the smaller the physical size of the wire. The smallest AWG size is 40 and the largest is 0000 (4/0).

What are the qualifications of parallel conductors?

All of the paralleled conductors in each phase, neutral or grounded set must be the same length and be made from the same conductor material. They must be the same circular mil area and have the same type of insulation. Finally, all parallel conductors must be terminated in the same manner.

What determines the ampacity of a wire?

The ampacity of the wire is determined by the amount of current in the wire at the point in which the conductor's temperature rises 30°C. The ampacity rating of higher temperature rated wires is greater than lower temperature rated wires for any given size of conductor.

What stranded conductor?

Stranded conductors are made of multiple small strands, which group together to make up a single conductor. It is more flexible than a solid conductor, but less durable. Bunch stranding is a collection of strands twisted together in the same direction without regard to the geometric arrangement.

What is the shape of conductor?

Hence, the shape of a current-carrying conductor is a solenoid.

What does Thhn mean?

THHN stands for Thermoplastic High Heat-resistant Nylon-coated. THWN wire is the same, but the "W" stands for water-resistant. The main difference between these two standards is their maximum temperature in wet locations.

What is the difference between TW and THW?

THW wire– Indicates a single conductor having flame-retardant, moisture and heat-resistant thermoplastic insulation. The wire is rated 75°C wet or dry. ... d.TW wire– Indicates a single conductor having flame-retardant, moisture-resistant thermoplastic insulation.

What is composite conductor?

A composite conductor consists of two or more strands of different metals, such as aluminum and steel, or copper and steel (i.e., ACSR, ACAR, AWAC). A conductor consisting throughout its length of two or more metal conductors providing parallel paths sharing the load.

How many conductors are in a phase?

Conductors must be installed in groups consisting of at least three conductors per phase. B: Conductors shall be installed in groups consisting of not more than one conductor per phase, neutral, or grounded conductor to prevent current imbalance in the paralleled conductors due to inductive reactance.

What tests are done for cable?

• Persulphate test (for copper)
• Annealing test (for copper)
• Tensile test (for Aluminium)
• Wrapping test (for Aluminium)
• Conductor resistance test (for all)
• Test for thickness of insulation (for all)

Is code for XLPE cable?

1.0 Power cable of 1.1 kV grade, Multi-stranded Aluminium/Copper conductor, XLPE insulated, extruded PVC inner sheathed, GI round- wire armoured, extruded FRLS PVC ST2 outer sheathed, conforming to IS: 7098 (Part-I), 1988 ad as per the technical specifications listed in Section-A of the tender document.

Whats bigger 1 0 or 2 0 wire?

1/0 is 0 AWG, 2/0 is 00 AWG, 3/0 is 000 AWG and so on with more zeros being thicker wire. ... Pure aluminum wire is equivalent in current carrying capacity of a copper wire two gauges smaller, so pure aluminum 1/0 wire is equivalent to 2 AWG copper wire...

What is the difference between 1 0 and 1 AWG?

But looking at the title of this thread, are you referring the difference between #1 AWG and 1/O AWG? There is a difference, 1/O is one wire size larger.

What is SWG of a wire?

British Standard Wire Gauge (often abbreviated to Standard Wire Gauge or SWG) is a unit for denoting wire size given by BS 3737:1964 (now withdrawn). It is also known as the Imperial Wire Gauge or British Standard Gauge. ... SWG was fixed by Order of Council August 23, 1883.

Is diamond a conductor?

Diamond is the most highly prized of gemstones. ... Along with its carbon cousins graphite and graphene, diamond is the best thermal conductor around room temperature, having thermal conductivity of more than 2,000 watts per meter per Kelvin, which is five times higher than the best metals such as copper.

Is rubber a conductor?

The flow of electricity is called current. Metals are generally very good conductors, meaning they let current flow easily. Materials that do not let current flow easily are called insulators. Most nonmetal materials such as plastic, wood and rubber are insulators.

Is oil a conductor?

Oil is an insulator and is a bad conductor of electricity. Complete step by step answer: The oil by nature does not conduct electricity. ... The conductivity is dependent on several factors like base oil, water content, other additives and polarity.
