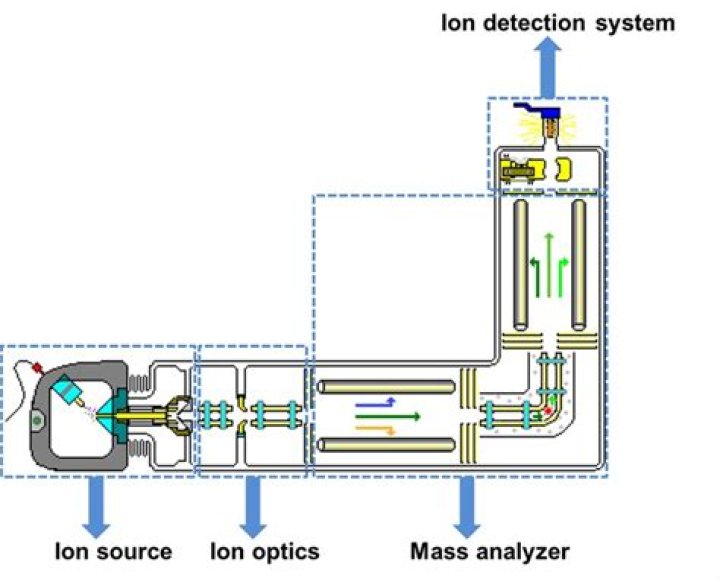

Triple-quad mass spectrometry technology was invented by Christie G. Enke and Richard A. Yost in the late 1970's. For a basic triple-quad instrument, two linear quadrupole analyzers are connected by a third quadrupole, where collision gas is introduced to fragment the ions.

Who invented mass spectrometer?

The first mass spectrometer - originally called a parabola spectrograph - was constructed in 1912 by J.J. Thomson, best known for his discovery of the electron in 1897. He used the mass spectrometer to uncover the first evidence for the existence of nonradioactive isotopes.

What is a triple-quadrupole mass spectrometer used for?

The triple quadrupole mass spectrometer allows for increased sensitivity and specificity yielding lower detection and quantitation limits. ... One of the more common uses of a triple quadrupole mass analyzer is for structural elucidation, which provides information about fragmentation patterns.

What is the difference between single quadrupole and triple quadrupole?

Single quadrupole systems contain only one mass filtering quadrupole while triple quadrupole systems consist of three quadrupoles. ... During a mass scan, DC and RF voltages are ramped resulting in the acquisition of full scan mass spectra. Such spectra are typically used for qualitative data analysis.

What is RF in mass spectrometry?

When the AC is oscillating in the range of 3 kHz to 300 GHz it is referred to as radio frequency (RF). ... Ultimately, ions are controlled and measured in a mass spectrometer through the application of DC and AC, often in the RF range.

A look back at the birth of the triple quadrupole mass spectrometer

What is MRM in Lcmsms?

MRM stands for Multiple Reaction Monitoring. * MRM is also called SRM (Selected Reaction Monitoring). ... In analyses with a significant amount of potential interferences, such as analysis of pesticides in foods, LCMS is sometimes inadequate because high background levels are observed.

What is the role of the second quadrupole q2 in a triple-quadrupole mass spectrometer?

The second quadrupole serves as a collision cell to break the peptide into fragments. The third quadrupole functions as a second mass filter for specified m/z fragments from the initial parent peptide.

What is LC triple quad?

Liquid Chromatography Triple Quadrupole Mass Spectrometry (LC-MS/MS) ... LC-MS/MS separates chemical compounds using traditional liquid chromatography, the analytes are then directed into a series of quadrupoles where they are ionized as the molecular ion then fragmented and selected fragments are detected and quantified.

Who discovered mass spectrometer Mcq?

3. Who discovered the mass spectrometer? Explanation: The mass spectrometer was invented by JJ THOMSON.

What is FAB MS?

Fast atom bombardment (FAB) is an ionization technique used in mass spectrometry in which a beam of high energy atoms strikes a surface to create ions. ... When a beam of high energy ions is used instead of atoms (as in secondary ion mass spectrometry), the method is known as liquid secondary ion mass spectrometry (LSIMS).

Who discovered mass?

Newton's books on universal gravitation were published in the 1680s, but the first successful measurement of the Earth's mass in terms of traditional mass units, the Cavendish experiment, did not occur until 1797, over a hundred years later.

What is Triple TOF?

TripleTOF® 5600+ System - an innovative breakthrough in LC/MS/MS performance that uniquely integrates comprehensive qualitative exploration, rapid profiling, and high-resolution quantitation workflows on a single platform.

What is quadrupole MS system?

A quadrupole mass spectrometer contains four parallel cylindrical rods which can scan or filter sample ions based on their mass-to-charge ratio. ... This type of spectrometry is useful when studying particular ions of interest since it is able to stay tuned to a single ion for extended periods of time.

How does a quadrupole mass spectrometer work?

A quadrupole mass analyzer consists of a set of four conducting rods arranged in parallel, with a space in the middle; the opposing pairs of rods are electrically connected to each other. ... The field is generated when a radio frequency (RF) voltage is applied between one pair of opposing rods within the quadrupole.

What is the difference between TOF and QTOF?

Single stage TOF instruments measure the accurate mass of all ions entering the flight tube. ... Addition of a quadrupole and a collision cell to a TOF forms a QTOF, a more expensive instrument that is able to isolate and fragment specific ions, as well as measure accurate mass.

What is the purpose of coupling a quadrupole and TOF?

Q-TOF mass spectrometers combine TOF and quadrupole instruments, a pairing that results in high mass accuracy for precursor and product ions, strong quantitation capability, and fragmentation experiment applicability.

What is the difference between orbitrap and Qtof?

With a QTOF you are already in a range of mass accuracy of about 1-2 ppm and a resolution R = 30000 to 50000. Orbitraps have a mass accuracy in the sub-ppm range and are even better in resolution.

What is the difference between SRM and MRM?

SRM is monitoring only a single fixed mass window, while MRM scans rapidly over multiple (very narrow) mass windows and thus acquires traces of multiple fragment ion masses in parallel. So MRM is the application of SRM to multiple product ions from one or more precursor ions.

What is SRM mode?

Selected reaction monitoring (SRM) is a highly sensitive and selective method for the targeted quantitation of peptides and, by inference, the corresponding proteins in complex biological samples. ... The application of SRM to multiple product ions is referred to as multiple reaction monitoring (MRM).

What MRM means?

Marketing resource management, or MRM, is the software infrastructure that supports marketing operations– that is, the delicate balance of technology, creative and logistic processes, and your team, to execute marketing activities successfully. ... resource measurement.

Which is called Heart of quadrupole instrument?

Explanation: Electrodes are the heart of quadrupole instrument.

What is LC QqQ?

A determination method to identify and quantify 18 multi-class antibiotics in urine was developed using liquid chromatography triple quadrupole tandem mass spectrometry (LC-QqQ-MS/MS). ... Excellent recovery in the range of 73-136% was achieved for most antibiotics, except macrolides whose recovery were of 52-78%.

What is ion trap mass spectrometer?

An ion trap mass spectrometer functions both as a mass spectrometer of considerable mass range and variable mass resolution and as an ion store in which gaseous ions can be confined. Unlike other mass spectrometers that operate at pressures o10 ⁻⁶ Torr, the ion trap operates at 1 mTorr of helium.

Which analyzer is more significant TOF or quadrupole?

The advantages of time-of-flight mass analyzers compared to quadrupoles are clear. Samples can be measured faster and with no spectral skewing. For the same mass range, a TOF analyzer will measure each ion more sensitively.
