Spanning Tree Protocol: ExtremeXOS supports IEEE 802.1D STP, 802.1w RSTP and 802.1s MSTP. In Extreme Multiple Instance STP mode, ExtremeXOS allows a port or VLAN to belong to multiple STP domains and therefore adds flexibility to STP network design, further increasing resiliency.

Which spanning tree protocol is enabled by default in ExtremeXOS?

Cisco developed the Per VLAN Spanning Tree Protocol as the obvious generalization of STP to VLAN based Ethernet networks. Each VLAN (Virtual Local Area Network) needs to be loop-free.

What is Exos switch?

ExtremeXOS is the software or the network operating system used in newer Extreme Networks network switches. It is Extreme Networks second generation operating system after the VxWorks based ExtremeWare operating system. ExtremeXOS is based on the Linux kernel and BusyBox.

What is Exos router?

EXO Smart Mesh Wi-Fi Routers pack a powerful dual-core processer. to handle buffer-free video streaming and lightning-fast gaming with ease. And with a range of wireless speeds from AC1300 to AC3000, there's an. EXO router to fit any home networking need, at any budget.

Which command can be used to verify the EAPS configuration?

2. On the BlackDiamond 10808 and Alpine 3808, verify that each EAPS ring is enabled and up by entering the command show eaps.

Spanning Tree Protocol Explained | Step by Step

What is protocol 802.1 D used for?

802.1D is the IEEE Media Access Control (MAC) Bridges standard which includes the Spanning Tree Protocol (STP) and Bridging. It details linking to other 802 projects, including the Ethernet and Wi-Fi standards.

Should I enable 802.1 D Spanning Tree?

Using legacy 802.1D

It works well despite its age, and you'll find this type of spanning tree on just about every switch. Any switch that doesn't support 802.1D is only useful in small isolated environments, and should never be connected to any other switches.

What is Spanning Tree Cisco?

Spanning-Tree Protocol implements the 802.1D IEEE algorithm by exchanging BPDU messages with other switches to detect loops, and then removes the loop by shutting down selected bridge interfaces. ... This algorithm guarantees that there is one and only one active path between two network devices.

What is STP and how it works?

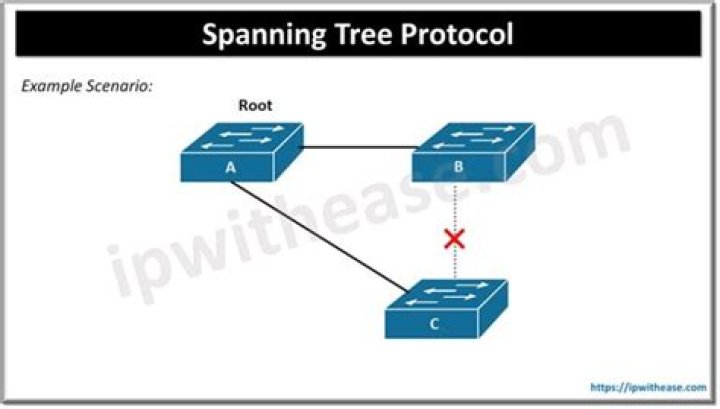

STP uses the Spanning-Tree Algorithm (SPA) to create a topology database of the network. To prevent loops, SPA places some interfaces in forwarding state and other interfaces in blocking state. ... all switches in a network elect a root switch. All working interfaces on the root switch are placed in forwarding state.

What is STP in CCNA?

Spanning Tree Protocol (STP) is a network protocol designed to prevent layer 2 loops. It is standardized as IEEE 802. D protocol. STP blocks some ports on switches with redundant links to prevent broadcast storms and ensure loop-free topology. ... STP prevents loops by placing one of the switch ports in blocking state.

Why we use STP protocol?

Spanning Tree Protocol (STP) is a Layer 2 network protocol used to prevent looping within a network topology. STP was created to avoid the problems that arise when computers exchange data on a local area network (LAN) that contains redundant paths.

What is Spanning Tree Protocol STP and how does it prevent loops?

The Spanning Tree Protocol (STP) is a network protocol that is used to eliminate bridge loops in Ethernet LANs. STP prevents network loops and associated network outage by blocking redundant links or paths. The redundant paths can be used to keep the network operational if the primary link fails.

Is Spanning Tree Protocol still used?

Spanning Tree Protocol (STP) is dead, or at least it should be. ... STP still only has one focal point (root) and can only have one forwarding path toward that one device. Yes, we can use technologies like EtherChannel to help hide portions of the topology for STP, but STP does NOT do multipath forwarding!

Is Spanning Tree Protocol Cisco proprietary?

Cisco developed, implemented and published the Per-VLAN Spanning Tree (PVST) proprietary protocol using its own proprietary Inter-Switch Link (ISL) for VLAN encapsulation, and PVST+ which uses 802.1Q VLAN encapsulation. Both standards implement a separate spanning tree for every VLAN.

Should I enable STP?

Broadcast storms caused by loops can slow or stop traffic on your network, but STP can prevent loops by ensuring that only one path between each set of switches is active. ... You must enable or disable STP or RSTP for each network location in which you are using Insight Managed Switches.

Is STP enabled by default?

STP is enabled by default on devices running Layer 2 code. STP is disabled by default on devices running Layer 3 code. You can enable or disable STP on the following levels: Globally - Affects all ports and port-based VLANs on the device.

Can STP and RSTP be mixed?

It is possible to mix PVST and MST (RSTP requires MST), but it needs some planning, and it can be fragile, as you have discovered. You would probably be better off using the same STP version across all your switches. You could change the STP on the Cisco switches to match the rest of the switches.

How do I set up an extreme switch IP address?

1. Power up your switch and connect to it via console: ...
2. Configure an IP address on the Default VLAN. ...
3. Connect your PC to the Switch/VLAN, and add a static IP to it.
4. Ping the switch IP from your PC to make sure it works.

How do I find the MAC address of my extreme switch?

If only the IP address is known, the MAC address can be determined by checking the ARP table of the devices gateway/router. Issue the "show iparp <IP_ADDRESS>" command. NOTE: The switch will only populate ARP entries on a VLAN that is configured for the same subnet as the connecting device.

How do you save configuration on extreme switch?

In the GUI, go to Maintenance > Configuration > Save startup-config. On the page that displays, click the Save Configuration button.

What is a giga spire?

The Gigaspire is a next-generation WiFi system. Leveraging the latest advancements in WiFi technology, including WiFi 6 (also known as the 802.11ax WiFi standard), it combines blazing-fast speeds with whole-home coverage to give you an unrivaled online experience.

What is a GigaSpire GS4220E?

The Calix GigaSpire® BLAST® u6. 1 (GS4220E) is a new generation smart home system that extends the access network into the home and acts as a strategic location for control of the ultimate Wi-Fi experience.

What is a Calix GigaSpire?

The Calix GigaSpire MAX is a next-generation smart home system. Leveraging the latest advancements in Wi-Fi technology, including the 802.11ax Wi-Fi standard (also known as 'Wi-Fi 6'), it combines blazing-fast speeds with whole-home coverage to give you an unrivaled online experience.
