The transformer can either increase the output voltage as compared to the input voltage or it can do the reverse of it. In all this process, the voltage changes and so does the electric current but the frequency remains unchanged.

Which quantity does not change in a transformer?

A transformer does not change the frequency of ac.

What remains constant in a transformer?

A transformer changes Voltages and current but the power remains constant but that is case only for ideal transformer, in general there is loss in power in form of heat , sound , vibrations, eddy currents , etc . Only the frequency remains constant.

Which does not change in transformer?

A transformer is a static device that converts electrical power from one circuit to another without changing its frequency. So that input and out supply frequency always remain the same.

Is current constant in a transformer?

The primary current remains constant for all loads, but the power factor varies with the load, thereby changing the primary input. Since the secondary voltage increases with the load, regulator size should be restricted to keep the secondary voltage within desired limits.

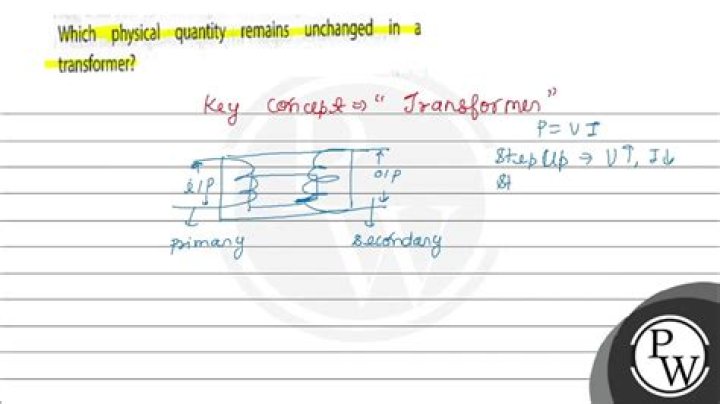

Quantity that remains unchanged in a transformer is

What is CT meter?

A current transformer (CT) is a type of transformer that is used to reduce or multiply an alternating current (AC). ... Current transformers are the current-sensing units of the power system and are used at generating stations, electrical substations, and in industrial and commercial electric power distribution.

Why CT secondary is earthed?

Because the primary depends on the secondary, when the secondary connection gets grounded or shorted, then it takes little voltage for the primary to operate. ... If the secondary is not connected to a load, then it tries to maintain the counter magnetic field, and voltage levels may skyrocket.

Which of the following electrical quantity does not change in a transformer?

The transformer can either increase the output voltage as compared to the input voltage or it can do the reverse of it. In all this process, the voltage changes and so does the electric current but the frequency remains unchanged.

Which quality is constant with change in load of the transformer?

Explanation: As we know, the transformer has primarily two types of losses Iron loss and copper loss. Iron loss is always constant, whereas copper losses are varying with a load. Both hysteresis loss and eddy current loss do not depend upon load current, which means iron losses are constant with varying load.

Does power change in a transformer?

In a transformer, secondary current depends on the load and the primary current depends upon the load current and turns ratio. So, as the current decreases with increasing voltage and current increases with decreasing of voltage that is why power does not change in Transformer.

What happen if frequency change in transformer?

What happened with change in frequency on electrical transformer. So if frequency increases, the secondary voltage or emf increases. And secondary voltage decreases by the reduction of supply frequency. ... But with high frequency there is increase in transformer losses like core loss and conductor skin effect.

Why is the frequency of a transformer constant?

It is clear that the frequency of output/induced voltage Vin is ω which is same as that of the input current. Hence, in a transformer, the frequency remains unchanged (constant) as flux changes.

Which of the following quantity remains constant in uniform circular motion?

Answer: (2) speed

When a body is in uniform circular motion, its speed remains constant but its velocity, angular acceleration, angular velocity changes due to change in its direction.

Which quantity is increased in step down transformer?

In step-down transformer, voltage decreases and corresponding current increases.

Which of the following is not a part of transformer?

Which of the following is not a part of transformer installation? Explanation: Conservator, breather, Buchholz relay are the parts which are much important in transformer construction in order to maintain temperature of the transformer and to work transformer with good efficiency.

Which of the following Cannot be stepped up in a transformer?

When a d.c voltage source is applied across the primary of the transformer,the current in the primary coil remains constant. Hence there is no change in the magnetic flux linked with the secondary. Therefore the voltage across the secondary coil is zero. Thus a transformer can't step up dc voltage.

Which insulation is used in transformer?

The solid insulation materials widely used in the transformer are paper, press- board, and transformer board, which are formed from the cellulose found in plants. Cellulose insulation with mineral oil has played a major role as the main insulation system for transformers for a very long time.

What does a transformer change?

Transformers change the voltage of the electrical signal coming out of the power plant, usually increasing (also known as "stepping up") the voltage. ... Transformers also reduce ("step down") the voltage in substations, and as distribution transformers.

Does a transformer change AC to DC?

A transformer cannot convert AC to DC or DC to AC. The transformer has the ability to step up or decrease current. A step-up transformer is a transformer that raises the voltage from the primary to the secondary. The voltage is reduced from primary to secondary by the step-down transformer.

Where the tappings are provided in a transformer?

Normally the tapings are provided at the middle of high voltage winding due to the following reasons, 1) Fine voltage regulation is possible with high voltage winding as it carries a large number of turns. 2) The low voltage winding of the transformer carries a large current.

Which of the following is NOT feature of an ideal transformer?

An ideal transformer has infinite primary and secondary inductances. Explanation: The primary and secondary windings have zero resistance. It means that there is no ohmic power loss and no resistive voltage drop in the ideal transformer.

Why is PT grounded?

Unlike Current Transformer (CT), PTs are connected in line to ground as shown in figure below. ... Therefore the current through the secondary circuit is low. But when we short the secondary of PT, a high current will flow thorough the secondary circuit. This is because of low voltage regulation.

What is P1 and P2 in current transformer?

P1 indicates the side on which the current source is located, whilst P2 indicates the load side.

Why are CTs shorted?

Current transformers are intended to be used as proportional current devices. ... Very high voltages will result from open circuiting the secondary circuit of an energized current transformer so their terminals must be short-circuited if the ammeter is to be removed or when a CT is not in use before powering up the system.

What is difference between HT and LT?

HT means high tension or high voltage, where in a small current is used with a very high voltage(for creating plasma). LT means low tension where in a low voltage is used with very high current(for heating the resistive boats).
