In short, to avoid failures, centrifugal pumps must always be primed before operating. Positive displacement pumps are self-priming with suction lift capability, but always check the operation manual or confer with an engineer to ensure the pump will properly function at start up without priming first.

Which pumps need priming?

Normally, Centrifugal pumps need priming and Positive Displacement Pumps (Rotary Pumps, Reciprocating Pumps) does not require priming. However, for the first time operation all pumps need priming to avoid overheating and failure by dry running condition.

Does centrifugal pump need priming?

Priming simply means preparing or getting something ready for operation. For a centrifugal pump to work properly, you need to fill it up with water. ... Most centrifugal pumps are incapable of pumping vapours or gases and continuously doing so will damage the pump impeller.

How do I know if my pump needs to be primed?

If you turn on the tap at your kitchen sink and no water comes out of the spout, your pump may have lost its prime. Check to ensure your pump's circuit breaker hasn't tripped and caused the well to lose power. If the pump's breaker isn't tripped, you may need to prime your pump to make the water start flowing again.

Which pump does not need priming?

Priming is not required when pump is submerged (Submersible or Vertical Sump Pumps). Priming is not required when the pump is at a lower elevation than the supply and this ensures that pump suction will be completely filled with liquid at all times (known as “Flooded Suction Condition”). Self Priming Pumps.

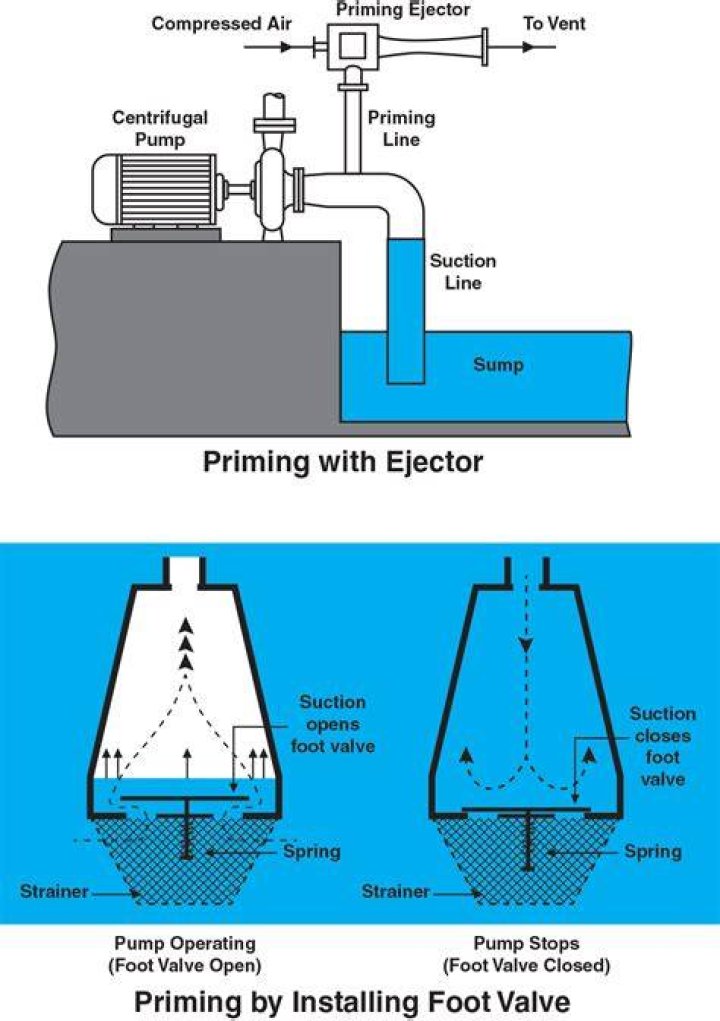

Priming of Centrifugal Pump

Does a water pump need to be primed?

If you've turned your water pump off over the winter months, chances are that it has run out of pressure. To get it working again, your water pump will need to be primed. This means that water will need to be flushed back into the pump and forced through - this creates the pressure it needs to begin pumping again.

What is pump primer?

Pump priming is the action taken to stimulate an economy, usually during a recessionary period, through government spending and interest rate and tax reductions. The term pump priming is derived from the operation of older pumps - a suction valve had to be primed with water so that the pump would function properly.

How is primer used for a pump?

In its priming mode, the pump essentially acts as a liquid-ring pump. The rotating impeller generates a vacuum at the impeller's 'eye' which draws air into the pump from the suction line. At the same time, it also creates a cylindrical ring of liquid on the inside of the pump casing.

Why do you have to prime a pump?

Priming is the process of removing air from the pump and suction line to permit atmospheric pressure and flooding pressure to cause liquid to flow into the pump. Without priming, pumps will cease to function and break down.

What is need of priming in centrifugal pump method?

Priming simply means preparing or getting something ready for operation. For a centrifugal pump to work properly, you need to fill it up with water. When everything is right, a standard (non-self-priming) centrifugal pump looks like this. The pump will resume operation once the air is removed.

Which pump is more efficient?

Where different pump designs could be used, the centrifugal pump is generally the most economical followed by rotary and reciprocating pumps. Although, positive displacement pumps are generally more efficient than centrifugal pumps, the benefit of higher efficiency tends to be offset by increased maintenance costs.

What is pump cavitation?

Cavitation occurs when the liquid in a pump turns to a vapor at low pressure. It occurs because there is not enough pressure at the suction end of the pump, or insufficient Net Positive Suction Head available (NPSHa). When cavitation takes place, air bubbles are created at low pressure.

Are diaphragm pumps self priming?

A diaphragm pump is a positive displacement pump that uses a combination of reciprocating action and either a flapper valve or a ball valve to transfer liquids. ... Diaphragm pumps are self priming and are ideal for viscous liquids.

What is priming system?

Priming is the process of replacing air in the intake lines and portions of the pump with water. ... A Waterous priming system consists of a priming pump and a priming valve. The priming pump draws air out of the centrifugal pump through the priming valve.

How do you prime a 12v water pump?

Step #1 Fill up your fresh water tank. Step #2 Turn on the cold water in your RV and make sure the faucets are completely open. Step #4 This should prime the pump by pushing water up from the tank through your faucet. Let the water flow a while, then turn the faucets off.

Why is my well pump not priming?

If your well water pump won't prime, it might be due to defective foot valves, check valves or pipe leaks. Without priming, the pump will run, but the water delivery stops or you'll have low water pressure.

What are diaphragm pump used for?

What is a diaphragm pump? Also known as a Membrane pump that uses a combination of the reciprocating action of a rubber, thermoplastic or PTFE and suitable valves on either side of the body (check valve, butterfly valves, flap valves, or any other form of shut-off valves) to pump a fluid.

What is flooded suction pump?

Flooded suction pumps

Pumps are usually designed to pump liquids and consequently need to have a positive suction pressure. To start successfully, they must be completely flooded with the fluid to be pumped. ... Today, pumps with flooded suction are CP's standard. This priming method is necessary in most pumping systems.

What is pump suction pressure?

Suction pressure is how much water your pump can suck in through its inlet. ... This represents how far down your water pump can lift water up from into itself.

What is centrifugal pump cavitation?

Cavitation Defined: Cavitation is the formation and accumulation of bubbles around a pump impeller. This tends to form in liquids of any viscosity as they are being transported through and around a pump system. When each of these tiny bubbles collapses or bursts, it creates a high energy shock wave inside the liquid.

Which pump is used for high pressure?

Generally, a radial-flow pump operates at higher pressures and lower flow rates than an axial- or a mixed-flow pump.

Which pump is used for viscous fluid?

Generally speaking, centrifugal pumps are most suitable for low viscosity fluids, since the pumping action generates high liquid shear. As viscosity increases, pump performance diminishes due to friction loss.

Which pump is best centrifugal or reciprocating?

Reciprocating pumps can be more efficient than centrifugal pumps, if they are used in the correct application. Reciprocating machines are generally applied on low-flow and high-head service. Centrifugal pumps can have efficiencies as low as 20 percent on low-flow and high-head service.

What is difference between centrifugal pump and self priming pump?

The main difference between self-priming pump and centrifugal pump is that the inlet pipe of self-priming pump can suck up the water without filling the bottom valve for the first time, and no further water is needed later.
