The advantages of superheterodyne receiver are many. An obvious advantage is that by reducing to lower frequency, lower frequency components can be used, and in general, cost is proportional to frequency. RF gain at 40 GHz is expensive, IF gain at 1 GHz is cheap as dirt.

What are advantages of superheterodyne receiver?

The superheterodyne receiver offers superior sensitivity, frequency stability and selectivity. Compared with the tuned radio frequency receiver (TRF) design, superhets offer better stability because a tuneable oscillator is more easily realized than a tuneable amplifier.

What are the advantages of a superheterodyne receiver Mcq?

Superheterodyne receiver:

The advantage of using heterodyne receivers is that all the incoming signal frequencies are converted into a fixed frequency called the intermediate frequency.

What is the advantage of intermediate frequency in superheterodyne receiver?

In receivers like the TRF in which the filtering is done at the incoming RF frequency, as the receiver is tuned to higher frequencies, its bandwidth increases. The main reason for using an intermediate frequency is to improve frequency selectivity.

What are the advantages of the frequency conversion process in a superheterodyne receiver?

• Automatic detection in the RF amplifier and increased sensitivity.
• Automatic soft-limiting and automatic squelching.
• Increased selectivity and optimal tuned circuit design.
• Automatic squelching and increased sensitivity.

Super Heterodyne Receiver basics, working, block diagram & Image Frequency by Engineering Funda

What is the advantage of receiver?

➨As it converts high frequency to low frequency, all processing takes place at lower frequencies. The devices are cheaper at such lower frequencies compare to higher frequencies. ➨It is easy to filter IF signal compare to RF signal.

What are the advantages of double conversion receiver?

Reason for using double superheterodyne radio receiver

Making the IF as high as possible enables the image response to be as far away as possible from the wanted signal, making the RF filtering to remove the unwanted response much easier, and much better levels of rejection can be obtained.

Which of the following is not an advantage of using RF amplifiers in the initial stage of signal selection?

10. Which of the following is not an advantage of using RF amplifiers in the initial stage of signal selection? Explanation: The use of RF amplifiers in the initial stage of signal selection reduces the effect of noise.

What is the principle of superheterodyne receiver?

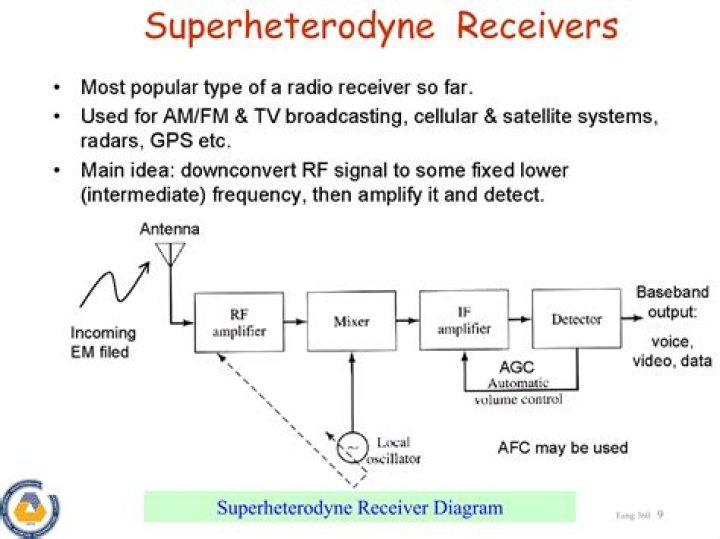

The superheterodyne receiver is the most common configuration for radio communication. Its basic principle of operation is the translation of all received channels to an intermediate frequency (IF) band where the weak input signal is amplified before being applied to a detector.

What is superheterodyne receiver Mcq?

A super heterodyne receiver mixes the incoming signal frequency with the locally generated signal frequency to convert a received signal to a fixed intermediate frequency (IF). ... Super heterodyne receivers have better sensitivity, high selectivity but need an extra circuitry for frequency conversion.

What are the main features of receiver Mcq?

What are the main features of a receiver? Explanation: The main features of a receiver which increases its complexity are synchronization of carrier, phase, and timing and multiple parallel receiver chain.

What is the use of SSB Mcq?

Explanation: In an SSB or single sideband signal, the carrier is suppressed leaving the upper and lower sidebands. The resulting signal is referred to as the sideband suppressed carrier signal and one of the major benefits of this type of signal is that no power is wasted on the carrier. 2.

What is the difference between TRF and superheterodyne receiver?

In a TRF receiver the high amplitude original frequency is demodulated at the detector stage. ... In TRF receiver, amplification is not constant over the tuning range. In superhet receiver amplification standard is constant since all the time it amplifies a constant frequency at the IF stages.

What are the disadvantages of TRF receiver?

Disadvantages of TRF receiver

Poor selectivity and low sensitivity in proportion to the number of tuned amplifiers used. Selectivity requires narrow bandwidth, and narrow bandwidth at a high radio frequency implies high Q or many filter sections.

What is the use of IF amplifier?

IF amplifiers can change the frequency levels in circuits that are too selective, difficult to tune, and unstable. They also help by changing the frequency levels in circuits which improve image display and tuning range. They are fixed frequency amplifiers which reject unwanted signals.

Where is superheterodyne receiver used?

The superhet radio receiver is used in many forms of radio broadcast reception, two way radio communications and the like. It is useful to have an understanding of the different signal blocks, their functions, and the overall signal flow, not only for the RF circuit design, but also from an operational viewpoint.

What is the main function of the RF amplifier stage used in the superheterodyne receiver?

The RF amplifier in superheterodyne provides selectivity by rejecting the unwanted signals. It also helps to discriminate against image frequency signal and IF signal.

What is the heterodyne principle?

The principle that multiple frequencies applied to a nonlinear device produce new frequencies that are sums and differences of the applied frequencies and their harmonics.

Which of the following is the response of receiver?

Explanation : Feedback: It is a response by the receiver to the sender's message.

What are the characteristics of good receiver?

• Selectively. The selectivity of an AM receiver is defined as its ability to accept or select the desired band of frequency and reject all other unwanted frequencies which can be interfering signals. ...
• Fidelity. ...
• Sensitivity. ...
• Double spotting.

What is the role of receiver in communication system Mcq?

Explanation: Receiver is to detect and amplify information signal from the carrier. Transmitter is used to modulate message signal and produce radio waves.

What is the disadvantage of using a double receiver instead of two individual receivers?

In some dual-speed applications, a double receiver is used instead of two individual receivers. receiver corresponds to the minute hand. This double receiver has the advantage of requiring less space than two single receivers. However, it also has a disadvantage - when one receiver goes bad, both must be replaced.

What is dual conversion receiver?

Dual conversion means the receiver has two IF (intermediate frequency) stages vs one (single conversion) What this means is that the reciver can more finely tune in the desired frequency, that of the TX. It helps eliminate noise from close frequencys.

What is double spotting in superheterodyne receiver?

(i) Double spotting : Double spotting means the same stations gets picked up at two different nearby points, on the receiver dial. It is due to poor front end selectivity i.e. inadequate image frequency rejection.
