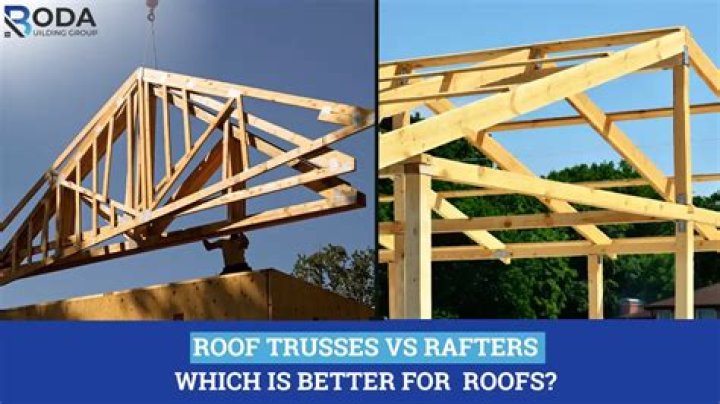

Once in place, rafters use up more wood, so they weigh more, but trusses are stronger because they are more efficient and have the capacity to produce maximum strength using fewer materials in the end.

What are the benefits of using trusses instead of rafter framing?

Trusses have an extensive span capability, even though they're built from shorter lumber lengths than rafters. They can span far distances – farther even than most conventionally framed roofs. This leads to an open interior space, as well as versatile design options in a spacious floorplan.

What is a disadvantage of a typical roof constructed with roof trusses?

The biggest downside to roof trusses is that many types of trusses do not leave much space for a usable attic. There are certain designs that will create a small space, but this space is often half the span of the truss. ... Roof trusses, on the other hand, can be customized but are often limited to less complex designs.

What is the strongest roof truss?

There is no "strongest" truss, but rather, one that is most appropriate for a specific application. There are four basic types of truss design: dropped chord, raised chord, parallel chord and scissors. Dropped chord uses a beam on two load-bearing walls and can restrict interior space.

Why are trusses cheaper than rafters?

Trusses are lightweight engineered units consisting of top and bottom "chords" supported by a webbing of lumber in a triangle shape. Because they're pre-made to your building specs offsite, often via automation like computer-driven saws, they are much faster and cheaper to install than rafters.

Cost Comparison For Gable Roof Trusses Versus Roof Rafters - Two Car Garage Framing Design Ideas

What is the difference between rafters and trusses?

Rafters contain two main outer beams which support the roof structure. On the other hand, trusses come with multiple beams which add more support. Moreover, as said earlier, the entire weight of the roof is equally shared by a series of triangles inside the main frame.

Are roof trusses load bearing?

Most exterior walls are load bearing, but not all. It all comes down to where the roof trusses/rafters and floor joists/trusses are bearing.

How can I make my roof truss stronger?

1. Apply construction adhesive along the edge of the truss to strengthen the connection to the plywood roof deck. ...
2. Stiffen trusses by joining them with 2x4s running from one end of the house to the other.
3. Brace gable ends with diagonal 2x4s.
4. Connect trusses to walls with hurricane tiedowns.

Is it cheaper to build or buy roof trusses?

Lower cost – Building with roof trusses is 30% to 50% cheaper than building a stick roof. ... Span – Trusses can handle long spans over open areas better than rafters can. Good for DIY – Because of the ease of installing trusses, they are much easier for the do-it-yourselfer to build with.

What are the 3 types of trusses?

• King Post truss. A king post truss is typically used for short spans. ...
• Queen Post truss. A queen post truss is typically a vertical upright with two triangles either side. ...
• Fink truss. ...
• Double Pitch Profile truss. ...
• Mono Pitch Truss. ...
• Scissor Truss (also known as Vaulted Truss) ...
• Raised Tie Truss.

What are the advantages of wood roof trusses?

• Wood roof trusses are cost-effective. ...
• You can benefit from a custom configuration. ...
• Prefabricated wood roof trusses are an environmentally friendly product. ...
• Wood is energy efficient.

Are trusses better than stick built?

Truss roofs are heavily reinforced, so they are more durable than stick-framed roofs. They are lighter and easier to install and they do not require as much maintenance. They allow you to install more insulation, which will make it easier to heat or cool your home.

Are rafters trusses?

A quick summary:

Trusses are prefabricated roof structures, whereas rafters are assembled on-site. Rafters cost more than trusses as their installation process is labor-intensive. Trusses are composed of multiple beams for added support. Rafters, on the other hand, contain two main beams to support the roof.

How far can trusses span without support?

A roof truss can span up to 80' without support, however in any home that distance would be impractical and incredibly costly. Trusses are designed to span spaces without interior supports, and spans of up to 40' are the most common in today's homes.

How much weight can roof trusses hold?

According to the IRC, the minimum live load capacity of a roof truss for non-sleeping areas should be around 40 pounds per square foot. Again, if it's built for sleeping areas, it should be around 30 pounds per square foot.

What are the advantages and disadvantages of roof trusses?

A truss uses 40 percent less timber than traditional pitched roof construction methods, according to MiTek Truss Fabricators. The timbers used to construct a truss are smaller in dimension and span greater distances. On the downside, timber is subject to rot or warp, especially if exposed to the elements.

Why are trusses stronger than rafters?

Once in place, rafters use up more wood, so they weigh more, but trusses are stronger because they are more efficient and have the capacity to produce maximum strength using fewer materials in the end.

How far apart should roof trusses be?

Roof trusses should be 24” apart, on center. Trusses are allowed to be closer together, at either 12” or 16” on center, but building codes allow for 24” on center spacing without using heavier duty fasteners for truss to wall connections.

Is roof sagging a problem?

Sagging is a common roofing problem that appears in homes with roofs that haven't been replaced in a long time due to a deteriorated structure. They are also a common problem in older homes due to the way roofs used to be designed. In terms of how much roof sag is acceptable, just about any sagging is bad.

Do roof trusses need support in the middle?

Generally, you don't need central support for domestic trusses. In industrial applications, trusses support enormous roofs made from heavy materials and thus generally require central support.

What does a roof truss sit on?

The trusses are fist stacked on top of the walls, either by hand or with a crane. These trusses went up in about four hours. They are on 24-inch centers. The trusses are tied to the walls with small metal plates.

Can roof trusses be altered?

You can modify the trusses, but it's an enormous amount of work. ... If you feel you'll be sliding new larger common rafters up inside the attic alongside the existing trusses, you're dreaming. You'll have shingle nails in your way that extend through the roof sheathing.
