Diatomic molecules are observed in the Raman spectra but not in the IR spectra. ... The normal modes of vibration are: asymmetric, symmetric, wagging, twisting, scissoring, and rocking for polyatomic molecules.

What are IR vibrational modes?

In order for a vibrational mode in a sample to be "IR active", it must be associated with changes in the dipole moment. A permanent dipole is not necessary, as the rule requires only a change in dipole moment. A molecule can vibrate in many ways, and each way is called a vibrational mode.

What are the three types of IR vibrations?

The infrared portion of the electromagnetic spectrum is usually divided into three regions; the near-, mid- and far- infrared, named for their relation to the visible spectrum. The higher energy near-IR, approximately 14000-4000 cm^-1 (0.8-2.5 μm wavelength) can excite overtone or harmonic vibrations.

Which is not active to IR?

Some kinds of vibrations are infrared inactive. The stretching vibrations of completely symmetrical double and triple bonds, for example, do not result in a change in dipole moment, and therefore do not result in any absorption of light (but other bonds and vibrational modes in these molecules do absorb IR light).

How many types of vibration are there in IR?

Four bending vibrations exist namely, wagging, twisting, rocking and scissoring.

Calculation of vibrational modes IR spectroscopy

What are vibration modes?

A mode of vibration can be defined as a way of vibrating, or a pattern of vibration, when applied to a system or structure that has several points with different amplitudes of deflection.

What are the types of vibration?

A vibrating motion can be oscillating, reciprocating, or periodic. Vibration can also be either harmonic or random. Harmonic vibration occurs when a vibration's frequency and magnitude are constant. A vibration is random when the frequency and magnitude vary with time.

Which vibrational modes of CO2 are IR active?

All three modes are IR active. For CO2 (linear molecule) there are 4 vibrational modes corresponding to symmetric stretch, antisymmetric stretch and two bends. The symmetric stretch does not change the dipole moment so it is not IR active.

Is F2 IR active?

Theoretical

The representation for tetrahedral symmetry is[25]: GTd =A1(w1)+E(w2)+F2(w3)+F2(w4), in which all four vibrational modes are Raman ac- tive, but only the F2(w3, w4) modes are IR active.

Which of the following Cannot show a vibrational absorption spectrum?

5. Which of the following cannot show a vibrational absorption spectrum? Explanation: C H₂ = C H₂ cannot show vibrational absorption spectrum. OCS, H₂O and CO₂ can show a vibrational absorption spectrum.

Why does 3N 6 have vibrational modes?

The remaining motions of the atoms are displacements of the atoms from their mean positions - the center of gravity does not change. These fundamental vibrations are referred to as "normal modes". Thus, a non-linear molecule has 3N-6 normal modes.

What are the different types of molecular vibration?

Molecular vibrations are two types: stretching (that changes the bond length) and bending (that changes the bond angle).

What are the two vibrational modes in IR spectroscopy?

Vibrations can be subdivided into two classes, depending on whether the bond length or angle is changing: stretching (symmetric and asymmetric) bending (scissoring, rocking, wagging and twisting)

How do you find vibrational modes?

The number of vibrational normal modes can be determined for any molecule from the formula given above. For a diatomic molecule, N = 2 so the number of modes is 3×2−5=1. For a triatomic linear molecule (CO₂), it is 3×3−5=4 and triatomic nonlinear molecule (H₂O), it is 3×3−6=3 and so on.

How many vibrational modes are in HCl?

3. The first three modes (T 1u ) in descending order of normal frequencies are the translational modes of the center of mass of the HCl molecule. The next normal mode (A g ) corresponds to the totally symmetric breathing of the cage. The next quintet (H g ) is the symmet- ric stretch of the cage.

Which of the following molecule have three vibrational modes?

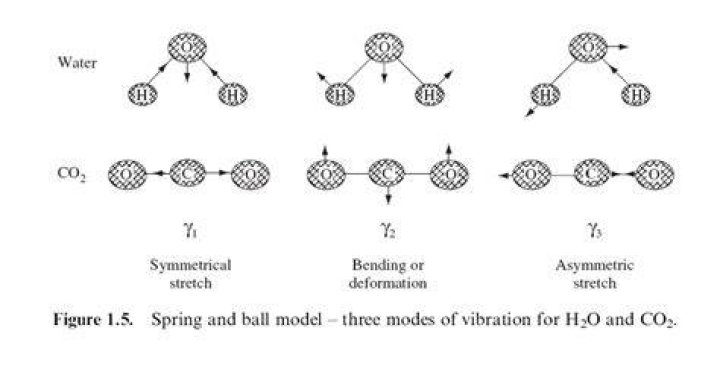

The three vibrational modes of the water molecule and their fundamental frequencies in liquid water: symmetric stretching (v1), bending (v2) and asymmetric stretching (v3).

Does H2 show IR spectrum?

Explain why HCI, CO and NO are IR active, While H2, O2, Cl2 are IR inactive.

Is O3 IR active?

The IR spectrum of Ozone (O3 ) exhibits three IR active fundamental vibrational bands at 1355, 1033, and 528 cm−1 .

Is carbon tetrachloride IR active?

Liquid carbon tetrachloride displays a far-infrared absorption spectrum which is primarily the result of collisional processes involving octapolar and hexadecapolar induction of dipole moments. These moments are modulated by both the rotational and translational motions of the CCl4 molecules.

What molecules are not IR active?

Homonuclear diatomic molecules such as H2, N2, and O2 have no dipole moment and are IR inactive (but Raman active) while heteronuclear diatomic molecules such as HCl, NO, and CO do have dipole moments and have IR active vibrations.

Are all vibrations of SO2 IR active?

All of the normal modes in SO2 are IR active and therefore can all be seen in the IR spectrum at the fundamental frequency.

What are the 4 vibrational modes of co2?

The four normal modes of carbon dioxide, Figure 1, are the symmetric stretch, the asymmetric stretch and two bending modes. The two bending modes have the same energy and differ only in the direction of the bending motion. Modes that have the same energy are called degenerate.

What are two types of vibration?

There are two types of vibration: whole body vibration and hand-arm vibration - both can cause ill health.

How many vibrations are there?

The normal modes of vibration are: asymmetric, symmetric, wagging, twisting, scissoring, and rocking for polyatomic molecules. Figure 1: Six types of Vibrational Modes. Images used with permission (Public Domain; Tiago Becerra Paolini).

What are the elements of vibration?

Vibration means the state of object that moves repetitively back/forward, right/ left or up/down and is generally expressed by Frequency, Displacement, Velocity, and Acceleration. These 4 elements are generally denoted as f, D, V, A.
