To find the open-circuit voltage, we need to calculate the voltage between two terminals from where the circuit is opened. If the entire load is disconnected, the source voltage is the same as the open-circuit voltage. The only voltage drop occurs across the battery. And that will be very small.

How do you find an open circuit fault?

If the correct voltage is not present, then the control fuse is open. If the fuse is open, then there is either a short circuit or ground fault. If the fuse is not open, then there is an open circuit fault. This is our first indication that the fault is an open circuit fault.

What is open voltage in a circuit?

Open-circuit voltage (abbreviated as OCV or V_OC ) is the difference of electrical potential between two terminals of a device when disconnected from any circuit. There is no external load connected. No external electric current flows between the terminals.

Does voltage flow in an open circuit?

Voltage doesn't flow. Current flows. Current flows when there is a potential difference between two points and a conductive path between them.

What is open circuit?

: an electrical circuit in which the continuity is broken so that current does not flow.

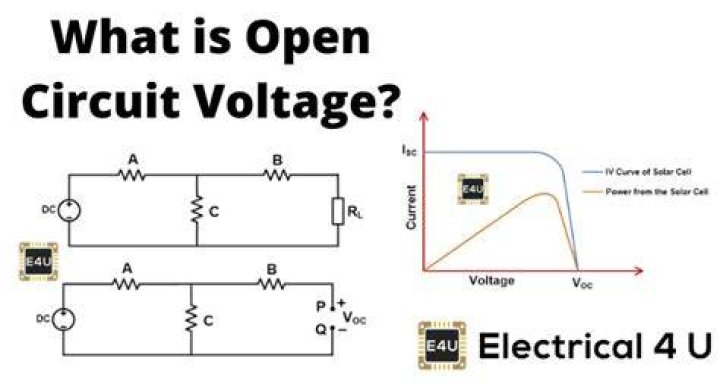

What is Open Circuit Voltage ?

How do you find the voltage of an open circuit port?

As we know, the open circuit voltage equals to the quasi-Fermi level separation of a solar cell under illumination. Common way to calculate the voltage is using the equation, KT/q*ln(Iph/I0+1).

What is an example of an open circuit?

The definition of an open circuit is a broken path for an electrical current due to an open switch or frayed wire. An example of an open circuit is a string of electric lights that don't work if one bulb goes out. ... An electrical circuit that does not conduct current because a switch is open, a wire is broken, etc.

Is there current in an open circuit?

An open circuit is defined as an electric circuit in which current does not flow. ... But while current cannot flow through the circuit, there is some voltage drop between two points of a circuit. Hence in an open circuit, the current flowing through the circuit is zero, and voltage is present (non-zero).

How do you detect open circuits in series circuits?

An ohmmeter can be used to troubleshoot this same circuit. With the switch open, the series portion of the circuit can be checked by placing the ohmmeter leads between points A and B. If R1 or the conductor is open, the ohmmeter will read infinity; if not, the value of the resistor will be indicated on the ohmmeter.

How can you tell if a circuit is open?

The multimeter will read infinity or "OL" if the circuit is broken or open, on the other hand, it will read zero if continuous. Maintain the first test probe at the hot wire terminal of the circuit. Remove the second probe from the neutral terminal then place it on the ground terminal for the circuit.

What causes a circuit to open?

An 'open circuit' exists when there is a break or gap in the circuit. ... Current cannot flow around the circuit due to the break in the wiring. Open circuits can be caused by one or more of the following: broken wire.

How does the voltmeter measure the open circuit voltage?

As its names implies, a “Voltmeter” is an instrument used for measuring voltage (V), that is the potential difference present between any two points within a circuit. To measure a voltage (potential difference), a voltmeter must be connected in parallel with the component whose voltage you wish to measure.

What is open circuit potential?

Open circuit potential (OCP) is defined as the potential that exists in an open circuit. That is, it is the voltage present when the terminal ends of a circuit are detached, and there is no external load. Figure 1. ... When an electrode is immersed in an electrolyte, it will adopt an open circuit potential.

How do I find an open circuit in my house?

When a circuit in your home is dead or has no power, it is known as an "open hot." You can find an open hot in a house circuit by using an electrical tester. Testers can come in a variety of types such as an electrostatic wand and a three-pronged receptacle tester.

What is open circuit voltage in solar cell?

The open-circuit voltage, V_OC, is the maximum voltage available from a solar cell, and this occurs at zero current. The open-circuit voltage corresponds to the amount of forward bias on the solar cell due to the bias of the solar cell junction with the light-generated current.

How do you perform an open circuit test?

Open Circuit Test on Transformer

A voltmeter, wattmeter, and an ammeter are connected in LV side of the transformer as shown. The voltage at rated frequency is applied to that LV side with the help of a variac of variable ratio auto transformer. The HV side of the transformer is kept open.

What is open circuit value?

An open circuit implies that the two terminals are points are externally disconnected, which is equivalent to a resistance R=∞ . This means that zero current can flow between the two terminals, regardless of any voltage difference.

What is open circuit voltage in generator?

Generators spinning with no load (nothing attached to the rectifier) generate an Open Circuit Voltage (OCV). This voltage is proportional to the RPM of the generator and is fairly linear, meaning there are a fixed number of RPM's per volt. As the rpm of the generator increases, the voltage increases.

What are the open circuit parameters?

The Z-parameters are also known as the open circuit parameters because they are measured or calculated by applying current to one port and determining the resulting voltages at all the ports while the undriven ports are terminated into open circuits.

How do you make an open circuit?

1. Disconnect one of the wires from the battery pack. Connect one end of the new wire to the battery. ...
2. You have made an open circuit and the bulb should not light up. Next you will test objects to see if they are conductors or insulators. ...
3. Connect the ends of the free wires to an object and see what happens.

What do you mean by open circuit test?

The open-circuit test, or no-load test, is one of the methods used in electrical engineering to determine the no-load impedance in the excitation branch of a transformer. The no load is represented by the open circuit, which is represented on the right side of the figure as the "hole" or incomplete part of the circuit.

What is an open circuit and closed circuit?

An open circuit is defined to be basically a circuit where the energy is not flowing through it. A closed-circuit is defined to be the one where the energy is allowed to flow through it by turning it on. A circuit is made closed if the electricity is flowing from an energy source to the desired endpoint of the circuit.

What is the voltage drop across an open circuit?

An Open in a Series Circuit

If there is no current flow, the voltage drop across each of the resistive elements is zero.
