• Gearboxes.
• Wind turbines.
• Continuous casting machines.
• Material handling.
• Pumps.
• Mechanical fans and blowers.
• Mining and construction equipment.
• Pulp and paper processing equipment.

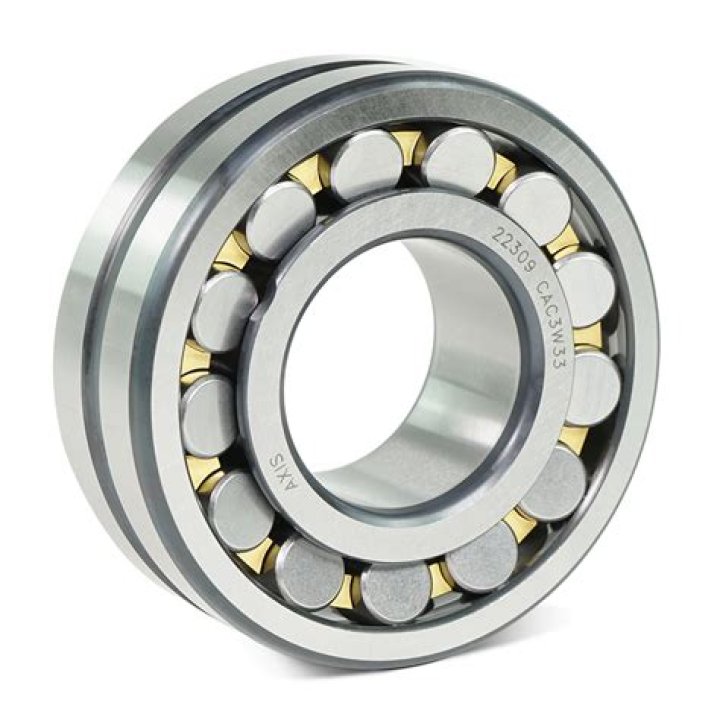

What is a spherical bearing used for?

Spherical roller bearings offer an unequaled combination of high load capacity, high tolerance to shock loads, and self-aligning ability, but they are speed limited. Accordingly, they are used in vibrators, shakers, conveyors, speed reducers, transmissions, and other heavy machinery.

What common application do we use a spherical roller bearing?

Large paper machines may use as many as 3000 bearings, the majority of which are spherical roller bearings. Spherical roller bearings are able to support substantial axial and radial load combinations of the rolls and cylinders used. They tolerate misalignment between the shaft and housing.

Where are straight roller bearings used?

Bearing assemblies with smaller-diameter straight roller bearings are often used in tight spaces such as gear boxes.

Which is the most preferred use of roller bearings?

Rolling-element bearings are often used for axles due to their low rolling friction. For light loads, such as bicycles, ball bearings are often used. For heavy loads and where the loads can greatly change during cornering, such as cars and trucks, tapered rolling bearings are used.

SKF Explorer spherical roller bearings

What is straight roller bearing?

Straight roller or cylindrical bearings run in cylindrical raceways and have low-friction, high-radial load capacity, and high speed capability. ... Straight or cylindrical roller bearings can be found in applications like conveyor-belt rollers, which are required to hold heavy radial loads.

Where do you use self-aligning ball bearing and spherical roller bearing?

Double and single row angular contact ball bearings are mainly used for combined loads. Self-aligning ball bearings and cylindrical roller bearings can also be used to a limited extent. Duplex bearings and spherical roller thrust bearings should only be considered where axial loads predominate.

Why are SKF roller bearings spherical?

Spherical roller bearings are characterized by their self-aligning ability and high load-carrying capacity. They are designed to accommodate radial load or combined radial and axial load. Invented by SKF and refined over the years, SKF spherical roller bearings provide top-of-the-line performance.

Which bearing is used for low speed?

Typical low-speed bearings

A variety of bearings can be used in low-speed applications, but thin section bearings and slewing ring bearings are two of the most common.

What are spherical plain bearings?

Spherical Plain Bearings (also known as “Spherical Plane Bearings” "Spherical Ball Bushing Bearings" and “Ball Bushings”) have an inner ring with a sphere convex outside surface and an outer ring with a correspondingly sphere, but concave inside surface.

What are spherical bearings made of?

Inner rings of maintenance-free spherical plain bearings are made of hardened carbon chromium steel, hardened stainless steel, or copper alloy. The sliding surfaces between these types of spherical plain bearings could have hard chromium plating, PTFE composite, PTFE fabric, or PTFE plastic to reduce wear.

Which type of bearing is suitable for high-speed?

Ball Bearings are used to take heavy as well as high-speed loads.

When would self aligning bearings be used?

A self-aligning bearing is recommended when the alignment of the shaft and housing is difficult or when the shaft may bend during operation. Brda notes that similar to deep groove ball bearings, most self-aligning ball are for general use.

What is deep groove ball bearing?

Deep groove ball bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration which enables high rotational speeds. ... The SKF bearing catalogue lists a large range of designs, variants and sizes of deep groove ball bearings.

What is C3 bearing?

Internal clearance being C3 means that the bearing has room for expansion if needed between the races of the bearing, whilst holding the outer ring and moving the inner ring in a radial movement you will detect a little amount of play between the two rings. ... C3 means the bearing has more clearance than standard.

Are spherical roller bearings self aligning?

Spherical roller bearings are self-aligning bearings designed for heavy radial loading. They automatically compensate for large angular errors (shaft misalignments). They are usually of the double row design, both the rows of the rollers having common spherical raceways in the outer ring.

How do you measure spherical bearings?

Measuring your bearing: Most bearings are measured in three ways, the inside diameter or (ID), the outside diameter or (OD) and the width or (W). It is important to note that our bearing measurements are all done in the following order: Inside diameter (ID) x Outside diameter (OD) x Width (W).

Which type of bearing is used in crankshaft?

Plain bearings are used in main bearings and connecting rod bearing. Its main application is in the piston and connecting rod in engine.

Where are double row self-aligning bearing used?

Self-Aligning Double Row Ball Bearings are designed to work in applications where severe misalignment exists whether from mounting or shaft deflection. The concave raceway of the outer ring in combination with two rows of balls operate over a wide range of contact angles.

What is locating and non locating bearing?

In locating/non-locating bearing arrangements (fig. 1): The locating support provides axial location of the shaft relative to the housing. The non-locating support accommodates axial displacements that occur when thermal expansion of the shaft relative to the housing changes the distance between the two bearings.

Where is bearing used?

Machines that use bearings include automobiles, airplanes, electric generators and so on. They are even used in household appliances that we all use every day, such as refrigerators, vacuum cleaners and air-conditioners. Bearings support the rotating shafts of the wheels, gears, turbines, rotors, etc.

Which one is better between roller bearing and spherical bearing?

As a general rule, ball bearings are used at higher speeds and lighter loads than are roller bearings. Roller bearings perform better under shock and impact loading.

Why roller bearing are used?

Roller bearings are used in all main shaft and auxiliary drive shaft applications to support pure radial load, and allow for axial shaft elongation due to temperature changes with no additional load effect on the bearing.

Which bearing is used in gearbox?

Bearing Solutions for Gearboxes

NKE bearings are used in general machinery, material handling, iron and steel processing, gearboxes for windmills and many more. Standard bearings – commonly used bearing types for gearbox applications: Cylindrical roller bearings. Spherical roller bearings.
