When water-cooled condensers are used for distillation or for refluxing a liquid, the water enters the condensers at the lowest point and leaves at the highest.

Where are water-cooled condensers used?

The water-cooled condenser is an important component on the high side of an air-conditioning/refrigeration system. The chiller barrel is an important component on the low side of a system.

What is the purpose of using a water-cooled condenser when refluxing a solution?

Most chemical reactions are accelerated by an increased reaction temperature or only performed under heat conditions. The use of reflux condensers prevents evaporation of the solvent of a reaction mixture even when it is heated for long periods of time.

What is a water condenser used for?

A Liebig condenser, sometimes simply called a water condenser, is a piece of glassware that is used to condense compounds in the vapor (gas) phase back down to the liquid phase under boiling conditions.

Why are water-cooled condensers more efficient?

Water-cooled systems are more efficient for heat transfer than air-cooled systems because air-cooled systems are limited by the dry bulb temperature, resulting in higher condensing temperatures and therefore lower chiller efficiency.

Increase of energy efficiency in refrigeration systems with water-cooled condensers from BITZER

What is the use of water condenser in distillation process?

The condenser is an intricate piece of glassware, and allows for cold water to circulate through the distillation apparatus. The circulating water does not mix with the sample to be purified, but instead passes through another jacket surrounding the hollow tube where the gaseous sample travels.

What is a cooling condenser?

A condenser (or AC condenser) is the outdoor portion of an air conditioner or heat pump that either releases or collects heat, depending on the time of the year. ... The compressor is the heart of the system since it compresses the refrigerant and pumps it to a coil in the form of a hot gas.

What is a condenser in distillation?

In chemistry, a condenser is laboratory apparatus used to condense vapors — that is, turn them into liquids — by cooling them down. ... In distillation, a mixture is heated until the more volatile components boil off, the vapors are condensed, and collected in a separate container.

What is water in and water out in distillation?

Distillation heats untreated water until the water reaches its relatively low boiling point and begins to vaporize. ... Once the water has vaporized, that vapor is then funneled into a condenser. Removed from the heat source, the water cools and reverts back to its liquid form and flows into a receiving container.

What is a water-cooled condensing unit?

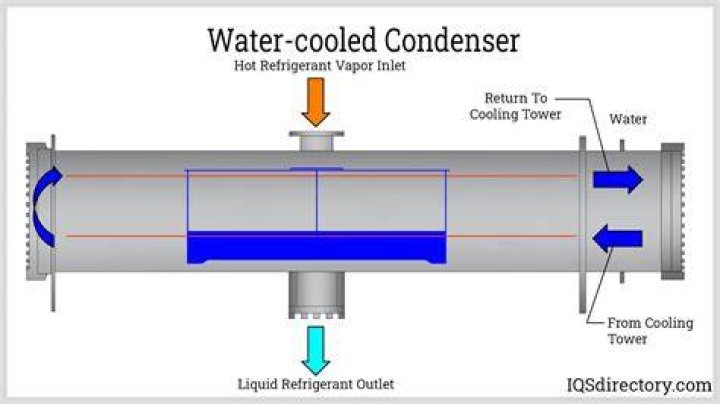

A Water-Cooled Condenser is a heat exchanger that removes heat from refrigerant vapour and transfers it to the water running through it. Having the refrigerant vapour condensed on the outside of a tube achieves this. In doing so, the vapour condenses and gives up heat to the water running inside the tube.

Why condenser is used in distillation?

Condenser is a cooling unit used in the distillation process. ... For cooling the vapors back to liquid droplets the condenser is fitted. Hence we can say that the main aim of the condenser is to cool the vapors, release heat to the surroundings and collect the liquid back through the condensation process.

What is the purpose of the condenser during a distillation Why is the cold water inlet at the lower end and exit the upper end?

Why is it important that the cooling water in a distillation apparatus enter the condenser jacket at the lower end and exit at the upper end? It ensures efficient condensing. Near top of column, nearly pure vapor reaches condenser and condenses back to liquid.

Why is reflux used in distillation?

The purpose of reflux is to provide down-flowing liquid throughout the rectification section to contact with the up-flowing vapor in order to achieve stage-by-stage equilibrium heat and mass transfer and, hence, purification of the top product.

What is the purpose of using water cooled condenser in industrial AC plant?

Water cooled air conditioner is also called water cooled condenser as its function is to reject the heat that was absorbed by the refrigerant in the evaporator. Water is used to cool the hot air refrigerant(180°F or 82°C) from the compressor by pumping counter-flow water in the condenser.

What type of water cooled condenser is used in large chillers?

A typical water-cooled chiller uses recirculating condenser water from a cooling tower to condense the refrigerant.

How does a water cooled compressor work?

Water-cooled compressors use liquid coolant from an external unit to cool the compressed air and any other substances present during the compression process. The cooling circuit reduces the heat with a shell and tube exchanger. Water-cooled units are more common in machines with higher horsepower.

What is water distillation process?

DISTILLATION IS A PROCESS that relies on evaporation to purify water. Contaminated water is heated to form steam. Inorganic compounds and large non-volatile organic molecules do not evaporate with the water and are left behind. The steam then cools and condenses to form purified water.

What is a water distillation plant?

Distilled water is a type of purified water achieved by boiling water away and then condensing the vapor. Using distilled water on plants seems to have its benefits, as watering plants with distilled water provides an impurity free source of irrigation that may help prevent toxicity build up.

Why is it important that the cooling water in a distillation apparatus?

Why is it important that the cooling water in a distillation apparatus enter the condenser jacket at the lower end and exit at the upper end? It ensures efficient condensing. The coolest water is the last water to surround the condenser, it is able to remove any residual heat.

Which condenser is best for distillation?

For large-scale distillations with the availability of sufficient water for circulation (with circulation system often requiring electricity and a pump) tube and shell condenser is preferred. As long as the condenser does its job efficiently and is long lasting, both types should be useful.

Which condenser is used to cool the liquid Vapour during distillation?

A Liebig's condensor is used to cool liquid vapours during distillation.

What is a water cooling tower?

A cooling tower is a specialized heat exchanger in which air and water are brought into direct contact with each other in order to reduce the water's temperature. ... Water, which has been heated by an industrial process or in an air-conditioning condenser, is pumped to the cooling tower through pipes.

What is the difference between air cooled condenser and water cooled condenser?

Air-cooled chillers have condensers that use ambient air to cool hot refrigerant. ... Water-cooled condensers are typically tube-in-tube, tube-in-shell, or plate-type heat exchangers in which water from a cooling tower or other water source cools the refrigerant.

How does a cooling coil work?

The coil dispels the hot air to the outside. The refrigerant then loops back to the inside unit in the house, gets cold again, absorbs heat and disperses it to the outside. As long as the air conditioner is running, the refrigerant keeps up this continuous loop.
