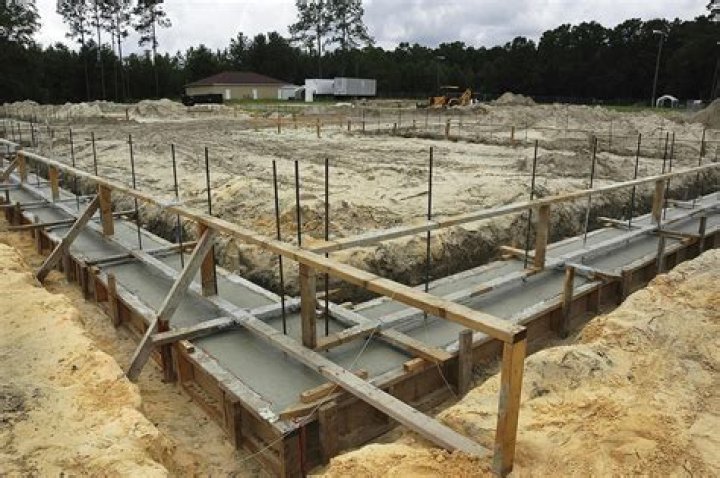

Footings are an important part of foundation construction. They are typically made of concrete with rebar reinforcement that has been poured into an excavated trench. The purpose of footings is to support the foundation and prevent settling. Footings are especially important in areas with troublesome soils.

Does my deck need concrete footings?

Large decks that are attached to the house should always have footings because they act to spread the heavy load of the deck from the surface of a support post over a large surface of the soil so the ground can adequately support it. ... The footings ensure that the deck will not fall, tip or rot away after a few years.

Why do we need footings?

Footing is a part of foundation which is constructed with concrete or brickwork masonry and acts as a base to the floor columns and floor walls. The main function of footing is to transfer the vertical loads directly to the soil. The term footing is used in conjunction with Shallow foundation commonly.

Where are footings placed?

A footing is placed below the frost line and then the walls are added on top. The footing is wider than the wall, providing extra support at the base of the foundation.

What is the purpose of providing a footing for any structure?

To distribute the weight of the structure over a large area in order to avoid overloading the underlying soil (possibly causing unequal settlement).

Pouring Concrete Footings Ep.31

Why is concrete used for foundations?

Concrete foundations are essential for the construction of new structures, providing the support they need. The aim is that the structure, such as a building or bridge, will transfer its load into layers of rock and soil which have the right characteristics to support it.

What are the 3 purposes of foundation?

Foundation Functions

The three most important are to bear the load of the building, anchor it against natural forces such as earthquakes, and to isolate it from ground moisture. The relative importance of these functions changes with the type of land underneath the building and the building design.

Do footings need rebar?

Including rebar in a concrete footing means that you can reduce the risk of the concrete being pushed and pulled apart – cracking – from ground force pressures. Knowing this, it is generally a good idea to use rebar in footings for any structure. However, it is not required in many cases.

Do you need gravel under footings?

You do need gravel under a concrete slab, footing, or patio. Gravel provides a solid foundation for your concrete as it can be compacted. It also improves drainage, preventing water from pooling beneath the concrete.

What is difference between footing and foundation?

Foundation is a structure which transfers the loads from the superstructure to the ground, while footing is the foundation which is in contact with the earth. A foundation can be shallow and deep, while a footing is a type of a shallow foundation. so, all footings are foundations but all foundations cannot be footings.

Can you pour a footing without forms?

The section on footings in Formwork for Concrete (ACI SP-4) says that when fabricated forms are omitted entirely and concrete is cast directly against the excavation, larger tolerances may apply. ... This makes it easier to keep water and earth from washing into the excavation if it rains.

What are the 3 types of foundations?

Foundation types vary, but likely your house or addition does or will have one of these three foundations: full or daylight basement, crawlspace, or concrete slab-on-grade.

How thick and wide should a footing be?

Footing width can vary according to the structure, site, and conditions. Under code, generally, one-story buildings with footings on undisturbed soil with LBVs between 1,500 and 4,000 should have a minimum width of 12 inches. Two-story buildings require a minimum of 15-inch wide footings for 1,500 LBV soil.

Why deck posts should not be set in concrete?

A deck post should always be placed on top of footing, not inside concrete because it can break. ... Concrete tends to absorb moisture and wood expands when it gets wet, so these two factors combined will result in the wood breaking the concrete.

Can you build a deck without posts?

A floating deck

Yes. It's possible to build a deck without digging holes. This type of deck is called a floating deck, and it sits right on top of the ground without any posts or support areas that you'd dig down into the ground [to secure].

How deep do concrete footings need to be for a deck?

By code, the bottom of a footing must be at least 12 inches deep and below the local frostline—whichever is deeper—and bear on stable, undisturbed soil that is free of organic matter. And the code requires a minimum compressive strength of 2,500 psi for the concrete.

Can you pour concrete directly on dirt?

Long story short, yes you can pour concrete over dirt.

What happens if you don't put gravel under concrete?

Because concrete is a very porous material, it will absorb any moisture that it contacts. This can cause pooling. Without crushed stone, pooling water will settle under it and erode your slab.

How many inches of gravel do I need for footing?

While discussing our project with local excavators, several mentioned that they commonly include 4 to 6 inches of crusher run gravel UNDER the footings – properly compacted, of course – to improve forming and pouring of the footings.

How big of a footer do I need?

A typical footer is twice the width of a wall and equal in depth to the wall's width. The footer should rest on a 6" gravel base set below the frost line.

Where do you put rebar in footings?

Footers must be twice as wide as wall minimum with 1/2 inch or 5/8 inch rebar in footing with 2 runs, placed in the bottom half of the footing, at least 6 inches apart and not less than 3 inches from the bottom and the sides of the footing supported on chairs.

How long should a footing cure before laying block?

If you use a concrete that has a quick setting additive you need to wait a minimum of one sunny day, if you are using a standard concrete footing mix I would recommend waiting for a minimum of seven days and a maximum of 28 days, of course, that is if the conditions are right for the concrete to cure and set hard .

What are the requirement of good foundation?

• Permanence. It's essential for foundations (and the building itself) to be placed in an area in such a way that it will not be affected by future construction work or projects. ...
• Stability and Cohesion. ...
• Depth. ...
• Consistency.

What is the difference between shallow and deep foundation?

Foundation which is placed near the surface of the earth or transfers the loads at shallow depth is called the shallow foundation. Foundation which is placed at a greater depth or transfers the loads to deep strata is called the deep foundation. ... Deep foundations are generally more expensive than shallow foundations.

When were poured concrete foundations first used?

The earliest known use of primitive concrete appeared in 6500 BCE. These solid structures were popularized by Nabataea traders in ancient Syria and Jordan. They were able to construct simple concrete foundations and floors, as well as rubble houses. Some of these structures still exist today.
