This flag is set whenever the result of a signed number operation is too large, causing the high-order bit to overflow into the sign bit. In general, the carry flag is used to detect errors in unsigned arithmetic operations. The overflow flag is only used to detect errors in signed arithmetic operations.

How is overflow flag set?

The overflow flag is thus set when the most significant bit (here considered the sign bit) is changed by adding two numbers with the same sign (or subtracting two numbers with opposite signs). ... Internally, the overflow flag is usually generated by an exclusive or of the internal carry into and out of the sign bit.

What is the purpose of overflow flag in 8051?

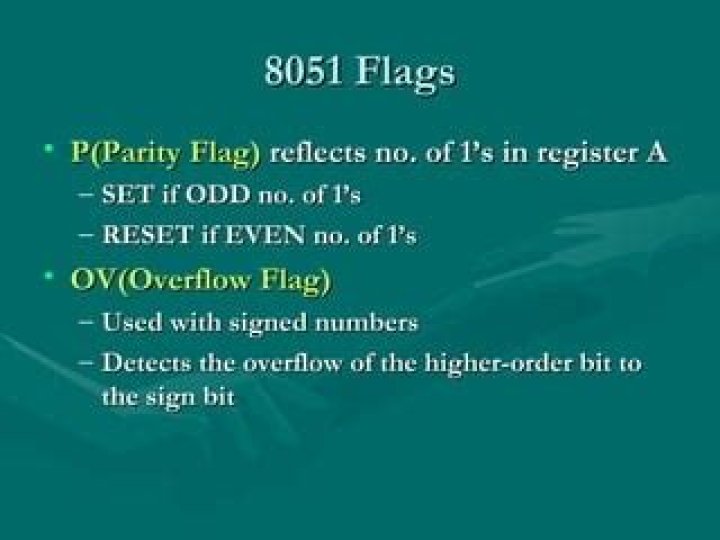

OV (overflow flag):

This flag is set whenever the result of a signed number operation is too large causing the high order bit to overflow into the sign bit. the carry flag is used to detect error in unsigned arithmetic operations. the overflow flag is only used to detect error in signed arithmetic operations.

What is the condition for setting the overflow flag in status register?

Depending upon the value of result after any arithmetic and logical operation the flag bits become set (1) or reset (0). ... Overflow Flag (O) – This flag will be set (1) if the result of a signed operation is too large to fit in the number of bits available to represent it, otherwise reset (0).

Which bit of flag register is set in 8051 output overflows?

Which bit of the flag register is set when output overflows to the sign bit? The 2nd bit of the flag register is set when output flows to the sign bit. This flag is also called as the overflow flag.

Lecture 3: Overflow flag for signed addition and subtraction

Which of the following instructions affect the flag register of 8051?

The carry flag is affected after an 8-bit addition or subtraction. The carry flag also be set to 1 or 0 directly by an instruction such as "SETB C" and "CLR C". The "SETB C" stands for "set bit carry" and "CLR C" for "clear carry". The carry flag is used to detect errors in unsigned arithmetic operations.

Which of the instruction will affect flag register of 8051?

CY, the carry flag

This flag is set whenever there is a carry out from the D7 bit. This flag bit is affected after an 8-bit addition or subtraction. It can also be set to 1 or 0 directly by an instruction such as “SETB C” and “CLR C” where “SETB C” stands for “set bit carry” and “CLR C” for “clear carry”.

When timer0 is overflow then which flag is set?

The bit TOV0 is set (one) when an overflow occurs in Timer/Counter0. TOV0 is cleared by hardware when executing the corresponding interrupt handling vector. Alternatively, TOV0 is cleared by writing a logic one to the flag.

Which flag is set when result is positive or negative?

Sign Flag (SF) - set to 1 when result is negative. When result is positive it is set to 0. Actually this flag take the value of the most significant bit. Overflow Flag (OF) - set to 1 when there is a signed overflow.

How does overflow work binary?

Sometimes, when adding two binary numbers we can end up with an extra digit that doesn't fit. This is called an overflow error. This sum is fine as the original numbers have two digits, and the result of the sum also has two digits. This sum has an overflow error.

What is PSW and its purpose in 8051 microcontrollers?

The Program Status Word (PSW) contains status bits that reflect the current CPU state. The 8051 variants provide one special function register called PSW with this status information. The 251 provides two additional status flags, Z and N, that are available in a second special function register called PSW1.

When an overflow is detected in an operation which flag is set in 8085?

The overflow flag is set to 1 when the result of a signed operation is too large to fit.

How is overflow flag different from carry flag?

The carry flag is set if the addition of two numbers causes a carry out of the most significant (leftmost) bits added. ... If the sum of two numbers with the sign bits on yields a result number with the sign bit off, the "overflow" flag is turned on.

What happens when an overflow occurs?

An integer overflow can cause the value to wrap and become negative, which violates the program's assumption and may lead to unexpected behavior (for example, 8-bit integer addition of 127 + 1 results in −128, a two's complement of 128).

What will happen if the direction flag is set?

When the direction flag is set, the processor decrements the registers instead. This means you need to start with them pointing to the end of the memory block you're copying. Instead of starting from the beginning and copying to the end, it starts at the end and copies backward until it gets to the beginning.

Will the overflow flag be set if you add a negative integer to a negative integer and produce a positive result?

It is possible to set the overflow flag if you add a negative integer to a negative integer. It is possible to set the overflow flag if you add a positive integer to a negative integer.

What is carry overflow?

Overflow indicates that a signed result is too big or too small to fit in the destination; Carry indicates that an unsigned result is too big to fit in the destination.

What is signed overflow?

"Signed integer overflow" means that you tried to store a value that's outside the range of values that the type can represent, and the result of that operation is undefined (in this particular case, your program halts with an error).

What is Timer0?

Timer0 is an 8-bit Timer/Counter module with the following features: 1. 8-bit prescaler (shared with WDT). 2. Selectable internal or external clock source. ... Figure 1-4 shows the various components that make up the Timer0 module including the bits from the OPTION_REG that affect each.

What is T1 in 8051?

1 – T2 is used as transmit clock for the serial port. 0 – T1 is used as transmit clock for the serial port.

Which register holds the tov0 timer overflow flag and tov1 bits?

The Timer/counter Interrupt Flag Register(TIFR) holds the two basic flags we need the TOV and OVF.

What are interrupts in 8051?

Interrupts are the events that temporarily suspend the main program, pass the control to the external sources and execute their task. It then passes the control to the main program where it had left off. 8051 has 5 interrupt signals, i.e. INT0, TFO, INT1, TF1, RI/TI.

How many flags are affected after executing CMP instruction?

only carry and zero flags will be affected. no flags will be affected. While CMP B instruction executes, microprocessor compares the contents of register B with the contents of the accumulator.

Which instructions affect auxiliary carry flag?

The Auxiliary flag is set (to 1) if during an "add" operation there is a carry from the low nibble (lowest four bits) to the high nibble (upper four bits), or a borrow from the high nibble to the low nibble, in the low-order 8-bit portion, during a subtraction.
