For practical purposes, if the Reynolds number is less than 2000, the flow is laminar. If it is greater than 3500, the flow is turbulent. Flows with Reynolds numbers between 2000 and 3500 are sometimes referred to as transitional flows. Most fluid systems in nuclear facilities operate with turbulent flow.

How do you determine the type of flow to be laminar or turbulent in pipe flow and open channel flow?

It is also found that a flow in a pipe is laminar if the Reynolds Number (based on diameter of the pipe) is less than 2100 and is turbulent if it is greater than 4000. Transitional Flow prevails between these two limits.

At what Reynolds number does flow become turbulent?

Whenever the Reynolds number is less than about 2,000, flow in a pipe is generally laminar, whereas, at values greater than 2,000, flow is usually turbulent.

What causes laminar vs turbulent flow?

Laminar flow occurs at low Reynolds numbers where viscous forces are dominant, and it is characterized by smooth, constant fluid motion; turbulent flow occurs at high Reynolds numbers and is dominated by inertial forces, which tend to produce chaotic eddies, vortices and other flow instabilities.

How does turbulent flow occur?

Turbulence is caused by excessive kinetic energy in parts of a fluid flow, which overcomes the damping effect of the fluid's viscosity. ... In general terms, in turbulent flow, unsteady vortices appear of many sizes which interact with each other, consequently drag due to friction effects increases.

Understanding Laminar and Turbulent Flow

What is turbulent flow give example?

Common examples of turbulent flow are blood flow in arteries, oil transport in pipelines, lava flow, atmosphere and ocean currents, the flow through pumps and turbines, and the flow in boat wakes and around aircraft-wing tips.

How do you convert turbulent to laminar flow?

The Capillaries or tubes divide the flow of water into numbers of small flows which are of small cross section area. A small flow less pressure and less disturbances. The turbulence of the flow reduces as the flow gets divided into number of flows and hence each flow becomes laminar.

When Reynolds number is less than 2000 then the flow is?

As indicated previously, if the Reynolds number is less than 2000, the flow is considered to be laminar. This is also known as viscous flow.

When Reynolds number is between 1000 and 2000 the flow of liquid becomes?

When the value of Reynold's number(Re)is greater than 2000 then the flow is turbulent. If the value of (Re)is between 1000 and 2000 then the flow is unstable. The flow is in intermediate stage.

How is flow described using the Reynolds number?

The Reynolds number, referred to as Re, is used to determine whether the fluid flow is laminar or turbulent. ... Technically speaking, the Reynolds number is the ratio of the inertial forces to the viscous forces. This ratio helps to categorize laminar flows from the turbulent ones.

When the flow parameters at any given instant remain same at every point then flow is said to be *?

it is at rest.

How did Osborne Reynolds discover fluid dynamics?

Fluid mechanics

In 1883 Reynolds demonstrated the transition to turbulent flow in a classic experiment in which he examined the behaviour of water flow under different flow rates using a small jet of dyed water introduced into the centre of flow in a larger pipe.

Does Reynolds number use dynamic or kinematic viscosity?

The Reynolds number (Re) of a flowing fluid is calculated by multiplying the fluid velocity by the internal pipe diameter (to obtain the inertia force of the fluid) and then dividing the result by the kinematic viscosity (viscous force per unit length).

When the flow of the fluid is said to be steady flow?

The flow of fluid is said to be steady if at any given point, the velocity of each passing fluid particle remains constant.

Can streamlines cross?

A streamline is a line that is tangential to the instantaneous velocity direction (velocity is a vector, and it has a magnitude and a direction). ... Since the velocity at any point in the flow has a single value (the flow cannot go in more than one direction at the same time), streamlines cannot cross.

Does turbulent flow reduce drag?

Turbulent Flow. ... As a result, at a given Reynolds number, the drag of a turbulent flow is higher than the drag of a laminar flow. Also, turbulent flow is affected by surface roughness, so that increasing roughness increases the drag.

Is wind laminar or turbulent?

Air flow in wind is laminar and/or turbulent. Laminar flow implies little exchange of mass between different layers, while turbulent flow has such exchange with resultant Reynolds or shearing stresses. Figure 1 below contrasts laminar with turbulent flow.

How do you make flow laminar?

To generate laminar flow we're going to create a nozzle that makes the water flow in smooth layers. Slow water is more likely to be laminar, so first we need to slow the water down. Second We also need to remove turbulence from the water coming into the nozzle. And third we have to direct the water into a laminar flow.

What is an example of laminar flow?

Examples : A common example of laminar flow is the flow of honey or thick syrup from a bottle. For flow through pipes and ducts, the flow is generally considered to be laminar if the Reynolds number is less than 2300.

What is the relationship of laminar and turbulent?

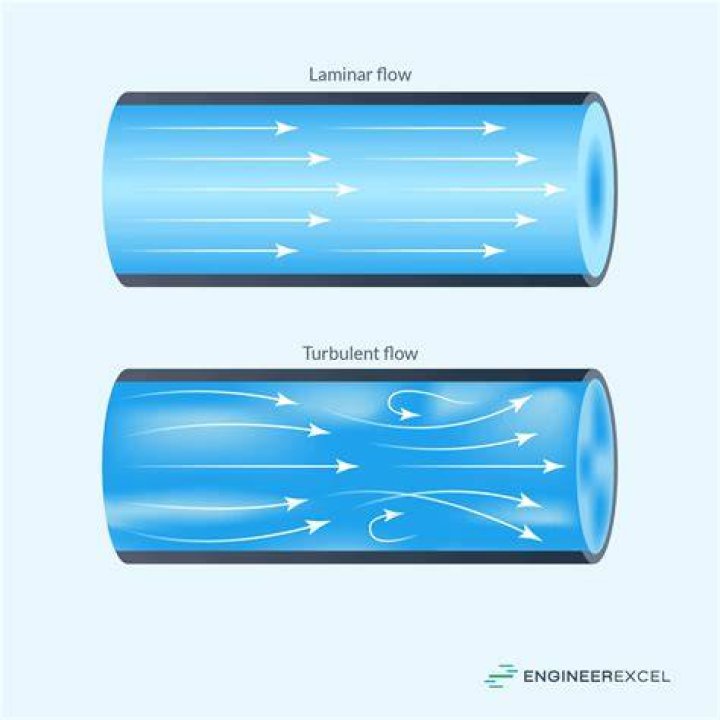

When flow is laminar, layers flow without mixing. When flow is turbulent, the layers mix, and significant velocities occur in directions other than the overall direction of flow.

What are the characteristics of a turbulent flow?

• Turbulent flow tends to occur at higher velocities, low viscosity and at higher characteristic linear dimensions.
• If the Reynolds number is greater than Re > 3500, the flow is turbulent.
• Irregularity: The flow is characterized by the irregular movement of particles of the fluid.

Does Reynolds number apply to gases?

The important factor on the Reynolds number is the gas density ρ, which is proportional to the atomic mass of gas species. ... If the Reynolds number is relatively small, such as Rn < 2000, the flow is laminar. If it is large, i.e., Rn > 4000, the flow is turbulent.

Is dynamic viscosity constant?

In the expression above (Newton's law of viscosity), dynamic viscosity works as the proportionality constant between the stress F/A and the rate of deformation or shear rate. ... In this sense, dynamic viscosity is a more fundamental property while kinematic viscosity is a derived one.

Who discovered turbulent flow?

EARLY DEVELOPMENT OF REYNOLDS' IDEAS ON TURBULENT FLOW

Osborne Reynolds is, without doubt, best known for his papers on fluid flow and turbulence. Besides the two principal papers, several other earlier contributions give insight into the way his ideas were developing.
