The purpose of a handrail is to provide guidance. It is required on stairs with two or more risers and ADA ramps with a rise of 6". In commercial applications, handrail is required on both sides of stairs and ramps. Handrails are not required on walking surfaces with running slope less than 1:20.

How many steps can you have without a handrail?

(2) Stairways having less than four risers need not have handrails or stair railings.

Do I need a handrail for 3 steps?

A: Editorial Adviser Mike Guertin replies: Since your stairs will have only three risers, you don't need to install a handrail. That said, it's important to count the number of risers accurately.

What height before a handrail is required?

As with barriers the top surface of the handrail must be at least 865mm vertically above the nosings of the stair tread or floor surface of a ramp.

What is code for needing a railing?

The IRC requires guardrails to be at least 36" in height, measured from the deck surface to the top of the rail. ... Commercial decks attached to multi-family buildings, such as apartment buildings or businesses, are regulated under the International Building Code (IBC). The IBC requires 42" high guardrails.

Geeking Out on Building Codes | Handrails

Are banisters a legal requirement?

Handrails are mandatory. Stairs should have a handrail on at least one side if they are less than one metre wide, and on both sides if wider than this. Handrails should be placed between 900mm and 1000mm above the highest point on the staircase steps.

Do I need a railing on my porch?

In most cases, you are required to have a railing when the floor of your porch is 30 inches or more above grade. However, 30 inches can be a long to fall; therefore some codes may require railings if your porch is 15 or 24 inches above grade.

How many steps until you need a railing?

The building code does not refer to the number of “steps” but it does require a handrail when there are two or more “risers”. For clarification, a “riser” is the vertical portion of a stair. The “tread” is the top of a step. A two riser minimum would translate to two steps.

Can you have stairs without a railing?

Stairs should have a handrail on at least one side if the stairs are less than 1 metre wide. A handrail on both sides of the stairs will be required if the stair width is greater than this. You do not need a handrail on the first two bottom steps.

Do outdoor steps need a handrail?

The open side can be along the length or width of the stairway. This means that exterior stairs will require a guardrail and / or handrail along the open side.

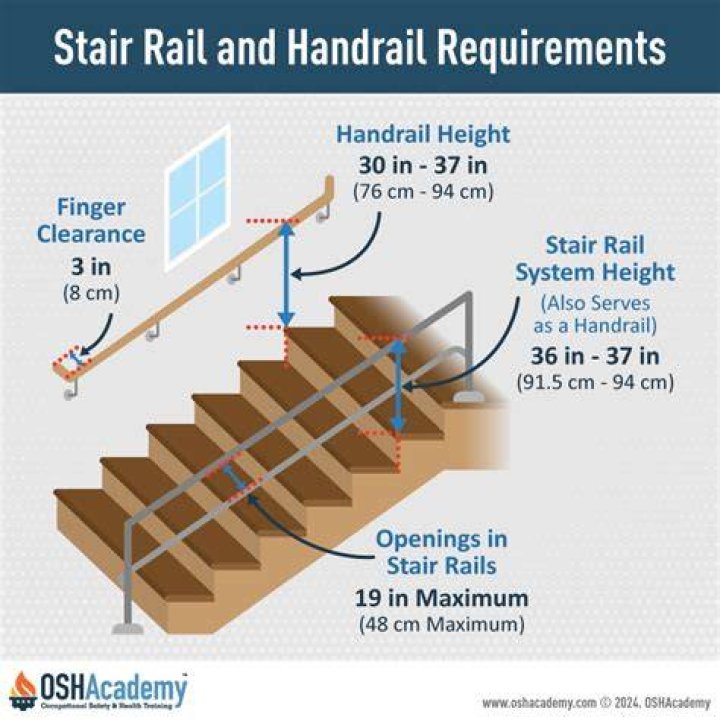

What are the OSHA requirements for handrails?

The top rail must be at least 42 inches in height (§1910.29(f)(1)(ii)(B)) and the handrail must be 30 to 38 inches in height (§1910.29(f)(1)(i)) (as measured at the leading edge of the stair tread to the top surface of the rail).

What is the code for outdoor steps?

Exterior Stair Construction

The rise of the stairs should be between 125 mm (5”) and 200 mm (8”). This is measured from top of a tread nosing to the top of the next tread nosing or landing. The run should be between 210 mm (8 ¼”) and 355mm (14”). Unit run is measured from face of nosing to face of nosing.

How close can a door be to stairs?

When it comes to national building codes, you need to have a minimum of 36 inches (or three feet) from the bottom of your stairs to your front door. However, most people prefer to have four to eight feet at a bare minimum when it comes to personal preference. Individual municipal codes may require more space as well.

Do you need building regs for a staircase?

When you are adding or altering staircases you do need to get building regulation approval. If you think about the potential risk of someone falling from/through poorly constructed stairs you can understand why this is an important area where regulation is required.

How many steps require a handrail FHA?

That leaves it up to the lender and underwriter to determine whether adding a handrail is a requirement for the loan. If you have just a step or two without a handrail, you may not be required to add one. Three stairs or more may require a handrail, whether that's because of state regulations or lender standards.

Is a handrail required for 2 steps?

Each stairway should have at least one handrail. Stairways wider than 1000mm should have a handrail on each side.

How high can your deck be without a railing?

He'd made a point of building his deck so as to stay under the 30-inch requirement--which is the maximum deck height you can have without a railing.

How many steps before a handrail is required UK?

A landing in all cases = minimum 900mm going. The handrails should be between 850mm and 1000mm above the pitch line and extend minimum 300mm beyond top and bottom nosings. Figure 1 Three or more risers – handrail is required. Figure 2 Three or more risers plus landings – handrails are required at steps.

Can a bathroom door open out instead of in?

Yes, bathroom doors can swing out of the way or open inwards. Normally a bathroom door swings out to aid entry inside the bathroom and also allows for greater space for entering and exiting.

Why are stairs always by the front door?

Why would a designer place a stair to the bedrooms (a private place) next to a front door, (a very public place), sometimes so close there is hardly a place to take your coat off. ... Reasons for having the stair in the front entry: This often helps in making the top of the stair end up in the middle of the upstairs.

Is a landing required for stairs?

Stairways must have a landing, top and bottom, equal to the width of stairs. The minimum dimension measured in the direction of travel shall equal to the width of the stairway, but need not exceed 48” where the stairway has a straight run.

Are handrails required on both sides of exterior stairs?

Handrails are required on both sides of stairs and must be continuous within the full length of each stair flight.

What are railing requirements?

(a) A standard guardrail shall consist of top rail, midrail or equivalent protection, and posts, and shall have a vertical height within the range of 42 inches to 45 inches from the upper surface of the top rail to the floor, platform, runway, or ramp level.

Where are guardrails required?

Generally, guardrails are required when the building has steps, landings, platforms or accessible roof spaces. According to the code, guardrails are required when there is a difference of 30 in. or greater between two upper and lower surfaces. OSHA requirements for guardrails are quite stringent.

What does OSHA say about handrails?

Handrails are not less than 30 inches (76 cm) and not more than 38 inches (97 cm), as measured from the leading edge of the stair tread to the top surface of the handrail (see Figure D-12 of this section).
