You Might Need a Retaining Wall If… You need a way to control downhill erosion. If mountains of erosion materials are clogging important areas on your property, adding a retaining wall is a wonderful idea. Retaining walls minimize erosion by decreasing the angle of a slope and holding back soil. 2.

How do you know if a retaining wall is needed?

1. You Need Flat Land For Greenery To Grow. ...
2. There Are Issues With Water Drainage. ...
3. You're Concerned About Erosion. ...
4. You're Looking For A Creative Way To Separate Your Backyard. ...
5. You're Concerned About Your Foundation.

What slope requires a retaining wall?

The wall should lean into the hill at a minimum of 1 inch for every 12 inches of height in order to maintain a safe load on the wall.

What slope do you not need a retaining wall?

The maximum slope for the soil you can safely go without a retaining wall is 35 degrees, especially if the soil is granular. If the angle is steeper, you will need a retaining wall to keep everything in place.

Do you need retaining walls?

In New South Wales, a building permit is required to build a retaining wall that is: Greater than 1 metre in height or. Built on or near an adjoining property.

RETAINING WALLS (YES or NO?) MIke Haduck

What can I use instead of a retaining wall?

• Reinforced Soil Slopes.
• Natural Stone Walls.
• Wooden Timbers.
• Gabion Walls.
• Soil Bioengineered Walls.

Do I need a structural engineer for a retaining wall?

In most states, retaining walls taller than four feet must be designed by or approved by a qualified, licensed professional engineer. It is important to check with and adhere to local building codes prior to design and construction.

Can you build a retaining wall on concrete?

While you can build a retaining wall on concrete, it isn't that straightforward. If you have an existing concrete base, you cannot just build your wall on top of it. Without being secured into the concrete, your wall will slide due to the soil pressure against the wall.

Does a 2 foot retaining wall need drainage?

These walls need a drainage system regardless of the wall height. If there are poor draining soils such as clay behind the wall, there needs to be drainage incorporated the wall system. Clay when wet is very weak, so it is essential to provide a way for water to escape from behind the wall.

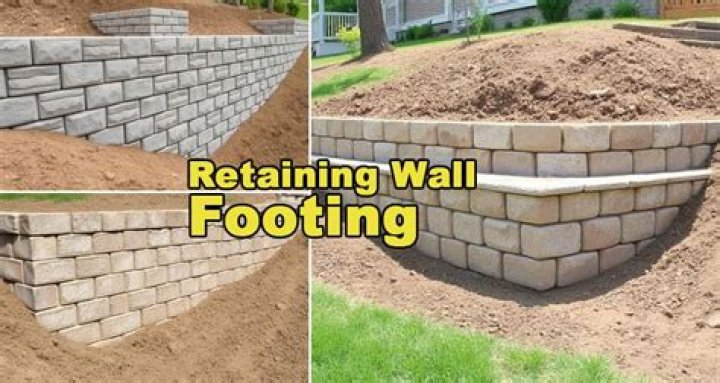

Do I need a concrete footing for a retaining wall?

No, you do not need a concrete footing, it will actually adhere the wall from being able to naturally shift. It is best to use a coarse stone aggregate for the Retaining Wall footing.

How high can a retaining wall be without council approval Qld?

Generally, you can build a retaining wall up to 1.0m high in Qld without needing to engage a structural Engineer or organise a development approval. Often manufacturers of retaining materials will specify the maximum height that products can be built to without engineering.

Can you build a retaining wall on a slope?

DO stack blocks at a slight backward slope.

Design and build your retaining wall to slope at a minimum rate of one inch for every one-foot of rise (height). Fortunately, working with retaining wall blocks makes it incredibly easy to achieve this “step-back” construction!

At what height does a retaining wall need to be engineered?

Most municipalities require a building permit and a design from a Licensed Engineer if your wall is taller than 4 feet high (measured from the bottom of the first block to the top of the last block).

Does a 4 foot retaining wall need drainage?

Any reinforced wall or walls over 4 ft. (1.2 m) in height or with slopes or other surcharges above the wall will need a toe drain. In all cases wall rock is located within the cores of the block and a minimum of 12 in. (300 mm) behind the block.

How deep should a retaining wall be?

To keep the bottom row of blocks from pushing outward, bury the lowest section of a retaining wall. The general rule of thumb is to bury about one-eighth of the height of the wall. For example, if your wall will be three feet (36 inches) tall, the first course of blocks should start five inches below soil level.

Will a retaining wall stop water?

Retaining walls can help divert water away from foundations during flooding. Often they are just a part of a water flow management solution. Combined with proper guttering, French drains and foundation swales, most water can be diverted away from the foundation and home.

How much weight can a retaining wall hold?

Even small retaining walls have to contain enormous loads. A 4-foot-high, 15-foot-long wall could be holding back as much as 20 tons of saturated soil.

What is the cheapest way to build a retaining wall?

1. Treated pine and is the least expensive material. ...
2. Hardwood is more expensive than treated pine. ...
3. Railway sleepers are another - slightly more expensive - option and are built to withstand ground and water contact.
4. Concrete sleepers are more expensive.

Do you need a permit to build a wall around your house?

Question: Do I need a permit to construct a block wall (fence) on my property? 3) Retaining walls of any height supporting a surcharge or slope.

What is the maximum height of a retaining wall?

Most retaining walls, whether load-bearing or not, average between 3 and 4 feet in height. As a general rule, you do not want to build any sort of structure over 4 feet in height without including some type of structural support within.
