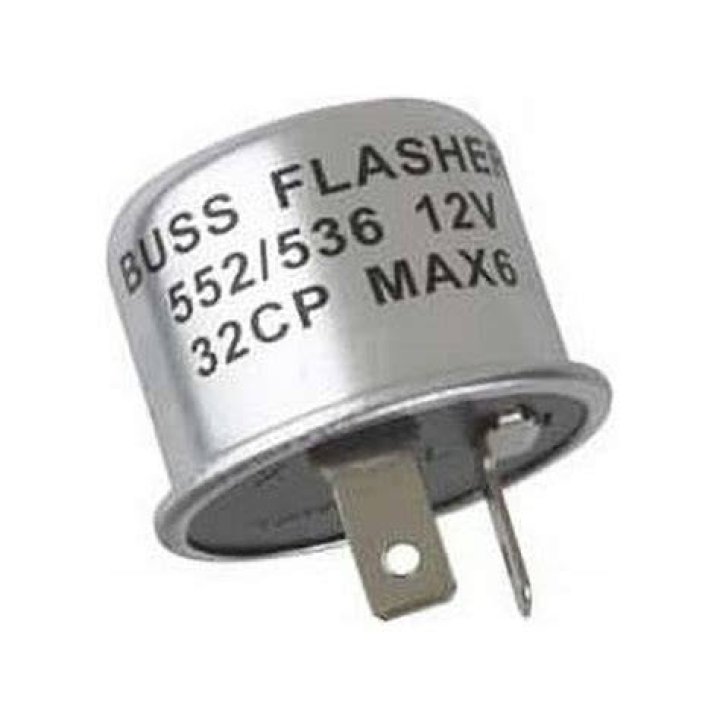

Many people wonder how the older mechanical (or thermal) turn signal flasher works. They are mechanical switches that switch power to the turn signal bulbs using a bi-metallic strip of metal and a heater. These are called thermal flashers because they relay on a heater and a bi-metallic strip to operate.

How do you test a thermal flasher?

To test the conventional type of flasher unit, use a circuit tester between the terminal marked B on the unit and the earth. Turn on the ignition . If the supply side of the unit is working, the bulb should light. If it does not, look for a break in the wiring between the unit and the fuse box.

How much does a flasher cost?

Signal Flasher Replacement Cost - RepairPal Estimate. Labor costs are estimated between $40 and $51 while parts are priced at $66. This range does not include taxes and fees, and does not factor in your specific vehicle or unique location. Related repairs may also be needed.

Will LED flasher work with regular bulbs?

Compatibility: All LED flashers from CEC, including the Solid State flashers, are compatible for use with regular bulbs as well as LED bulbs or a mix of LED / regular bulbs. There are many cheap LED flashers on the market that will simply go up in smoke when you put regular bulbs in.

Why is blinker blinking fast?

A bad bulb is by far the most common reason that a signal blinks faster. This is because a bad bulb alters the resistance in a circuit, sending a different current through the blinker. ... Otherwise, inspect each turn signal bulb for signs of failure such as broken filament or dark, clouded glass.

What Makes Turn Signals Work? (Inside a Thermal Flasher Relay) • Cars Simplified

Where is Flasher located?

The hazard / turn signal flasher is a small, electrical device that causes the lights on your vehicle to flash in a rhythmic, steady fashion. It is usually located under the driver's side of the dash, and is wired in-line with the turn signal lever and hazard switch buttons.

Where is the flasher fuse?

This small, cylindrical device is sometimes located in the fuse panel under the dashboard of the car.

What can cause turn signals to not work?

The usual cause of inoperative turn signals is a defective bulb or flasher unit. Prior to performing extensive diagnosis, check the vehicles fuses to ensure they are not blown. Some vehicles utilize two fuse boxes, one in the passenger compartment and another under the hood.

Are all flasher relays the same?

They come in a variety of shapes, sizes, and designs, which will vary according to the specific needs of the vehicle. When current is applied to the relay the circuit inside cuts on and off, which results in the clicking sound of the relay, as well as the flashing of the turn signal or hazard lights.

How do LED flashers work?

The circuit for blinking an LED using transistors is called an Astable Multivibrator. ... The two capacitors C1 and C2 will alternate between being charged and discharged and thereby turning the transistors ON and OFF. When a transistor is ON it allows current to flow through it so that the LED above it will light up.

Do you need two flasher relays?

You also only need one LED Flasher Relay per bike, so unlike Resistors that could require up to 4 resistors if you were changing the front and rear turns signals to LED, the LED Flasher Relay method only requires one, and works with a total LED signal swap or a mix of LED and incandescent bulbs.

Why do my hazard lights work but my turn signals don t?

When your hazard lights don't illuminate but the turn signals work, usually you are dealing with a faulty hazard-lights flasher. However, if the flasher unit is working fine, check the fuse. ... Finally, check for an electrical open or a short circuit in the wiring that connects to the external lights.

Are turn signal flashers universal?

Universal Flasher Unit 9-30 V

The electronic Universal Flasher Unit is used for turn signal and hazard warning light applications. The flasher unit can be used in various vehicle types. Versions with indicator LED (additional function indication) or start/stop feature are available.

What is a LED flasher relay?

The LED flasher unit is a solid state electronic device that is specifically designed for use on vehicles fitted with LED lights. ... Additionally, the flasher relay has the unique ability to control the flash rate of the vehicles LED directional indicators.

How much does it cost to fix a blinker?

Turn Signal Switch Replacement Cost - RepairPal Estimate. Labor costs are estimated between $80 and $101 while parts are priced between $145 and $150. This range does not include taxes and fees, and does not factor in your specific vehicle or unique location. Related repairs may also be needed.

Are there fuses for turn signals?

Blown fuse: Fuses provide overcurrent protection for electrical units. ... Like all of the lights on and in a vehicle, turn signals rely on a fuse. When the fuse blows, electric power to the turn signals will be shut off entirely. Burnt out bulbs: As with all light bulbs, turn signal lights can burn out and die.

How do you change a signal flasher?

1. Materials Needed.
2. Step 1: Locate the turn signal flasher. Look to your user's manual for information on the flasher's location. ...
3. Step 2: Remove the old flasher. ...
4. Step 3: Install the new flasher. ...
5. Step 4: Test the hazards and blinkers.

What is an electronic flasher unit?

Tools. Flasher units are designed to control the flash rate of vehicle directional indicators; this is achieved by providing regular interruption of the electric current in the indicator circuit.

Is Hyper Flash bad?

If you're asking if it hurts the electrical system, probably not. - It may wear out the flasher faster than it would have, which is still probably never. - It will make it look like you have a blinker burned out, but as long as you don't, I can't imagine that hyperflash in and of itself is illegal.

What does left and right signals flashing mean?

left and right signals flashing at same time- tells drivers there is something wrong. ABS alert light. tells the driver that the ABS is not functioning properly. The ABS keeps wheels from locking if the driver brakes hard.

How do you stop Hyperblinking?

A quick way to alleviate the error message, as well as the hyper flashing, is to change the resistance and draw of the turn signal. You can accomplish this by using aftermarket car computer software. This will fix the error message and your hyper flashing at the same time.
