PCIe (peripheral component interconnect express) is an interface standard for connecting high-speed components. Every desktop PC motherboard has a number of PCIe slots you can use to add GPUs (aka video cards aka graphics cards), RAID cards, Wi-Fi cards or SSD (solid-state drive) add-on cards.

What is the difference between a PCI card and a PCIe card?

PCIe (PCI Express®) is the more recently introduced standard for connecting devices to computers. It's software-compatible with PCI but has higher potential bandwidth and greater flexibility than PCI. The PCIe specification is also maintained by the PCI-SIG.

Is PCIe a graphics card?

Typically they will all be PCI Express, but for a graphics card you need a PCI Express x16 slot. There are three versions of this slot, but they're backwards compatible, so a modern PCI Express 3.0 graphics card will work in a motherboard with a PCI Express x16 2.0 slot.

Can a PCIe card fit in a PCI slot?

The answer is no. PCIe and PCI are not compatible with each other due to their different configurations. In most cases, there are both PCI and PCIe slots on the motherboard, so please fit the card into its matching slot and do not misuse the two types.

How do I know if I have PCI or PCIe?

Under the “Graphic Interface” tab, you'll see what type of PCIe connection you have, along with its link width. Look for 'x16' in 'Link Width' and 'PCI-Express 3.0' under 'Version'.

PCI Express (PCIe) 3.0 - Everything you Need to Know As Fast As Possible

Do laptops have PCIe slots?

No laptops have pci or pcie. They do however have mpcie but that is not for gpus and is usually occupied by the wireless card. Laptop's gpu slot is mxm and only high end gaming laptops will have them.

How do I scan my PCI slot to my computer?

Click on the "Motherboard" link located in the navigation pane. The PCI slots on your PC will display under the PCI Data group. The specific type of PCI slot is listed next to "Slot Type" with each PCI entry.

Can I use a WiFi card on a PCI slot?

Yes. It will work in any PCI-e slot (x1, x4, x8, x16).

Can you plug a GPU into a PCI slot?

These motherboards work just fine with only one video card, regardless of how many open slots are available. The graphics card should go into the first PCI Express x16 slot. However, lower slots are usually capable of running the card as well.

Can a WiFi card go in a PCIe x16 slot?

Yes. You can install the PCI-Ex1 wireless card in the bottom PCI-Ex16 slot without issue. While it's an x16 slot, it only wired for x4 (and your card is only x1).

What does PCIe stand for?

PCIe is short for “peripheral component interconnect express” and it's primarily used as a standardized interface for motherboard components including graphics, memory, and storage.

How many PCIe slots do I need for gaming?

Running a stable multi-GPU setup for gaming will need your motherboard to have at least two mechanical PCIe x16 slots, each equipped with a minimum of 16 PCIe 3.0 lanes or 8 PCIe 4.0 lanes each.

Which slot is best for GPU?

As a rule of thumb, you should put the graphics card in the first PCIe x16 slot of your motherboard. The first PCIe x16 slot has 16 lanes and thus can offer the highest throughput compared to the rest of the PCIe slots found on your PC.

Is PCI still used?

Peripheral Component Interconnect, or PCI, is the most common way to attach add-on controller cards and other devices to a computer motherboard. This type of connector originated in the early 1990s, and is still in use today. Presently, there are three main PCI motherboard connectors (usually referred to as "slots".)

Can you put a PCIe x4 in a x16 slot?

PCIe boards can fit into slots designed for their lane configuration or higher. Plugging a x4 PCIe into a x16 slot (up-plugging) is acceptable. The opposite (down-plugging) is not physically supported.

What is AGP 8X?

Nvidia's new products –codenamed the NV18 and NV28—are simply AGP 8X versions of the GeForce4 Ti 4200 and the GeForce4 MX 440 desktop graphics chips. ... AGP 8X doubles the graphics bandwidth of the AGP interface to 2.1 gigabytes per second.

Do all motherboards have PCIe slots?

Every desktop PC motherboard has a number of PCIe slots you can use to add GPUs (aka video cards aka graphics cards), RAID cards, Wi-Fi cards or SSD (solid-state drive) add-on cards. The types of PCIe slots available in your PC will depend on the motherboard you buy.

Why is PCI used?

Stands for "Peripheral Component Interconnect." PCI is a hardware bus used for adding internal components to a desktop computer. ... Adding PCI cards was an easy way to upgrade a computer, since you could add a better video card, faster wired or wireless networking, or add new ports, like USB 2.0.

Why are GPUs so expensive?

The demand is greatly outnumbering the supply. The same GPU I bought last year for $300 is selling for over $650 on ebay. Trump's tax tarifs are a major culprit, at least here in the US. 3rd party GPU vendors (think Asus, EVGA, Sapphire, etc) have had to markup prices by around 25% as a result, which is HUGE.

Is PCIe WiFi faster than USB?

As mentioned earlier, the performance of the PCIe WiFi card is much better due to the fact that most of the newer cards conform to the WiFi 6 protocol. They have a max transfer speed of 2.4 Gbps. USB WiFi cards, on the other hand, still operate at the speed of WiFi 5. They have a max transfer speed of 867 Mbps.

What do PCI slots do?

A PCI slot is a built-in slot on a device that allows for the attachment of various hardware components such as network cards, modems, sound cards, disk controllers and other peripherals. It was often a component of traditional do-it-yourself (DIY) desktop computer design.

Does it matter which PCIe slot I put my WiFi card in?

It doesn't matter which slot its installed in, also that PCIe 2.0 slot is FAR faster than your WiFi could ever put out, that isn't your speed bottleneck.

How do you know if your PCI Express slot is bad?

1. Take the card that you know for sure works from the suspected faulty PCIe slot.
2. Insert it into another PCIe slot.
3. If the problem persists, then the issues lies with card.
4. If the problem resolves and the card is operating fine, then the issues lies with the PCIe slot.

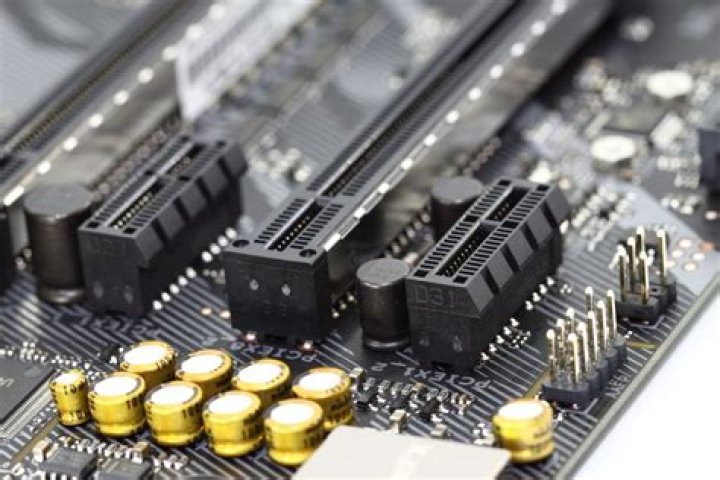

How does a PCIe slot looks like?

PCI Express slot is basically rectangular that protrudes out of the motherboard and has many terminals on either side. PCI Express slots look different depending on their sizes, x1, x4, x8, and x16. ... That's because many expansion cards that go into PCIe slots expose some ports outside the computer.

Should I upgrade to PCIe 4?

PCIe 4.0 is worth the upgrade, especially now, given that PCIe 4.0 motherboards and PCIe 4.0 expansion cards are increasingly becoming an industry standard as PCIe 3.0 is phased out. ... As of March 22, 2021, though, only the AMD B550, X570, and AMD TRX40 Threadripper motherboards support PCIe 4.0.
