“Tinning” is the practice in which a stripped wire is coated with a thin layer of a tin compound. However, there is the associated problem of the wire becoming loose when used with screw-style terminal blocks. One common reason for tinning is to prevent wire strands from fraying when connecting to the termination site.

What is the purpose of tinning a wire?

The main point of tinning stranded wires is to create a stronger contact point when connecting wires to the correct terminals. When you use a soldering iron to add rosin-core solder to the wire strands, the solder fills in the voids between the wire strands and causes the loose, fine wires to become one solid wire.

What is tinning and why is it important?

Tinning the tip means covering the tip with a layer of solder. ... Tinning the tip extends the life of the tip by preventing oxidation and corrosion, but it also causes the solder wire to melt and flow more easily over the parts you are joining, making the overall soldering process go smoothly.

Do you need to tin wires?

The reasoning behind not tinning the wire is, if the wire is tinned, when the screw closes down on the wire, it would break the solder joint and leave an opening within the strands, which can be susceptible to vibration, loosening and corrosion. By not tinning the wire, you can get a better gas tight joint.

How can you tell if a wire is tinned?

based on the size of conductors you are likely dealing with it's tinned. You can tell this by simply snipping off the end (very small piece) and looking at the end of the conductor.

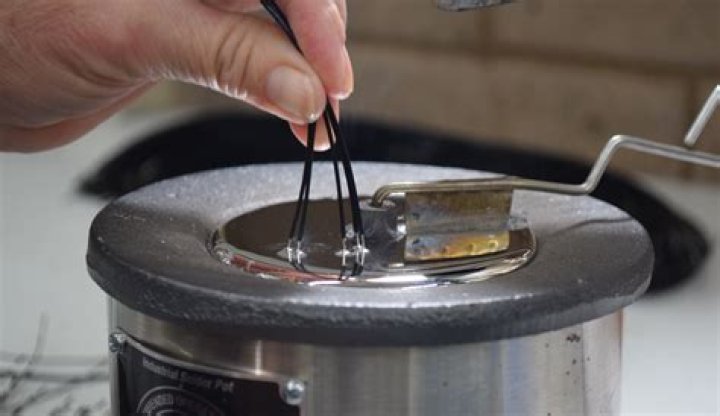

How to tin a wire

Are tinned wires bad?

In damp and specifically corrosive (salt water) environments, un-tinned wire is susceptible to corrosion, which creeps along the wire, so you can't just cut a foot off and expose bare copper) while tinned wire ends remain usable.

What is zinc wire?

The zinc/aluminum wire is used mainly in the maritime sector and in the off shore industry as metallization with zinc/aluminum provides an extremely durable corrosion protection. ... Metallization is a surface treatment which is always applied to a 100% clean, dry and shot blasted surface.

Can you crimp tinned copper wire?

standards recommend that tinned wire not be used in crimp terminations, under screws (such as in terminal blocks) or when forming mesh splices. The reasoning behind these standards is that downward pressure from the crimp, screw or splice will break the solder joint.

What is the purpose of tinned copper wire?

Tinned copper is primarily used for protection against oxidation and corrosion. In climates where copper has long-term exposure to water, the oxygen will combine with the metal and form copper oxide, weakening the bonds of the metal. It is worse if the wire is in contact with salt water.

How is tinning done?

Tinplate made via hot-dipped tin plating is made by cold rolling steel or iron, pickling to remove any scale, annealing to remove any strain hardening, and then coating it with a thin layer of tin. Originally this was done by producing individual or small packs of plates, which became known as the pack mill process.

Is tinned wire better than copper?

Bare copper is fairly resistant to corrosion, but when it is used in wet environments or places with high humidity, it can quickly become damaged. ... Tinned copper is better equipped to resist humidity, high temperatures and wet environments.

What kind of solder do you use to sweat copper pipe?

Buy lead-free solder that's designed for copper water pipes; you'll find it in the plumbing section of the store. Solder with lead is still available, but the lead can leach into your water supply, so don't use it.

Should you solder wire in screw terminal?

Q: Should stranded copper wires be tinned with solder for connecting in screw terminals. A: Industrial best practice is to NOT tin wires that are to be terminated with screw terminals. First the reason this is so is that the differing thermal expansion rates of copper and solder cause a problem.

Is tinned wire better?

Well, the short answer is that tinned copper is copper coated by a base alloy such as solder better known as tin. ... Primarily, it strengthens the copper's natural properties, making it better equipped to resist humidity, high temperatures and wet environments which is why it is found in high quality marine wire.

Is tinned wire easier to solder?

Tinned copper wire is just as conductive as bare copper wire, but the thin layer of tin helps the wire resist corrosion. Tinned copper wire can last up to 10 times longer than its non-tinned counterpart, and because solder is composed primarily of tin, tinned wire is incredibly easy to solder.

Is Marine wire necessary?

This will eventually lead to cracking of the insulation which will let moisture in. Without the tinning we talked about before, these cracks will lead to more corrosion. This is why it is essential to only use marine cable on your boat.

What uses zinc wire?

Today zinc metal has more industrial used. Applications: Zinc wire is widely applied to thermal spraying anticorrosion, container, bridge, head frame, storage tank, electric iron tower, poles and towers, capacitor, metal bracket, nodular cast iron pipe, traffic equipment, etc.

Is copper a wire?

A copper wire is a single electrical conductor made of copper. ... Copper has the lowest resistance to the flow of electricity of all non-precious metals. Electrical wiring in buildings is the most important market for the copper industry. About half of all copper mined is used to make electrical wire and cable conductors.

How is zinc wire made?

A method for manufacturing a zinc wire includes the following steps: (1) casting a molten zinc ingot into a zinc rod; (2) annealing the zinc rod by heating the zinc rod at a temperature of 250° C. -310° C.

What does tinned copper wire look like?

Plated copper wire [tinned copper wire] is relatively common in older homes, and it looks like aluminum wire. It was commonly used with rubber-based insulation. Identification can be made by careful inspection of a cut end of the wire.
