Unbraced columns are basically those column which are designed to resist the lateral loads caused by wind load and earthquake loads. It has more serviceable area as compared to the braced columns structure. As it s easy to provide openings in braced columns structure.

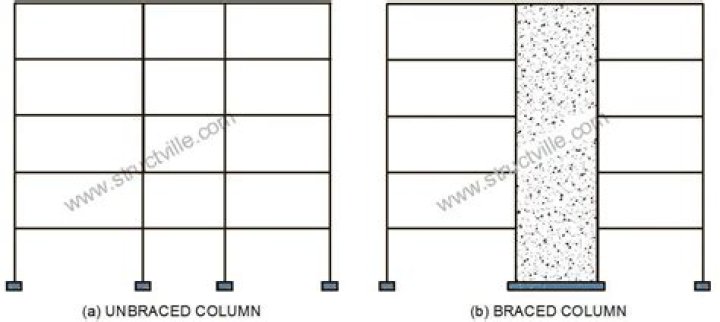

What is braced and Unbraced columns?

A structural system consists of different members such as footing, braced and unbraced column, beam, slab etc. Braced and unbraced columns are basically vertical members which go throughout the height of the structural system i.e. from foundation to terrace.

What is Unbraced frame?

A structural framework in which the resistance to lateral load is provided by the bending resistance of its structural members and their connections.

What is braced structure?

A braced frame is a really strong structural system commonly used in structures subject to lateral loads such as wind and seismic pressure. The members in a braced frame are generally made of structural steel, which can work effectively both in tension and compression.

What is bracing used for?

A bracing system serves to stabilize the main girders during construction, to contribute to the distribution of load effects and to provide restraint to compression flanges or chords where they would otherwise be free to buckle laterally.

What is a braced and unbraced column | Reinforced Concrete Interview Questions

Why is bracing needed?

The primary function of bracing is to provide stability and resist lateral loads, either from diagonal steel members or from a concrete 'core'. For bracing frames, beams and columns are designed only to support vertical load, since the bracing system should carry all lateral loads.

What is Unbraced length of beam?

If the Consider Point of Inflection option is selected, the unbraced length is the distance between points where the compression flange (whichever flange is in compression at any particular point) is braced, not the distance along a given flange where that flange is braced.

What is Unbraced length LB?

Enter the unbraced lengths for buckling about the strong (y-axis) and weak (z-axis) axes of the selected compression members. Enter the laterally unbraced length for the compression flange of a member bent about its weak axis. Note.

What is the difference between short column and slender column?

A short column is defined as one in which the ultimate load is not reduced by the bending deformations because the additional eccentricities Δ=e2 are negligible. A slender column is defined as one in which the ultimate load is reduced by the amplified bending moment caused by additional eccentricity.

Why bracing is provided in column?

Bracing in vertical planes (between lines of columns) provides load paths to transfer horizontal forces to ground level and provide lateral stability.

What is long column and short column?

1. If the ratio of effective length to its least lateral dimension is less than or equal to 12 then it is called short column. If the ratio of the effective length of the column to its least lateral dimension is greater than 12 then it is called a long column. 2.

What is slender column?

Slender columns can be defined as columns with small cross sections compared to their lengths. Generally, slender columns have lower strength when compared to short columns, for a constant cross section, increasing the length causes a reduction in the strength.

What Is an axially loaded column?

28.1 INTRODUCTION. A reinforced concrete column is said to be subjected to an axial load when the line of the resultant thrust of loads supported by the column is coincident with the line of C.G. of the column in the longitudinal direction.

What is lacing in steel structure?

Lacing consists of connecting the components of the column by a system of generally flat plates. (In some cases angles and channels are also used as lacings). Lacing plates may be 50 mm to 75 mm wide and 8 mm to 10 mm thick.

What is sway and non sway frames?

FAQs. What is sway and non-sway frame? A frame is considered to be non-sway (braced) if it is sufficiently braced by lateral bracing elements like structural walls. On the other hand, frames that provide lateral resistance only through columns are considered to be sway frames (unbraced).

What is CB in steel design?

Cb is a modification factor used in the equation for nominal flexural strength when determining Lateral-Torsional Buckling. The reason for this factor is to allow for non-uniform moment diagrams when the ends of a beam segment are braced.

What is CB value in AISC?

AISC-05 recommends a cb value of 2.27 for reverse curvature bending, as per User Note in section F1.

What is a compression flange?

The widened portion of a beam or girder, such as the horizontal portion of the cross section of a simple-span T-beam, which is shortened by bending under a normal load.

How do you find the maximum Unbraced length of a beam?

1. A quantity that is often used when designing a steel beam according to CSA Standard S16 Clause 13.6 is L_u , the longest unbraced length with which the beam will reach either M_r = φ M_p or M_r = φ M_y , depending on the class of the cross-section. ...
2. when M_u > 0.67 M_p . ...
3. and ω₂ = 1.0 for a beam under uniform moment.

What is LP and LR in steel?

Lp for doubly symmetric compact I-Shaped Members and channels bent about their major axis is defined by Equation (F2-5). 3.Lr represents the unbraced length. at which lateral-torsional buckling transitions from the inelastic range to the elastic range.

What is unsupported length of beam?

The unsupported length of a column is the undisrupted distance between the floor and the lower beam. In order to get the effective length of the column, you have to take the effective stiffness factor and multiply by the unsupported length of the column.

What is bracing in truss?

A roof truss is made of several pieces of wood that are joined together. Each piece of the truss is referred to as a "member". A brace is a member that prevents a structural element from buckling or racking. ... Under the same compressive force, the brace prevents the member from buckling.

What are the different types of bracing?

• Metal braces.
• Ceramic braces.
• Self-ligating braces.
• Lingual braces.
• Clear aligners like Invisalign.

What does bracing mean in construction?

In construction, cross bracing is a system utilized to reinforce building structures in which diagonal supports intersect. ... The common uses for cross bracing include bridge (side) supports, along with structural foundations. This method of construction maximizes the weight of the load a structure is able to support.
