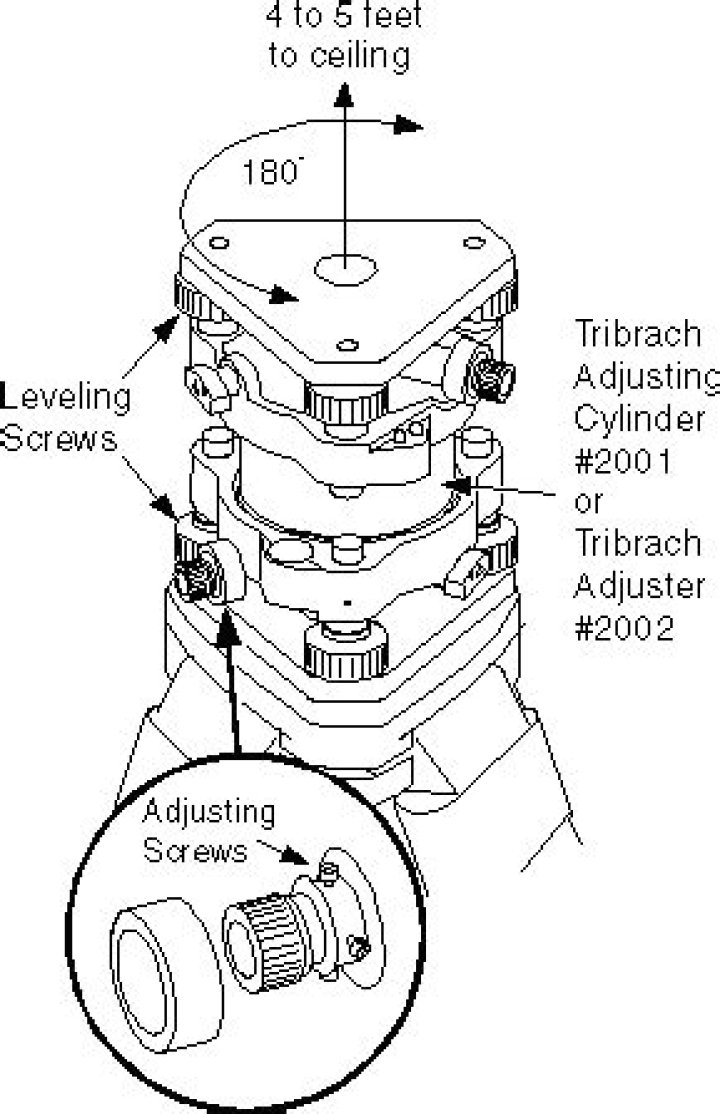

The Seco 2002-00 tribrach adjuster is used for adjusting optical plummet tribrachs and tribrach bubbles.

What is a tribrach used for?

A tribrach is a special plate that can be used to attach any type of surveying equipment (including theodolites, total stations, GNSS antennae) to a tripod.

How do you do the tribrach test?

Check the set up and calibration of the tribrach by rotating the adapter 180o and check the plummet. If the tribrach is off center by more then 1mm then loosen the tripod head screw and gently slide the tribrach and adapter half the distance it was off. Rotate the adapter 180o and recheck the plumb.

How does a tribrach work?

A tribrach allows the survey instrument to be repeatedly placed in the same position over a surveying marker point with sub-millimetre precision, by loosening and re-tightening a lock to adjust the instrument base in a horizontal plane.

Why do surveyors use theodolites?

The theodolite is an instrument that can measure both horizontal and vertical angles, which allows surveyors to “triangulate” the position of objects in a specific area.

How to Use a Seco Tribrach Adjusting Cylinders

What is leveling head surveying?

The Leveling head usually consists of two parallel plates the upper plate is supported over the lower plate by three or four-foot screws or leveling screws by which the instrument may be leveled. Most of the modern Levelling instruments are designed to have three-foot screws because they are easily leveled.

What is the difference between dumpy level and auto level?

Compared to an automatic level, a dumpy level is easier to manipulate but requires more precision from the surveyor. ... Like automatic levels, dumpy levels require support from a tripod that is raised to eye level. Dumpy levels feature high optical power that allows for accurate, reliable long-range readings.

What is reversible level?

5. Cooke's Reversible Level. Cooke's reversible level is the combination of dumpy level and y-level. In this instrument, the telescope can be reversed without rotation the instrument. Collimation error can be eliminated in this case because of bubble left and bubble right reading of telescope.

What is level used for?

A level is a tool used to determine whether a surface is horizontal (level) or vertical (plumb).

How accurate are theodolites?

A number of investigators reported results of similar tests using theodolites, not levels. For distances less than 150 m, almost all investigators reported accuracy values in the range from 1/600 to 1/2100.

How many types do theodolites classified?

Explanation: Theodolites are classified into two types. They are transit theodolites and non – transit theodolites.

What is digital theodolite?

Digital theodolites consist of a telescope that is mounted on a base, as well as an electronic readout screen that is used to display horizontal and vertical angles. Digital theodolites are convenient because the digital readouts take the place of traditional graduated circles and this creates more accurate readings.

What is Tripod Survey?

Tripod surveys were first administered as part of a school-based initiative focused on raising achievement for all students while reducing the Black/White achievement gap. Tripod surveys include measures to capture student perceptions of diversity, equity, and inclusion.

Can a theodolite measure distances?

A total station consists of a theodolite with a built-in distance meter (distancer), and so it can measure angles and distances at the same time.

What are the 2 types of theodolite?

• Repeating Theodolite. Repeating theodolites refer to those theodolites which measure angles on a graduated scale. ...
• Direction Theodolites. Direction theodolites refer to those theodolites which determine angles through a circle. ...
• Vernier Transit Theodolite. ...
• Solved Question For You.

Do surveyors still use theodolites?

Though rarely used nowadays, the theodolite was the predecessor of modern survey instruments. It measures angles in the horizontal and vertical planes, and can be very accurate.

How accurate is a builder's level?

You get a builder's level with an accuracy within ¼-inch per 100 feet and 20x magnification that offers a visibility range of 200 feet or more. It also includes a heavy-duty leveling base that's quick and easy to set up, plus a measuring rod for your partner to hold on the other end.

What is dumpy leveling?

Leveler for use by hand. A dumpy level, builder's auto level, leveling instrument or automatic level is an optical instrument used in surveying and building to transfer, measure, or set horizontal levels.

What is the most common type of level?

The most common and versatile style is the box-beam level, sometimes called a box level. Box-beam levels are constructed of a rectangular or box-shaped frame. They are usually extruded metal, usually aluminum.

How many types of leveling are there?

Reciprocal leveling : Along a river or pond. Two level simultaneously used, one at either end. The fly leveling is done at the end of day's work starting point on that particular day si known as check leveling. (II) Indirect or Trigonometric Leveling : By measuring vertical angles and horizontal distance; Less precise.
