What does a crankpin do?

A crankpin is the part of the crank of a crankshaft to which the connecting rod is attached. Crankpins transfer up-and-down motion between the crankshaft and connecting rod. The big end of the connecting rod is connected to the crankpin of the crankshaft by way of a bearing.

What is crankpin offset?

In order to find the correct crankpin offset angle, we subtract twice the cylinder vee angle from 180. Thus, in the case of a 52-degree vee angle, we would subtract (2 X 52) = 104 from 180 to get a 76-degree angle between the two offset ("split") crankpins.

What is crank web?

: the portion of a crank between the crankpin and the shaft or between adjacent crankpins. — called also crank arm, crank throw.

What is a crank number?

In number theory, the crank of a partition of an integer is a certain integer associated with the partition. The term was first introduced without a definition by Freeman Dyson in a 1944 paper published in Eureka, a journal published by the Mathematics Society of Cambridge University.

What is a STROKER motor...?

16 related questions found

What is a crankpin journal?

A crankpin journal is a precision ground surface that provides a rotating pivot point to attach the connecting rod to the crankshaft. The throw is the measurement from the center of the crankshaft to the center of the crankpin journal, which is used to determine the stroke of an engine.

What is CC on engine?

The capacity of a motorcycle's engine is measured in terms of cubic capacity. Cubic capacity, also known as “cc" of vehicles, usually ranges between 50cc to 1500cc. ... The engine capacity is the space/ volume available inside the tank to accommodate the air-fuel mix for burning.

What is crankshaft Ovality?

Ovality is necessary for the piston to move up and down in the cylinder bore, as the crankshaft and connecting rod try to force the piston upward, and combustion forces the piston downward, ovality allows the piston to move without binding in the round cylinder bore."

What are the parts of a crankshaft?

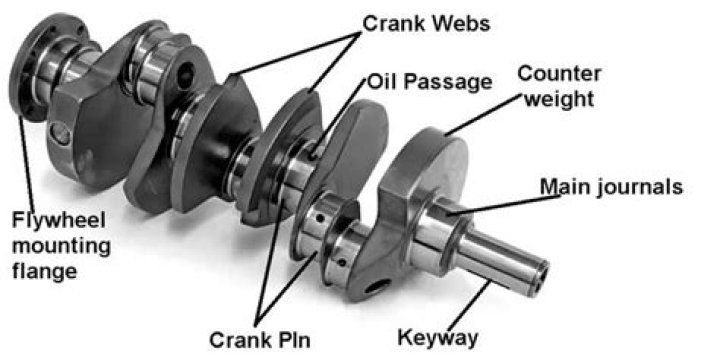

Parts of Crankshaft

• Crankpin.
• Main journals.
• Crank web.
• Counterweights.
• Thrust washers.
• Oil passage and oil seals.
• Flywheel mounting flange.

What is in the engine block?

An engine block contains the main components of an internal engine. It houses the water cooling system, crankcase, and cylinders and their components. The use of metal in its construction gives it strength and the ability to efficiently transfer heat from the combustion process to the main cooling system.

How do you measure crankpin Ovality?

Ovality is checked by taking a pair of micrometered diameters of the journal or pin at the centre of the bearing and at each end and at right angles to each other. The manufacturer's handbook will give the allowable amount of ovality or wear.

What is crank angularity?

Filters. (motors) The angle of rotation of a crankshaft measured from the position in which the piston is at its highest point known as top dead center (TDC).

What is a piston crown?

As a very important part of your engine's combustion chamber, the piston crown seals the cylinder and transmits gas pressure to the connecting rod. ... It is therefore highly advisable that you ensure your engine's piston crowns are kept in optimal working order.

Where is piston pin and crank pin?

The crankpin connects to the larger end of the connecting rod for each cylinder. This end of the connecting rod is called the "big end", as opposed to the "small end" or "little end" (which connects to the wrist/gudgeon pin in the piston).

Where are piston pin located?

Gudgeon Pin (Piston Pin) : Method, Design & Working Conditions :- The gudgeon pin is mostly found in an internal combustion engine that is found connecting the piston to the connecting rod which acts as a bearing for the connecting rod and pivot as the piston moves.

What is a piston skirt?

marine. A thin cylinder of material fitted at the bottom end of a piston. It serves to close the ports in a two-stroke engine.

What are the 4 main components of a crank?

A crankshaft comprises the following components:

• Main journals.
• Crank pins.
• Crank webs.
• Counterweights.

Where is the crankshaft located?

What Is a Crankshaft? Located in the “bottom end” of an engine, the crankshaft harnesses the tremendous force of combustion (the violent burning of the air and fuel in the combustion chamber) by thrusting the pistons downward, causing the crankshaft to rotate.

What is crankshaft construction?

Crankshaft includes main bearing journals and rod bearing journals, counterweights, web of crank, flywheel flange and pulley end. ... Rod bearing journals provides the connect of crankshaft to connecting rod. Main bearing journals enters bearings installed in the cylinder block.

Why are piston skirts oval in shape?

The piston is designed to be an elliptical shape when cold. As the engine reaches operating temperature, the piston pin bore area expands more than other thinner areas of the piston. ... This reduces noise, spreads the force of the directional change across a greater surface, and reduces side loading on the piston skirt.

How many types of pistons are there?
