: to remove sand from.

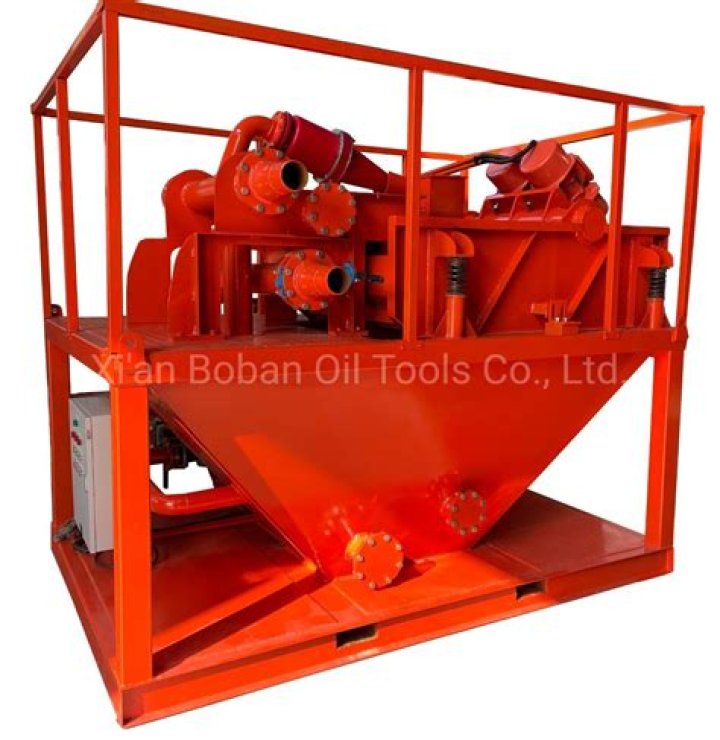

What is a Desanding machine?

Desanders and desilters are solid control equipment with a set of hydrocyclones that separate sand and silt from the drilling fluids in drilling rigs. ... Desanders are installed on top of the mud tank following the shale shaker and the degasser, but before the desilter.

What is a Desilter?

A desilter is a device, usually a hydrocyclone, at the surface which removes very small particles from the drilling mud. A desilter is a centrifugal device for removing very fine particles or silt from drilling fluid to keep the amount of solids in the fluid at the lowest possible point.

What is desander in oil and gas?

By definition, a “desander” is a solid-liquid hydrocyclone that operates with an enclosed underflow and an accumulation section (integral or separate) with a batch discharge, as shown in Figure 2. They are also called water-sealed hydrocyclones or grit separators.

How does desander work?

SDI's Desander works by changing the flow parameters, reducing the flow velocities to the point where the sand drops out while gas and fluids are carried through. This process involves no bags, filters, screens and virtually no pressure drop. Specialized Desanders function effectively over a broad range of flowrates.

What does desand mean?

What is Desander in hydropower?

Desanders are structures located in the diversion channels intended to remove suspended sediments and avoid or minimize those damages. This study contributes to the Brazilian literature regarding the design of complex desanders in run-of-river hydropower intakes.

What are hydrocyclones used for?

A hydrocyclone is a high-throughput gravity separation device used for separating slurry particles based on particle weight. For example, particles of similar size but different specific gravity, or particles of different size but identical specific gravity.

What is the difference between Desander and Desilter?

Desander cones are usually available 8 – 12 inche (normal 10 inch) to remove drilling solid particles upto 60 microns with 4 inch inlet and 6 inch outlet; desilter cones are 4-6 inche ( normal 4 inch) to remove solids particle (fine sands and silt) down to 20 micron with 2 inch inlet and 2 inch outlet.

What is the function of degasser?

A degasser is a device used in drilling to remove gasses from drilling fluid which could otherwise form bubbles.

What is shale shaker in drilling?

Shale shakers are components of drilling equipment used in many industries, such as coal cleaning, mining, oil and gas drilling. They are the first phase of a solids control system on a drilling rig, and are used to remove large solids (cuttings) from the drilling fluid ("mud").

What is mixing hopper?

DESCRIPTION. VENTURI MIXING HOPPERS are designed to aid in the introduction of dry powdered drilling fluid, polymers, and additives into a liquid phase, decreasing the time required for mixing and increasing the yield of drilling fluid, polymers, and additives though better shear.

What is a drilling centrifuge?

1. n. [Drilling Fluids] An item of solids-removal equipment that removes fine and ultrafine solids. It consists of a conical drum that rotates at 2,000 to 4,000 rpm. Drilling fluid is fed into one end and the separated solids are moved up the bowl by a rotating scroll to exit at the other end.

What is degasser pump?

Degassers are used to remove gas in the mud that is to be pumped into desanders using centrifugal pumps. From: Applied Drilling Circulation Systems, 2011.

What is degasser in DM plant?

Degasser for Demineralisation (DM) Plant

Degasser is an integral part of any demineralization plant, where it is generally placed between cation and anion exchanges and removes Carbon Dioxide, which is generated by dissociation of carbonic acid at cation outlet water.

Why is degassing important?

Degassing is a crucial step after mixing (sometimes degassing is also required after casting) to eliminate residual pores in the slurry. These pores can be introduced during either mixing or the chemical reaction, or they can form as a result of entrapped air during casting.

What is Desilter in drilling?

1. n. [Drilling] A hydrocyclone much like a desander except that its design incorporates a greater number of smaller cones. As with the desander, its purpose is to remove unwanted solids from the mud system.

What is cyclone roping?

Roping is the third and final condition, where pressure is intensified inside the hydrocyclone. As a result, the underflow volume is reduced, causing particles that are larger than the desired product size to travel to the overflow, affecting the following process and damaging metallurgical parameters.

What does vortex finder mean?

Tube projecting into central vortex of hydrocyclone or dense medium cyclone through which the classified fines or lighter specific gravity fraction of pulp leaves the system.

What is a cyclone vortex finder?

A cyclone separator is a device that separates solid particles from a gas–solid two-phase flow by centrifugal force. ... Meanwhile, smaller particles, with lower relative velocity, are inclined to be lifted up by the upward vortex close to the geometric center of the cyclone and discharged via the vortex finder.

What is degasser HPLC?

The Vacuum Degasser is designed to remove gases from a liquid such as the mobile phase used in HPLC. The following precautions should be followed to minimize the possibility of personal injury and/or damage to property while using the system.

How do you Dega gel?

Therefore, one of the most important steps in the preparation of polyacrylamide gels is the evacuation, or “degassing” of gel solutions immediately prior to pouring the gel. This is done by placing the flask of gel solution in a vacuum chamber or under a strong aspirator. In some cases, a vacuum pump may be required.

How does an RH degasser work?

RH degassers (RH) are suitable for quickly degassing from large quantities of molten steel. ... Argon gas is blown from the sides of one of the snorkels, circulating the molten steel into the vacuum chamber using the buoyancy of the blown gas and removing dissolved gases such as hydrogen from the molten steel.

What removes barite from mud so the barite can be reused?

While reusing barite, our centrifuges remove and discard the finer, lower-gravity solids that can create havoc with drilling fluid properties.

How does a shale shaker work?

The shale shaker separates the cuttings from the drilling fluid by running it through a vibrating screen, allowing the fluid to be pumped back into the well and reused. In addition to saving money, reusing drilling fluid means it doesn't have to be disposed of, reducing regulatory and compliance costs.

What are Shaker screens?

Shaker screens is the exact media contacting drilling cuttings. Drilling fluid with cuttings or harmful solids flow through screen panel, and then under vibration filtering particles out. We know screen cloth, especially the surface layer is thin or extra thin, it's easy to broken.
