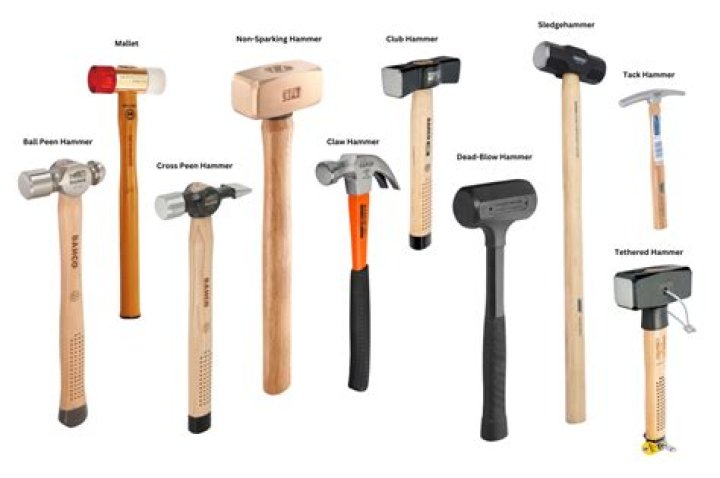

Sledge hammers have heads that weigh from 8 to 20 pounds, which are forged from heat-treated high carbon steel. They usually have two rounded striking faces with beveled edges to minimize chipping. Thirty-six inch handles are common. Handles can be fiberglass or wood.

What kind of steel are hammers made from?

The main steels used to make hammers are 4140, 4340, and 1045 steel. If you are making a hammer in your forge, you may want to use 1045 steel due to its simplicity and convenience. However, if you are looking for a steel that will create a sturdy and long-lasting hammer, you may opt to use 4340 or 4140.

Why are sledge hammers so expensive?

What makes a sledgehammer so expensive? The handle material and head size usually influence the price of a sledgehammer. For example, sledgehammers with a wide head made of steel and a reinforced steel handle are more expensive than a small sledgehammer with a wooden handle.

What is the strongest sledge hammer?

The Wilton B.A.S.H^® Unbreakable^® Handle Sledge Hammer is the toughest sledge ever built. With molten steel bars reinforcing the handle, and a locking steel plate holding the head to that handle, the B.A.S.H^®will hold up when you need it most.

Will a sledge hammer break concrete?

When thinking about breaking up concrete, most of our minds jump straight to jackhammer. But you can probably do the work with a metal sledgehammer and a little elbow grease. Sledgehammer is the best tool to use if the slab of concrete is three inches thick or less.

HOW TO FORGE A 12LBS SLEDGE HAMMER

Is 4140 good for shafts?

4140 steel plate has high fatigue strength, excellent toughness, and good corrosion resistance. ... This material is often used for shafts, crankshafts, gears, collars, and machinery parts because of its toughness, abrasion and impact resistance, and high fatigue strength.

Is 4140 steel good forging?

Forging of this steel should be carried out between 2200 and 1650 º F (1200 and 900 º C). ... This alloy should ideally not be forged below 1650 º F (900 º C) and should be slow cooled after forging.

What is the difference between 4140 and 4340 steel alloys?

However, 4340 has more carbon, while 4140 has more chromium. One of the most significant differences between the two metals is the inclusion of nickel in 4340 steel, which accounts for the metal's greater strength and fracture toughness.

Whats better 4140 or 4340?

The 4340 is stronger than the 4140. 4140 that has been Hot Rolled, and Normalized has a tensil strength of 148,000 PSI, and a yeild of 95,000 PSI. 4340 that has been Hot Rolled, and Normalized has a tensil strength of 185,000 PSI, and a Yeild of 125,000.

What is the difference between AISI and SAE?

The Society of Automotive Engineers (SAE) designates SAE steel grades. ... The American Iron and Steel Institute (AISI) originally started a very similar system. Over time they used the same numbers to refer to the same alloy, but the AISI system used a letter prefix to denote the steelmaking process.

How do alloy steels differ from carbon steels?

So what's the difference between carbon steel and alloy steel? Carbon steel is iron with carbon added, whereas alloy steel also includes other elements to modify the properties of the metal.

Can you make a knife from 4140?

It is also very expensive steel compared to some of the higher carbon simple steels like 1080/84 and 1095. It's great stuff to have around for making tools, punches etc but not the best for knives.

What is AISI 410 material?

The AISI 410 is described as stainless, martensitic chrome steel. The chromium content is 11.5 - 13.5%. The special feature of this material is the good corrosion resistance in relation to moderately aggressive chloride-free media. Optimal for this is a polished surface.

What is the Rockwell hardness of 4140 steel?

4140 (modified) Cold Finished, Annealed Alloy Bar Stock

Typical hardness is Rockwell “C” 19/24. Typical tensile strength 114,000 PSI. Its wear resistant properties far exceed that of “cold roll” steels.

Is steel a D2?

D2 is air-hardening tool steel high in carbon, chromium, vanadium, and molybdenum elements. It's a die type of tool steel, hence the designation “D.” It boasts excellent edge retention and features extremely high wear resistance properties.

Can you harden 4140 steel?

AISI 4140 alloy steel can be hardened by cold working, or heating and quenching.

Can you bend 4140 steel?

4140 is usually pretty malleable, In general, you'll always want it to be annealed if you're planning on bending it or else it'll crack. Miserable to bend, cracking is very common and cold bending will always weaken the metal.

What is AISI 430 stainless steel?

Type 430 stainless steel combines good corrosion resistance with good formability and ductility. It is a ferritic, non-hardenable plain Chromium stainless steel with excellent finish quality. Grade 430 also has excellent resistance to nitric attack, which makes it well suited to use in chemical applications.

Is AISI 410 stainless steel?

AISI Type 410 is a martensitic stainless steel that provides high strength and hardness with moderate corrosion resistance. A wide range of properties can be developed with different heat treatments, with ultimate tensile strengths ranging from 500 to 1400 MPa.

What is the difference between 304 and 410 stainless steel?

Type 304 (frequently referred to as 18-8 stainless) is the most widely used alloy of the austenitic group. It has a nominal composition of 18% chromium and 8% nickel. ... Type 410 is the general-purpose alloy of the martensitic group.

Is 1095 steel good for knives?

1095 steel, when used in knives, holds a great edge and is very easy to sharpen. ... Because 1095 steel can be considered more brittle than other types of steel, it is generally good for blades that are not too thin.

Is 1018 steel good for knives?

Mild steel generally comes in two grades, A36 and 1018, with 1018 being the purer of the two. Mild steel is readily available at stores and steel suppliers, but it doesn't have enough carbon to harden, making it unsuitable for knife steel.

Is A2 tool steel good for knives?

Looking at A2 steel, it offers you great toughness, edge retention, and wear resistance. ... Despite its high hardness, a typical A2 steel knife will also sharpen quite easily, another good thing about using this steel for knife making. The only letdown this steel has when it comes to making knives is that it's rust-prone.

Does stainless steel contain carbon?

Stainless steel contains iron, carbon, and at least 10.5% chromium content. ... The chromium is key—it reacts with oxygen to create a passive layer that protects the steel from corrosion.

Which is stronger carbon steel or alloy?

Strength. Alloy Steel: The strength of alloy steel is low compared to carbon steel. Carbon Steel: Carbon steel has a high strength.
