Proportional or servo control valves are generally used to allow the dynamometer control to apply pressure to provide the program torque load with feedback from the strain gauge closing the loop. As torque requirements go up there are speed limitations.

What is a dynamometer used for?

A dynamometer, or "dyno" for short, is a device for measuring force, moment of force (torque), or power. For example, the power produced by an engine, motor or other rotating prime mover can be calculated by simultaneously measuring torque and rotational speed (rpm).

What are the different types of dynamometer?

There are two main types of dynamometers, which are both used frequently in the auto industry and in industrial and manufacturing processes. These are chassis dynamometers and engine dynamometers. Chassis dynos measure automobile wheel rotation with computer software in order to determine engine or motor torque.

What is dynamometer explain the different types of dynamometer?

A dynamometer can be classified into two types:

Power Absorption dynamometers measure and absorb the power output of the engine to which they are coupled. ... Examples of power absorption dynamometers are Prony brake dynamometer, Rope brake dynamometer, Eddy current dynamometer, Hydraulic dynamometer, etc.

What is electric dynamometer?

a device that is designed to measure the torque of electric motors. The torque is varied by adjusting the load resistance and the current in the generator's field winding. ... Electric dynamometers are used to test high-power traction machines.

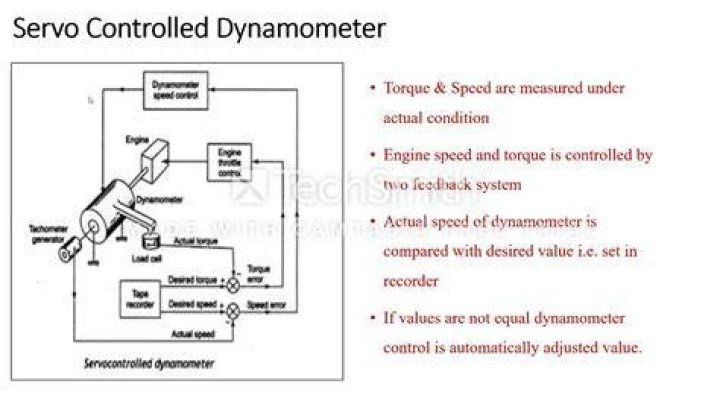

Servo controlled dynamometer |torque measurement | mechanical measurement #dynamometer #servo

How do dynamometers work?

Fluid dynamometers work like water turbines: as you spin their axles, you turn a paddle inside a drum filled with water (or thick oil). That provides the resistance and load, and the power produced by an engine, motor, or other machine under test is dissipated by the water or oil heating up as the paddle turns.

What are the absorption dynamometers?

: any of several dynamometers in which the energy measured is absorbed by frictional or electrical resistances — see prony brake.

Which is the most accurate dynamometer?

Explanation: Swinging field type dynamometer is the most accurate dynamometer. It consists of an electrical machine which may be run either by motor or generator.

How do dynos measure torque?

The torque arm is connected to the dyno housing and a weighing scale is positioned so that it measures the force exerted by the dyno housing in attempting to rotate. The torque is the force indicated by the scales multiplied by the length of the torque arm measured from the center of the dynamometer.

Which is transmission type of dynamometer?

Explanation: Torsional dynamometer is a transmission dynamometer as a result the energy is not wasted in friction but is used for doing work.

How accurate is a dyno test?

about the accuracy of dynamometers, or dynos, as they're most commonly called. The standard deviation for comparing the number retrieved from the dyno (horsepower at the wheels) and the manufacturer's advertised horsepower (at the crank of the engine) is 15 percent to account for power lost through the drivetrain.

Which type of dynamometer is an absorption dynamometer?

Prony brake dynamometer is an absorption type dynamometer.

What is DC dynamometer?

A DC dynamometer is simply a direct current motor or generator that converts the energy created by the crankshaft of an engine into electricity. An AC dynamometer is simply an alternating current motor or generator. Both are universal dynamometers as they can both absorb power and power the engine.

What are the advantages of dynamometer type instruments?

• These types of instruments can be used for both DC as well as ac currents.
• Since iron is absent in the working parts of the instruments, these instruments are free.
• from hysteresis and eddy current errors.
• Ammeters up to 10 A and voltmeters up to 600 V can be constructed.

What is dynamometer instrument?

The electrodynamic or dynamometer-type instrument is a moving-coil instrument but the magnetic field, in which the coil moves, is provided by two fixed coils rather than by permanent magnets (eg: PMMC instruments). ... It consists of two fixed coils, which are symmetrically situated.

What is a dynamometer in physical therapy?

Handheld Dynamometry

A small portable device is held by the examiner and placed against the patient's limb during a maximal isometric contraction. The device can be used to test both proximal and distal muscles in all extremities. Specific dynamometers are used to test grip strength.

What is Dynamometry?

n. the measurement of force expended or power, especially muscular effort or strength. For example, a hand dynamometer is a device for measuring manual grip strength by the amount of force applied to a spring by the hands. ... See Grip Strength Test.

How do dynos measure HP?

Funny Thing About Power

Did you know that an engine really does not make horsepower and a dyno doesn't really measure horsepower either? The twisting force an engine makes is torque and that's what the dyno measures. The data acquisition computer attached to the dyno then calculates horsepower from the observed torque.

What is eddy current dynamo meter?

What is the Eddy Current Dynamometer? An eddy current dynamometer is an electromechanical energy conversion device, which converts mechanical energy to electrical energy. It fundamentally uses Faraday's Law of electromagnetic induction as its working principle.

Which is the most preferred SI engine fuel?

For SI engines the aromatics are the best fuel and the paraffins are least desirable. The reason for this is normal paraffins exhibit the poorest antiknock quality when used in SI engines.

Where is overdrive located?

An Overdrive is a component of a transmission system which is attached at the end of the gear box in order to provide highest gear output with minimum engine input which in turn makes the drive smooth and more fuel efficient.

What is a Morse test?

Morse test is a method to measure the frictional power of a multicylinder SI engine. Morse Test – This test carried out on multi cylinder I.C. engine. In this test, first engine is allowed to run at constant speed and brake power of engine is measured when all cylinders are working and developing indicated power. (

In which of the following dynamometers does the energy produced by the engine is used for doing work?

In which of the following dynamometers does the energy produced by the engine is used for doing work? Explanation: An epicyclic train dynamometer is an example of transmission dynamometer. In these types of dynamometers the energy is not wasted in friction but is used for doing work.

What is rope brake dynamometer?

Dynamometer of rope brake is an equipment to measure the brake power produced by a rotating shaft. ... A rope brake dynamometer uses mechanisms of absorption (friction torque), by using the principle of torque produced by engine equal to frictional torque caused by the rope [1].

What is Transmission dynamometer?

: a dynamometer in which power is measured without being absorbed or used up during transmission — compare absorption dynamometer.
