In the simplest terms, grippers are devices that enable robots to pick up and hold objects. When combined with a collaborative (or 'cobot') industrial robot arm, grippers enable manufacturers to automate key processes, such as inspection, assembly, pick & place and machine tending.

What is the function of a gripper?

A gripper is a device which enables the holding of an object to be manipulated. The easier way to describe a gripper is to think of the human hand. Just like a hand, a gripper enables holding, tightening, handling and releasing of an object. A gripper is just one component of an automated system.

What is the gripper?

A gripper is a motion device that mimics the movements of people, in the case of the gripper, it is the fingers. A gripper is a d evice that holds an object so it can be manipulated. It has the ability to hold and release an object while some action is being performed.

How does a robot gripper work?

The gripper is connected to a compressed air supply network. When air pressure is applied on the pistons, the gripper closes. When the pressure is released the gripper opens. The only way to manage the force in the gripper is to manage the air pressure in the air intake (or valve).

Where are robotic grippers used?

Besides consumer-packaged goods, various types of robotic grippers are used in the pharmaceutical, plastics, and agricultural industries. New specialized fields for robots include undersea exploration, telesurgery, and hazardous materials handling, all with their own gripper needs.

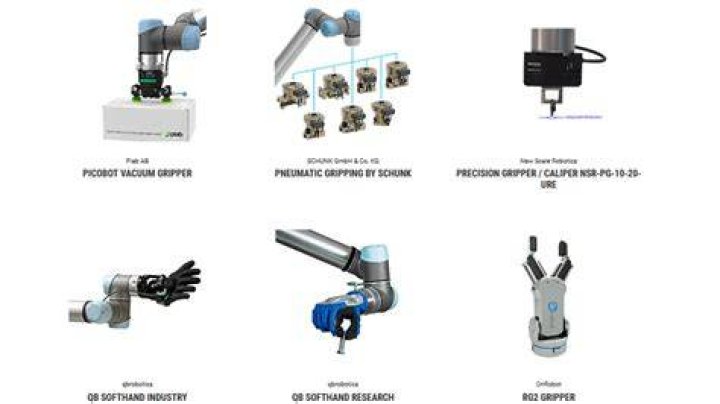

Robot Grippers

What are the types of grippers?

• Parallel Motion Two-Jaw Gripper. ...
• Three-Jaw Gripper. ...
• Bellows Gripper. ...
• Collet and Expanding Mandrel Grippers. ...
• O-Ring Grippers. ...
• Needle Grippers. ...
• Multi-Finger and Adaptive Grippers.

What are the sensors used in robots?

• 1) Light Sensor. Light sensor is a transducer used for detecting light and creates a voltage difference equivalent to the light intensity fall on a light sensor. ...
• 2) Proximity Sensor. ...
• 3) Sound Sensor. ...
• 4) Temperature Sensor. ...
• 5) Acceleration Sensor.

What are pneumatic grippers used for?

Pneumatic grippers are used in many pneumatic systems, as a means of grasping or holding parts; grippers may move, insert, stack or orient the parts to achieve a desired step in a manufacturing process.

What are mechanical grippers?

A mechanical gripper is used as an end effector in a robot for grasping the objects with its mechanically operated fingers. In industries, two fingers are enough for holding purposes. ... It also allows the fingers to perform open and close actions. Most importantly, a sufficient force must be given to hold the object.

What is the main objective of the gripper in the robot?

And, at the end of the arm, robots are often fitted with what are called grippers – special devices designed to help robots handle objects in the real world. Grippers are also known as 'end-effectors' or 'manipulators. ' Human hands are prone to error, especially when assigned to repetitive tasks.

What is active gripper?

The Active Parallel Gripper is a cost-effective and flexible gripping solution for a variety of objects and features linked jaws, a high gripping force and flexible jaw pad positioning. The gripper is pneumatic and may be operated with regulated low-pressure air supply for collaborative applications.

What is robot configuration?

Has the robot's tool moving in a linear motion along each of the Cartesian coordinates (x, y, z). ... This type of configuration can sweep out a box-like work envelope. Many 3D printers have their print nozzles mounted on a Cartesian configuration.

What are robot hands called?

An end-effector, also called a robot hand, can be attached to the end of the chain.

What is active and passive grippers in robotics?

In contrast to active grippers, which require continuous pressurization during gripping and holding, the presented passive gripper only requires energy for the release process. However, due to its working principle, the gripper is restricted to only flat objects or objects with at least one flat surface.

What is drive system for grippers?

The robotic gripper drive system of the present invention employs a compact epicyclic gear arrangement which converts the rotational motion of a drive shaft into a linear motion. This linear motion is via pins which are coupled to the robotic fingers which grip and release objects to be handled by the gripper system.

What are the types of magnetic grippers?

• Magnetic grippers are most commonly used in a robot as an end effector for grasping theferrous materials. ...
• The magnetic grippers can be classified into two common types, namely: Magnetic grippers with.
• Electromagnetic grippers include a controller unit and a DC power for handling the materials.

What is hydraulic gripper?

What is a hydraulic gripper? Hydraulic grippers are heavy-duty grippers that apply the type of forces required to handle heavy (usually >50kg, 110.23 lb) items.

What is magnetic gripper?

Magnetic grippers use a magnetized surface to grab metal items. This type of gripper doesn't usually incorporate fingers or jaws, instead relying on smooth magnetic surfaces for handling. Magnetic grippers are common in industries where sheet metal and automotive parts are being moved along an assembly line.

How is gripping force calculated?

1. Grip Force Required = Part Weight x (1+Part Gs) x Jaw Style factor. ...
2. Jaw Torque = Jaw Length x Grip Force. ...
3. Part Torque= Jaw Length x Part weight x Acceleration. ...
4. Total Torque = Jaw Torque + Part Torque. ...
5. Specifications: 42 Pounds of grip force, 490 in-pounds of torque.

What is the function of the robot controller?

The robot controller is a computer system that connects to the robot in order to control the movements of the industrial robot arm. In addition to the robot arm, the controller is also responsible for the end-effector and to prevent interference from occurring within the robots work area.

What is the end effector function?

An end effector is a peripheral device that attaches to a robot's wrist, allowing the robot to interact with its task. Most end effectors are mechanical or electromechanical and serve as grippers, process tools, or sensors.

Why sensors are used in robotics?

Sensors in robot allow it to react with its environment in a flexible way. With the help of sensors, robots are able to see and feel, and this would help the robot to perform complex tasks. ... In order to control their own actions, robots need to know information about the position and the movement of its body and parts.

Why do robots use sensors?

Robots need to use sensors to create a picture of whatever environment they are in. An example of a sensor used in some robots is called LIDAR (Light Detection And Ranging). ... Lasers illuminate objects in an environment and reflect the light back. The robot analyzes these reflections to create a map of its environment.

What is light sensor in robotics?

The Light Sensor uses a photocell that allows your robot to detect and react to light. With the light sensor, you can program a whole new range of capabilities to your robot. A Programming Kit is needed to change the program in the VEX Controller. Analog input of light levels.
