Granulometric analysis is one of the fundamental parameters that determines the particle composition in sediment samples. This analysis helps determine grain size and the percentage of the individual size fractions in the specific sediment sample.

What is granulometric composition?

the content of granules of varying size in rock, soil, or an artificial product, expressed as a percentage of the bulk or of the quantity of granules of the examined sample.

What is granulometry in image processing?

In mathematical morphology, granulometry is an approach to compute a size distribution of grains in binary images, using a series of morphological opening operations. It was introduced by Georges Matheron in the 1960s, and is the basis for the characterization of the concept of size in mathematical morphology.

How do you describe particle size distribution?

The particle-size distribution (PSD) of a powder, or granular material, or particles dispersed in fluid, is a list of values or a mathematical function that defines the relative amount, typically by mass, of particles present according to size. ... particles into the PSD that is then called a grain size distribution.

What is grain size distribution of soil?

The grain-size distribution for a soil is defined as the relationship between percent passing (by mass) and the particle size. It has also been called the mass-based aggregate size distribution or the ASD. The particle size represents the size of particles that can pass a particular sieve mesh.

Particle Size Analysis (Sieves and Hydrometer)

What is CU and CC in sieve analysis?

Cu – Uniformity coefficient. Cu = D60/D10. Cc – Coefficient of curvature.

How do I know if my soil is well graded?

A well graded soil will have a uniformity coefficient greater than about 4 for gravels and 6 for sands, and a coefficient of gradation between 1 and 3 (for gravels and sands). A soil might have a combination of two or more uniformly graded fractions.

What is rittinger's law?

Rittinger's Law — The energy required for reduction in particle size of a solid is directly proportional to the increase in surface area. ... As noted by Ehmer, there is an inverse relationship between size and strength of particles: as particles get smaller, their strength increases.

What does D10 D50 and D90 mean?

D10: The portion of particles with diameters smaller than this value is 10% D50: The portions of particles with diameters smaller and larger than this value are 50%. Also known as the median diameter. D90: The portion of particles with diameters below this value is 90%.

Why do we do particle size distribution?

Particle size distribution is important for understanding the physical and chemical properties of a material, making it a great cleanliness and quality assurance tool for manufacturers across a variety of industries.

What is Pan in sieve analysis?

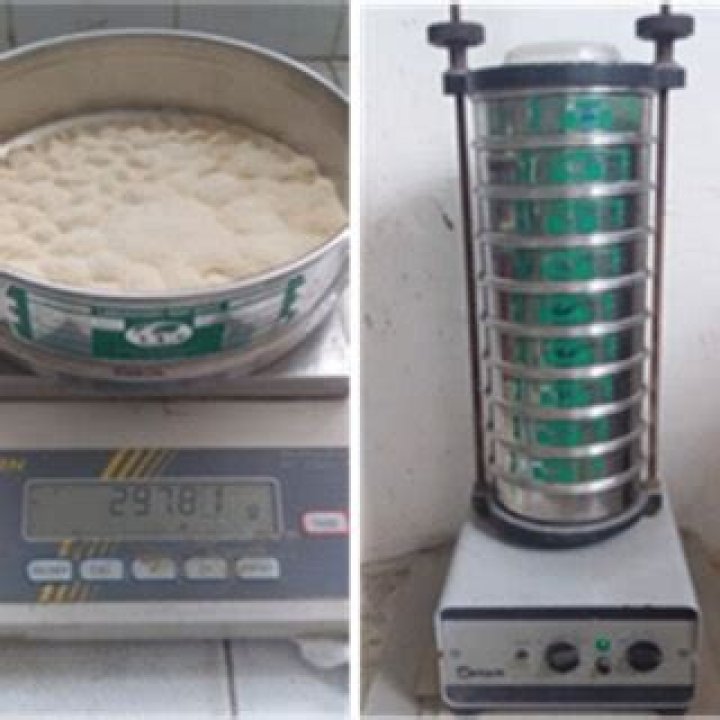

A representative weighed sample is poured into the top sieve which has the largest screen openings. Each lower sieve in the column has smaller openings than the one above. At the base is a pan, called the receiver. ... After the aggregate reaches the pan, the amount of material retained in each sieve is then weighed.

Is sieve A analysis?

A sieve analysis is an analytical technique used to determine the particle size distribution of a granular material with macroscopic granular sizes. ... The finest sized sieve lies on the bottom of the stack with each layered sieve stacked above in order of increasing sieve size.

What is a Granulometer?

Granulometers are particle size analyzers and carry out particle size analysis for a wide range of materials. ... Hence, in various industries, controlling and measuring particle size are important. Particles in the food and beverage industry are in the form of powders, emulsions, or suspensions.

What is granulometric analysis of sediments?

Granulometric analysis is one of the fundamental parameters that determines the particle composition in sediment samples. This analysis helps determine grain size and the percentage of the individual size fractions in the specific sediment sample.

What is D50%?

D50 is the corresponding particle size when the cumulative percentage reaches 50%. D50 is also called as the median particle diameter or median particle size. For example, for a powder sample with D50 = 5μm, it means 50% of particles are larger than 5μm and 50% particles are smaller than 5μm.

What is D90 in particle distribution?

These indicate in each case the size x below which a certain quantity of the sample lies. ... Thus, d10 = 83 µm, d50 = 330 µm, and d90 = 1600 µm means that 10% of the sample is smaller than 83 µm, 50% is smaller than 330 µm, and 90% is smaller than 1600 µm.

What is coefficient of uniformity?

uniformity coefficient (u-ni-form'-i-ty). A numerical expression of the variety in particle sizes in mixed natural soils, defined as the ratio of the sieve size through which 60% (by weight) of the material passes to the sieve size that allows 10% of the material to pass.

What is rittinger's law formula?

Equation (11.3) is known as Rittinger's Law. As the specific surface of a particle, the surface area per unit mass, is proportional to 1/L, eqn. ... This is a very much smaller reduction, in terms of energy per unit mass for the smaller particles, than that predicted by Kick's Law.

What is rittinger's number?

Rittinger's number designates the new surface created per unit mechanical energy absorbed by the material being crushed. Larger value of Rittinger's number of a material indicates its. A. Easier grindability.

What is the purpose of comminution?

Within industrial uses, the purpose of comminution is to reduce the size and to increase the surface area of solids. It is also used to free useful materials from matrix materials in which they are embedded, and to concentrate minerals.

What is CC and CU?

The uniformity coefficient (Cu) and the coefficient of gradation (Cc) are the measures of soil gradation. These coefficients help to classify the soil as well graded or poorly graded ones.

What is a poor graded soil?

A poorly graded soil is a soil that does not have a good representation of all sizes of particles from the No. 4 to No. 200 sieve. A poorly graded gravel is classified as GP while a poorly graded sand is classified as SP. Poorly graded soils are more susceptible to soil liquefaction than well graded soils.

Why is well graded soil good?

Well-graded soils have a good range of all representative particle sizes. They are preferred for construction because it can be easily compacted into dense mass with minimum voids. ... The solid mass is denser because of the interlocking of the particles which enable it to support heavier loads.

What is represent by D10?

Explanation: The D10 represents a size, in mm such that 10% of the particle is finer than D10 size. ... Explanation: Coefficient of the curvature Cc represent the shape of the particle size curve given by CC = (D40)2/D10×D30.
