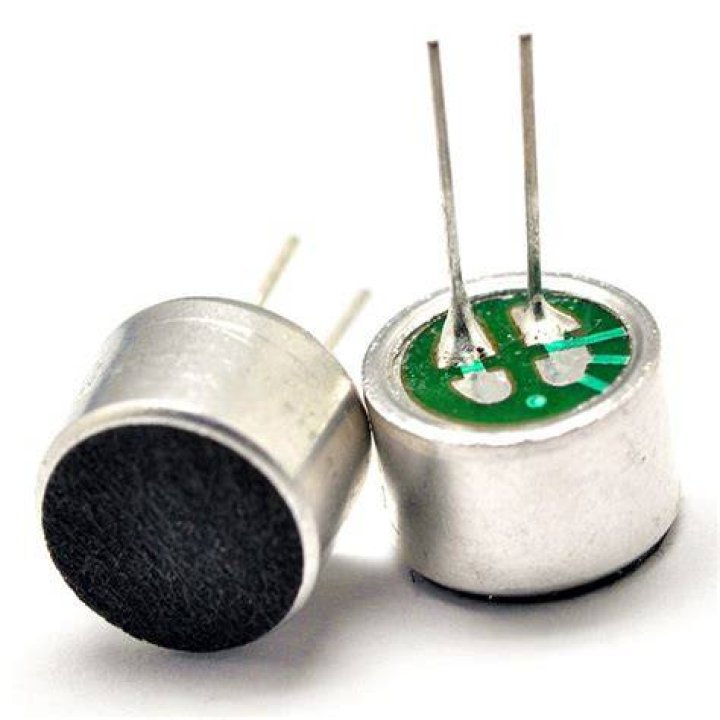

An electret microphone is a type of electrostatic capacitor-based microphone, which eliminates the need for a polarizing power supply by using a permanently charged material. An electret is a stable dielectric material with a permanently embedded static electric dipole moment.

What is the electret microphone used for?

Electret condenser microphones are used to convert sound into an electrical signal and are used in a wide variety of consumer electronic products, including mobile phones, GPS devices, and speech recognition equipment.

What is the difference between an electret and condenser microphone?

This week we'll conclude with condenser microphones. ... The difference between the two is that the DC-biased condenser requires an external power supply to provide polarizing voltage while the electret condenser uses a pre-polarized diaphragm or back plate. Most condenser microphones used today are electret.

Are electret microphones good?

Since then, they have improved dramatically. Today, electret designs are among the very best of all microphones, including those made by top manufacturers like DPA, AKG and Audio-Technica. The difference between a traditional “true,” or capacitor mic, and an electret design is in the way the capsule is polarized.

Is an electret microphone a condenser microphone?

An electret, or back-electret microphone, is one type of capacitor/condenser microphone. All capacitor microphones work by having an electrical charge applied. As the sound waves strike the diaphragm and make it move relative to the backplate, the electrical value of the capacitor changes.

Electret Microphones 101

Which is better condenser or dynamic mic?

The difference between a dynamic and a condenser microphone is a dynamic microphone is better for capturing loud, strong sounds (drums or loud vocals), particularly in a live setting, whereas a condenser microphone is used to capture more delicate sounds and higher frequencies (studio vocals for example), particularly ...

What is electret power?

An electret microphone is a type of electrostatic capacitor-based microphone, which eliminates the need for a polarizing power supply by using a permanently charged material. ... The polar molecules of the dielectric align themselves to the direction of the electrostatic field, producing a permanent electrostatic "bias".

What is the difference between an electret and dynamic microphones?

In addition, dynamic microphones are relatively unaffected by extremes of temperature or humidity. ... An electret condenser microphone has a permanent charge, maintained by a special material deposited on the backplate or on the diaphragm. Non-electret types are charged (polarized) by means of an external power source.

Do electret condensers need phantom power?

Phantom Power

While the electret condenser microphone doesn't need a power supply to provide polarizing voltage, an FET impedance matching circuit inside the microphone does require some power. This may be supplied by a small low-voltage internal battery or by an external “phantom” supply.

Are condenser mics good?

Condenser microphones, therefore, offer superior sound quality. Of all microphone types, condensers have the widest frequency response and the best transient response (transients are fast bursts of energy, e.g. the attack of a drum or the “pick” of an acoustic guitar).

What signal does the electret condenser microphone produce?

An Electret Condenser microphone (a.k.a Condenser Microphone) is the most common type of transducer that is used to detect or measure sound signals. It functions exactly as opposite of a normal speaker, that is when a sound signal is detected it produces electrical signals.

What is the impedance of an electret microphone?

Output impedance

JIS C-5502 specifies 50,200,250,400 and 600 ohms as standard.

Who uses electret microphone?

Electret microphones enable communication and recording in devices including telephones, smartphones, desktop computers, tablets, headsets, high-performance recording systems, hearing aids, megaphones and more. Due to their proliferation, almost everyone uses this type of microphone on an everyday basis.

How do you make an electret?

1. heat the electret material to the melting point and keep it hot for a while,
2. turn off the heat, heat up the top electrode (I use a heat gun), move it to above the electret material and turn on the high voltage power supply thereby placing an electric field across the electret material,

How do I test my electret microphone?

1. get a power supply, say 5V.
2. connect GND to the - of the mic.
3. connect 5V to a 22k resistor, the other side of the resistor goes to the mic.
4. connect your oscilloscope between GND and the + pin of the mic.
5. start whistling, alter two frequencies.

Are condenser mics more sensitive than dynamic mics?

In general, condenser microphones exhibit a higher sensitivity than dynamic microphones. ... In other words, if the microphone has to handle very high sound pressure levels (SPL), it is best to select a unit with a low sensitivity – whether it is a condenser or a dynamic microphone.

Which condenser microphone is best?

• Rode NTK. Here's one of the nicest Rode mics, or condenser microphones in general for that matter. ...
• Audio-Technica AT2020 USB. ...
• MXL V67G. ...
• Sterling Audio ST55. ...
• Rode NT1-A. ...
• AKG C 214. ...
• Blue Spark. ...
• M-Audio Nova.

Are all condenser mics electret?

Probably ninety-five percent of the condenser microphones on the market are the electret type.

What is electret material?

Electrets are the class of dielectric material containing quasi-permanent electric charge or molecular dipoles, which can generate internal and external electric fields. They are the electrostatic equivalent of a permanent magnet that can store charges for prolonged time, as long as 100 years, in lots of the cases.

Are Laser microphones real?

A laser microphone is a surveillance device that uses a laser beam to detect sound vibrations in a distant object. It can be used to eavesdrop with minimal chance of exposure. ... The minute differences in the distance traveled by the light as it reflects from the vibrating object are detected interferometrically.

What is electret membrane?

An electret is a functional dielectric material exhibiting a quasi-permanent external electrostatic field.

How do electret filters work?

Modern electret filters consist of electrically charged polymer fibers. The electrical charges augment the mechanical removal processes and improve collection efficiency for submicrometer particles. Charged airborne particles are attracted to opposite charges on the media by coulombic attraction.

What is its main disadvantage and how is it eliminated by an electret microphone?

Drawbacks or disadvantages of Electret Microphone

➨They are less sturdy compare to dynamic microphones. ➨Vibrating membrane may wear out in a couple of years. ➨More fragile overall compare to dynamic microphone. ➨The cheap versions of this microphones offer poor quality.
