As adjectives the difference between rhombohedral and triclinic. is that rhombohedral is (crystallography) having three equal axes and oblique angles while triclinic is (crystallography) having three unequal axes all intersecting at oblique angles.

Is rhombohedral and orthorhombic same?

As adjectives the difference between rhombohedral and orthorhombic. is that rhombohedral is (crystallography) having three equal axes and oblique angles while orthorhombic is (crystallography) having three unequal axes at right angles.

What is difference between monoclinic and rhombohedral?

Monoclinic and rhombohedral both belong to primitive unit cell. ... Monoclinic lattive have unequal sides and two faces have angles other than 90º whereas in rhombohedral, sides are equal. and two faces are less than 90º.

What is the difference between hexagonal and rhombohedral?

As adjectives the difference between rhombohedral and hexagonal. is that rhombohedral is (crystallography) having three equal axes and oblique angles while hexagonal is (geometry) having six edges, or having a cross-section in the form of a hexagon.

What is the difference between trigonal and rhombohedral?

As adjectives the difference between rhombohedral and trigonal. is that rhombohedral is (crystallography) having three equal axes and oblique angles while trigonal is symmetrically triangular.

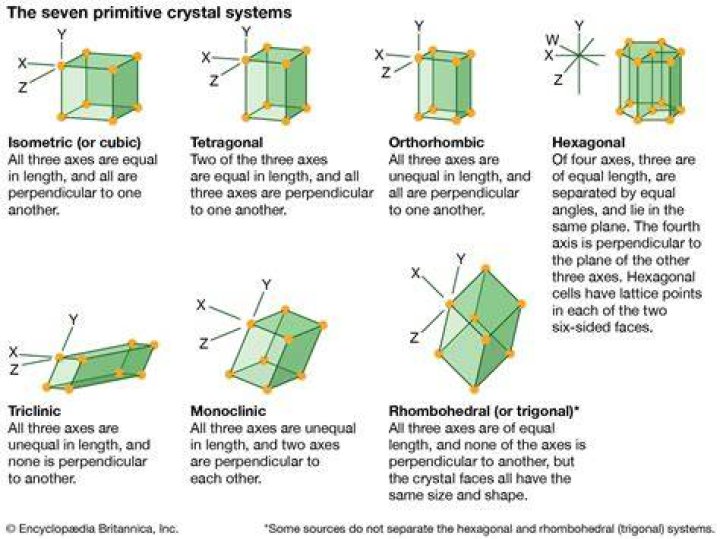

The 7 Crystal Systems!

Is trigonal and triclinic same?

As adjectives the difference between triclinic and trigonal

is that triclinic is (crystallography) having three unequal axes all intersecting at oblique angles while trigonal is symmetrically triangular.

What is triclinic unit cell?

triclinic system, one of the structural categories to which crystalline solids can be assigned. ... The triclinic unit cell has the least-symmetrical shape of all unit cells. Turquoise and other minerals such as microcline crystallize in the triclinic system. This article was most recently revised and updated by John P.

What is rhombohedral structure?

In geometry, a rhombohedron (also called a rhombic hexahedron) is a three-dimensional figure with six faces which are rhombi. It is a special case of a parallelepiped where all edges are the same length.

What is rhombohedral unit cell?

The unit cell is a rhombohedron (which gives the name for the rhombohedral lattice). This is a unit cell with parameters a = b = c; α = β = γ ≠ 90°. In practice, the hexagonal description is more commonly used because it is easier to deal with a coordinate system with two 90° angles.

What does a Triclinic look like?

Also known as the rhombohedron system, its shape is three dimensional like a cube, but it has been skewed or inclined to one side making it oblique. All crystal faces are parallel to each other. A rhombohedral crystal has six faces, 12 edges, and 8 vertices.

What is the relationship between a B C and α β γ in tetragonal and triclinic 5 unit cell?

a = b = c. The relation between axial angles (α,βandγ) is α=β=γ

What are the 7 types of crystals?

These point groups are assigned to the trigonal crystal system. In total there are seven crystal systems: triclinic, monoclinic, orthorhombic, tetragonal, trigonal, hexagonal, and cubic. A crystal family is determined by lattices and point groups.

What is the difference between crystal structure and crystal system?

A crystal structure is made of atoms. ... A crystal system is a set of axes. In other words, the structure is an ordered array of atoms, ions or molecules. Crystal Structure is obtained by attaching atoms, groups of atoms or molecules.

What crystals are rhombohedral?

• Calcite: Of all minerals, calcite is by far the richest in forms.
• Phenakite: Phenakite is a rare beryllium silicate with a hexagonal crystal system. ...
• Dolomite: Dolomite is similar to calcite and sits along side it in limestone.

Which salt crystallizes in rhombohedral?

Formation of anhydrous sodium sulfate crystals after evaporation of the salt solution; dynamically, the dendritic metastable phase III forms first, and then transforms into the stable rhombohedral phase V in solution.

What are 14 Bravais lattice?

Bravais Lattice refers to the 14 different 3-dimensional configurations into which atoms can be arranged in crystals.
...
14 Types of Bravais Lattices

• Cubic Systems. ...
• Orthorhombic Systems. ...
• Tetragonal Systems. ...
• Monoclinic Systems. ...
• Triclinic System. ...
• Rhombohedral System. ...
• Hexagonal System.

Is rhombohedral is primitive?

We can define the rhombohedral lattice in two ways: as a trigonal lattice with additional translational vectors, or as a simple lattice with primitive vectors of equal length making equal angles with one another.

Why is rhombohedral called trigonal?

Dear Student, Trigonal system is also called as rhombohedral system as it belong to a subdivision of hexagonal system, the reason for classification is of its three-fold symmetry of unit cell rotated by 120 forms indistinguisable face from starting point. The pictorial representation of quartz is shown below, Regards.

How many atoms are in a rhombohedral?

Crystal Structure. Bi₂Se₃ has a rhombohedral crystal structure with space group D⁵_3d with five atoms per unit cell. The crystal exhibits a layered structure with a hexagonal lattice within each layer. The hexagonal lattices are stacked in z-direction (trigonal axis) in the sequence (ABCAB) as indicated in Fig.

What is meant by a rhombohedral?

rhombohedral in American English

1. of or having to do with a rhombohedron. 2. designating or of a crystal system having three axes of equal length, none of which intersects at right angles with another.

What are the angles of rhombohedral?

Rhombohedral Lattice. A rhombohedral lattice, also known as a trigonal lattice, has all sides equal. All angles are equal but not a right angle. Here, the angle is 75 degrees.

What is the volume of rhombohedral unit cell?

Lattice 11: Rhombohedral

and the volume of the primitive cell is one-third that of the conventional cell, V=(2√3)a2c.

What is triclinic and monoclinic?

crystal systems. Triclinic: Three unequal axes with oblique angles. Monoclinic: Three unequal axes, two are inclined to one another, the third is perpendicular.

What is an example of Triclinic system?

Pinacoidal is also known as triclinic normal. Pedial is also triclinic hemihedral. Mineral examples include plagioclase, microcline, rhodonite, turquoise, wollastonite and amblygonite, all in triclinic normal (1).

Is triclinic primitive?

Rhombohedral, triclinic and hexagonal crystal systems have only primitive unit cell.
