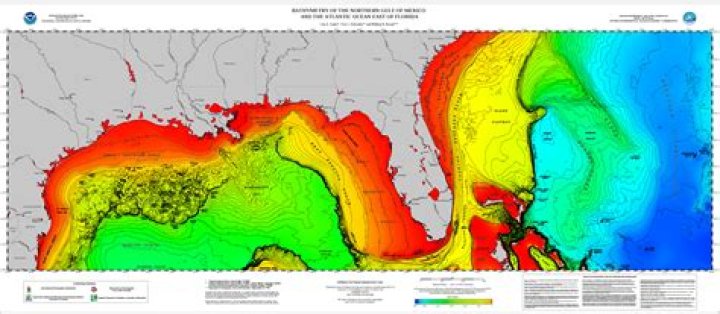

A bathymetric chart is a type of isarithmic map that depicts the submerged topography and physiographic features of ocean and sea bottoms. Their primary purpose is to provide detailed depth contours of ocean topography as well as provide the size, shape and distribution of underwater features.

What does the bathymetric chart do?

Bathymetry is the measurement of the depth of water in oceans, rivers, or lakes. Bathymetric maps look a lot like topographic maps, which use lines to show the shape and elevation of land features. On topographic maps, the lines connect points of equal elevation. On bathymetric maps, they connect points of equal depth.

How do you read a bathymetric map?

These maps use color to indicate water depth. On most bathymetric images of the ocean, colors on the “warm” end of the spectrum – red, orange, and yellow - represent shallower water. As the water deepens, the colors shift through green, blue, and finally into violet. Dry land is usually shown in white.

What is the difference between a topographic map and a bathymetric chart?

Topographic maps show elevation of landforms above sea level; bathymetric maps show depths of landforms below sea level.

How is a bathymetric map made?

The most precise and detailed bathymetric maps are constructed using data provided by multi-beam echo sounding. The multi-beam echo sounder is a special kind of sonar located on board the research vessel that measures the depth simultaneously in several points of the ocean bottom, creating a swath of data.

What is BATHYMETRIC CHART? What does BATHYMETRIC CHART mean? BATHYMETRIC CHART meaning

What is bathymetry survey?

Bathymetric surveys allow us to measure the depth of a water body as well as map the underwater features of a water body. ... Bathymetric surveys allow us to measure the depth of a water body as well as map the underwater features of a water body.

How do I get bathymetry data?

Information and data for those studies is on the USGS Maps of America's Submerged Lands website. NOAA (National Oceanic and Atmospheric Administration) is the primary source of bathymetric data for the world's oceans. See their Bathymetry and Global Relief website.

What is bathymetry and why it is important?

Hydrodynamic models — Bathymetric data is used to create models that can calculate currents, tides, water temperature, and salinity in an area. These models can also be used to predict tides and currents, as well as hazards like coastal flooding and rip tides.

What is bathymetric contour?

Bathymetric (or hydrographic) charts are typically produced to support safety of surface or sub-surface navigation, and usually show seafloor relief or terrain as contour lines (called depth contours or isobaths) and selected depths (soundings), and typically also provide surface navigational information.

What is the difference between hydrographic and bathymetric survey?

Hydrographic surveys utilize the science of measurement and description of features which affect maritime navigation, marine construction, etc. Bathymetric Surveys also show marine depths however Bathymetric surveys typically provide more detailed topology of the bottom surface. ...

What is bathymetry quizlet?

Bathymetry is the measurement of ocean depths and charting shape of on topography of ocean floor. Techniques would be sonar, satellites, submersibles. You just studied 12 terms!

What is Lake bathymetry?

Description. Bathymetric map showing the contours of depth in Park Lake. Bathymetry is used by fisheries management to segregate data collections and analysis, but can also be used by anglers to help find good places to fish.

Is India a part of seabed 2030 project?

It aims to provide the most authoritative publicly-available bathymetry of the world's oceans. ... The IHO is an intergovernmental organization that works to ensure all the world's seas, oceans and navigable waters are surveyed and charted. It was established in 1921. India is its member.

Where does the word bathymetry come from?

Etymology: Bathymetric comes from two Greek words: bathys, meaning “deep,” and metrike, meaning “to measure.”

What is bathymetric gradient?

The bathymetric gradient is one of the most important factors that regulate the distribution of life. ... In this study, we hypothesize that in the deep sea, the bathymetric gradient shapes the benthic ciliate community composition rather than the species richness.

How does bathymetric lidar work?

Bathymetric Lidar is an airborne acquisition technology. As opposed to airborne topographic Lidar, which uses an infrared wavelength of 1,064nm, bathymetric Lidar systems use a green wavelength of 532nm to penetrate the water column for measuring the seafloor.

Who invented the bathymetry?

1). Some of the first recorded measurements of bathymetry were made by the British explorer Sir James Clark Ross in 1840, by the U.S. Coast Survey beginning in 1845 with systematic studies of the Gulf Stream, and by the U.S. Navy, under the guidance of Matthew Fontaine Maury, beginning in 1849.

What are the two major methods used to map bathymetry?

Multiple methods can be used for bathymetric surveys including multi-beam and single beam echo sounder surveys, Acoustic Doppler Current Profiler (ADCPs), sub-bottom profilers, and the Eco-mapper Autonomous Underwater Vehicle, which was advanced by light detection and ranging (LIDAR) datasets.

What is Satellite derived bathymetry?

Satellite derived bathymetry (SDB) is a relatively new technique in hydrography that allows to create nautical charts and bathymetric maps of shallow waters and coastal regions. The biggest advantage is to cover a big area against relatively low investment in time and resources.

How do you read contour lines on an oceanographic map?

1. Index lines are the thickest contour lines and are usually labeled with a number at one point along the line. ...
2. Intermediate lines are the thinner, more common, lines between the index lines. ...
3. Supplementary lines appear as dotted lines, indicating flatter terrain.

Where can I get bathymetric maps?

The Bathymetric Data map viewer has recently moved. It is now hosted at .

What is Isarithmic map?

An Isarithmic map is a type of Thematic map that represents a continuous field using line and/or region symbols to connect places of similar value. ... In general, these maps are used to help visualize continuous data sets by utilizing color, especially hue and value.

How do I download Gebco data?

1. Selecting a region. A region is defined between two latitudes and two longitudes. ...
2. Download formats. You can download your data in netCDF, geoTIFF and Esri ASCII formats. ...
3. Managing your basket. Once you have selected your region and formats, click the 'Add to basket' button. ...
4. Downloading your data.

How do you do a bathymetric survey?

1. Equipment checks and calibration. This is important to make sure equipment is in prime condition when arriving on site.
2. Mobilise all equipment. ...
3. Deployment and equipment setup. ...
4. Sound casting. ...
5. Start the survey. ...
6. Check the data before demobilisation. ...
7. Demobilise. ...
8. Process the data.
