Ashlar is the finest stone masonry unit, generally rectangular cuboid, mentioned by Vitruvius as opus isodomum, or less frequently trapezoidal. ... Ashlar may also be random, which involves stone blocks laid with deliberately discontinuous courses and therefore discontinuous joints both vertically and horizontally.

What is meant by ashlar masonry?

Ashlar masonry is a type of stone masonry which is formed using finely dressed stones of same size, shape, and texture laid together in cement or lime mortar of equal size joints at right angles to each other.

What is ashlar stone used for?

When people talk about ashlar stone they are either referring to a single stone or a collection stones constructed into something. Ashlar stone is used as a type of building / wall stone and alternative to brick or other materials in masonry projects.

Why is it called ashlar masonry?

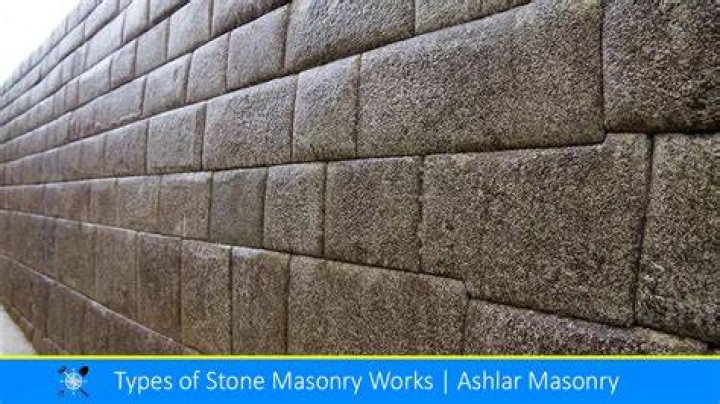

Cultures around the world have known this for centuries. In some places, like Egypt and Peru, people made walls from layers of uniformly shaped stones. This building method is called ashlar masonry. In ashlar masonry, all the stones are cut and worked so they have the same shape, size, and surface texture.

What is ashlar made of?

Ashlar masonry is built with large, regular, squared stone blocks, a method brought to Scotland by the Romans. A range of stone types was used across Scotland in the construction of traditional ashlar buildings, but sandstone was used most often in most areas as it's easy to cut.

Stone Masonry Part 2 ( Ashlar Masonry)

What type of stone is ashlar stone?

Ashlar is a type of masonry which is finely cut and/or worked, and is characterised by its smooth, even faces and square edges. It can also be used to refer to an individual stone that has been finely cut and worked until squared.

How do you lay ashlar stone?

Lay a ribbon of ashlar mortar (approximately 25mm in width on the leading edge of the ashlar faced unit and a bed or normal coarse stuff to bed the irregular meeting faces. Tap down the stone to line and level, excess ashlar mortar will squeeze out. Leave excess in place for several hours.

What is ashlar and rubble?

4. Ashlar Block in Course Masonry. This type is a combination of ashlar masonry and rubble masonry. The faces work of the masonry stones is either rough tooled or hammer dressed stones. The backing of the wall may be done in rubble masonry.

Is code for stone masonry?

For random rubble masonry, the strength value shall be specified on the basis of local experience. NOTE -The sources of information are: for(i) IS 3316 : 1974, for (ii) Bombay PWD handbook: for (iii), (iv) and* (v) DIN 1053 : 1952 'Wall masonry and design execution': and for (vi) IS 3620 : 1979.

Which masonry is combination ashlar and rubble masonry?

Block in course masonry is the combination of rubble and ashlar masonry. The face of the wall is made using ashlar stones that are cut to a specific shape. The rest of the wall's structure behind the face is made using the rubble masonry technique.

What is through stone in stone masonry?

through stones (indicated by arrows) A stone that is set with its longest dimension perpendicular to the face of a wall and whose length is equal to the thickness of the wall.

What is the minimum thickness of wall in stone masonry?

The minimum, thickness of wall in stone masonry can be 35 cm whereas, in brick masonry, walls of 10 cm thickness can be constructed.

What are the types of stone masonry?

• i) Random rubble. • Un-coursed. ...
• ii) Square rubble. • Un-coursed. ...
• iii) Miscellaneous type rubble. . ...
• iv) Dry rubble masonry. ...
• i) Ashlar fine tooled. ...
• ii) Ashlar rough tooled. ...
• iii) Ashlar rock faced. ...
• iv) Ashlar chamfered.

Where is ashlar masonry used?

The process of ashlar masonry construction is expensive and it takes quite a long time to prepare the finely dressed stones and then build and for large imposing structures like churches, fortification walls, castles, etc this masonry is used.

Which is the most superior stone masonry?

Coursed Square Rubble Masonry:

This is a superior variety of rubble masonry. It consists of stones, which are squared on all joints and laid in courses. The stones are to be laid in courses of equal layers. and the joints should also be uniform.

How do you make ashlar masonry?

1. All the stones shall be wetted before placing them in position.
2. The stones shall be floated on mortar and bedded properly in position with wooden mallets without the use of chips or underpinning.
3. The walls and pillars constructed with ashlar masonry shall be carried up truly plumb or battered.

Is Portland a limestone?

Portland limestone is a limestone which was deposited in the latest stage of the Upper Jurassic period. It was first found on the Isle of Portland, Dorset. However, it occurs over a much wider area, including France. The strata are beds of white-grey limestone separated by beds of chert.

How does lime mortar set?

Hydraulic lime sets by reaction with water called hydration. When a stronger lime mortar is required, such as for external or structural purposes, a pozzolan can be added, which improves its compressive strength and helps to protect it from weathering damage.

What is random ashlar?

Masonry of ashlars not laid in continuous regular courses, but formed of dressed stones of different heights and widths fitted closely together, otherwise called broken ashlar, random bond, or random range ashlar. A Dictionary of Architecture and Landscape Architecture.

What tools do stonemasons use?

Stonemasons use a wide variety of tools to handle and shape stone blocks (ashlar) and slabs into finished articles. The basic tools for shaping the stone are a mallet, chisels, and a metal straight edge. With these one can make a flat surface – the basis of all stonemasonry.

How much do stonemasons make?

The average salary for a stonemason in the United States is around $43,280 per year.

What is stretcher and header bond?

In header bonds, all bricks in each course are. placed as headers on the faces of the walls. While Stretcher bond is used for the. construction of walls of half brick thickness whereas header bond is used for the. construction of walls with full brick thickness which measures 18cm.

How can efflorescence be prevented in bricks?

Preventing efflorescence pre- and post-construction

Store masonry materials off the ground and cover them with waterproof sheeting. This will prevent them from absorbing excess water or salts. Ensure building plans include eaves, overhangs, and flashing to reduce the chance water has of entering the wall from above.

What is header in civil engineering?

A header in the construction and engineering world is a beam over an opening that disperses the structural load to the outside of the opening to keep structural integrity. ... The header beams the load from above and disperses it to the outside edges of the opening.

What is the difference between rubble and ashlar masonry?

Ashlar (/ˈæʃlər/) is finely dressed (cut, worked) stone, either an individual stone that has been worked until squared, or a structure built from such stones. ... Ashlar is in contrast to rubble masonry, which employs irregularly shaped stones, sometimes minimally worked or selected for similar size, or both.
