Something like a complex top made of precisely machined metal, the gyroscope is a spinning wheel that may be set within two or more circular frames, each oriented along a different line or axis. The framework can be tilted at any angle, and the wheel—as long as it is spinning—will maintain its position, or attitude.

What makes up a gyroscope?

A mechanical gyroscope essentially consists of a spinning mass that rotates around its axis. ... If a gyroscope is installed on gimbals that allow the mass to navigate freely in the three directions of space, its spinning axis will remain oriented in the same direction, even if it changes direction.

How does the gyrocompass work?

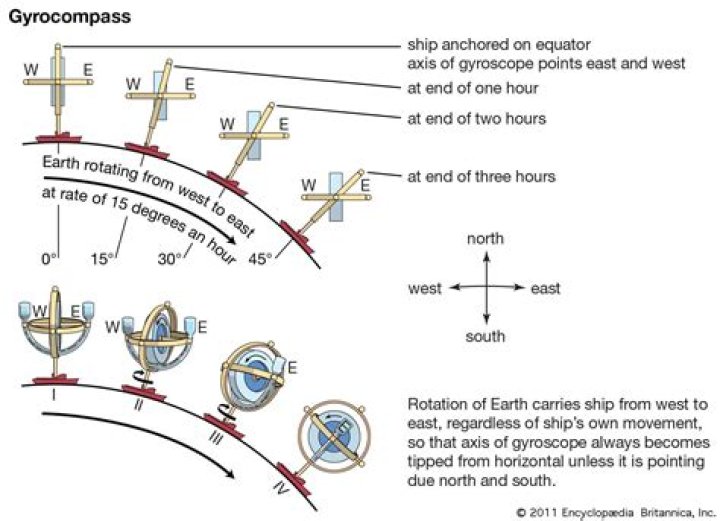

gyrocompass, navigational instrument which makes use of a continuously driven gyroscope to accurately seek the direction of true (geographic) north. It operates by seeking an equilibrium direction under the combined effects of the force of gravity and the daily rotation of Earth.

How a gyroscope becomes a gyrocompass?

To make a gyroscope into a gyrocompass, the wheel or rotor is mounted in a sphere, called the gyrosphere, and the sphere is then supported in a vertical ring. The whole assembly is mounted on a base called the phantom.

Who invented the gyrocompass?

Elmer Ambrose Sperry Sr. Elmer Ambrose Sperry Sr. (October 12, 1860 – June 16, 1930) was an American inventor and entrepreneur, most famous for construction, 2 years after Hermann Anschütz-Kaempfe, of the gyrocompass and as founder of the Sperry Gyroscope Company.

Mechanical Gyrocompass | How Things Work

What is magnetic compass in ship?

Magnetic compass is a primary means of navigation as a direction indicating device, of a ship. It is the ships standard compass. It is fitted above the bridge on the monkey Island at the centre line of the ship. When reading output is needed to other bridge equipments, then a transmitting magnetic compass is fitted.

What are the key differences between the gyrocompass and the magnetic compass?

Gyrocompasses are widely used for navigation on ships, because they have two significant advantages over magnetic compasses: they find true north as determined by the axis of the Earth's rotation, which is different from, and navigationally more useful than, magnetic north, and.

What are the parts of gyrocompass and state their function?

A modern gyrocompass unit consists of a master unit, a control cabinet, a power supply unit a speed unit, and auxiliary electrical transmission and alarm units. The compass card has illumination facility and its brightness is adjustable.

What is a free gyroscope?

A free gyroscope is a wheel, constructed similarly to a flywheel and suspended with 3 degrees of freedom. ... The gyroscope may spin around the spinning axis, and turn around the horizontal axis and the vertical axis.

What is gyroscope sensor?

Gyroscope sensor is a device that can measure and maintain the orientation and angular velocity of an object. These are more advanced than accelerometers. These can measure the tilt and lateral orientation of the object whereas accelerometer can only measure the linear motion.

Can a gyroscope defy gravity?

Gyroscopes can be very perplexing objects because they move in peculiar ways and even seem to defy gravity. These special properties make gyroscopes extremely important in everything from your bicycle to the advanced navigation system on the space shuttle.

Why do gyros need gimbal rings?

The gyro rotor is held in place by rings or better known as gimbal rings. These allow for freedom of motion in three dimensional planes as required by the instruments of the aircraft. Not all instruments will need all planes of movement at the same time, this depends on their function, see the next pages.

What keeps a gyroscope spinning?

Their ability to seemingly defy gravity is a product of angular momentum, influenced by torque on a disc, like gravity, to produce a gyroscopic precession of the spinning disc or wheel.

What is a gyroscope and how does it work?

A gyroscope is an instrument, consisting of a wheel mounted into two or three gimbals providing pivoted supports, for allowing the wheel to rotate about a single axis. ... The wheel responds to a force applied to the input axis by a reaction force to the output axis.

How does a ship's gyroscope work?

How Does a Gyro Stabilizer Work? The gyro stabilizes the boat through the energy it creates spinning a flywheel at high revolutions per minute. The subsequent angular momentum, or stabilizing power, is determined by the weight, diameter and RPM of the flywheel and measured in Newton meters — a unit of torque.

How do you use an astro compass?

To use the compass, the base plate is first levelled with the horizon then pointed roughly to what the user believes to be north. The equatorial drum is then tilted in relation to this base according to the local latitude.

What keeps a gyrocompass pointing in the same direction even when moved or rotated?

A spinning gyroscope, if supported in a gimbaled frame and spun up, will maintain the direction it is pointing toward even if the frame moves or rotates. In a gyrocompass, this tendency is used to emulate a magnetic compass.

How is the needle of a gyrocompass initially oriented north?

A compass needle points north because the north pole of the magnet inside it is attracted to the south pole of Earth's built-in magnet. ... Now if the needle in your compass is pointing north, that means it's being attracted (pulled toward) something near Earth's north pole.

What is an error in a gyrocompass caused by rapid changes in course speed and latitude causing deviation before the gyro can adjust itself?

The gyrocompass can be subject to certain errors. These include steaming errors, in which rapid changes in course speed and latitude cause deviations before the gyro can adjust itself [3].

How is magnetic compass made?

A magnetic rod is required when constructing a compass. ... For example, a magnetised rod can be created by repeatedly rubbing an iron rod with a magnetic lodestone. This magnetised rod (or magnetic needle) is then placed on a low friction surface to allow it to freely pivot to align itself with the magnetic field.

What does a magnetic compass contain?

A compass contains a small bar magnet on a pivot so that it can rotate. The compass needle points in the direction of the Earth's magnetic field, or the magnetic field of a magnet.

Why are magnetic compasses liquid?

The liquid in which the directional system is placed serves two purposes: to reduce the weight on the pivot point, and thereby to minimize friction; and to damp out oscillations from the ship's motion.
